High pressure suspension grinding machine for mine

Great Wall High Pressure Suspension Mill

"Great Wall Make Great Machine"

High pressure suspension grinding machine for mine

High pressure suspension grinding machine for mine Introduce

High pressure suspension grinding machine for mine is designed by our engineers and technical workers, basing on many years industrial mill design, adopting world leading powder making technology. Our active carbon grinding mill adopts numbers of national patents of MTM mill, such as trapezium working surface, flexible connection, roll linked pressure boost, etc.  High Pressure Suspension Mill with Superfine Powder has following feathers:

1.Super Tiny product output size: 0.613-0.033mm
2.Quick-wear parts with long working life
3.New technology and Environment protection

4.Low investment but high capacity

5.Carefully design and elaborate to ensure a satisfied experience

High pressure suspension grinding machine for mine Usage and Application

High pressure suspension grinding machine for mine is widely used in the industries such as mining, building materials, chemical engineering and metallurgy industries for size reduction, dispersion, or specialized needs, powder generation and processing for industrial process. It can grind 400 kinds of material, such as quartz, feldspar, calcite, talc, barite, fluorite, rear earth, marble, ceramics, bauxite, manganese ore, iron ore, copper ore, phosphate ore, iron oxide red, zircon sand, mineral slag, grain slag, cement clinker, activated carbon, dolomite, granite, garnet, iron oxide yellow, bean cake, chemical fertilizer, compound fertilizer, fly ash, soft coal, charred coal, lignite, magnesite, chromium oxide green, gold ore, red mud, clay, kaolin, coke, coal gangue, china clay, kyanite, fluorspar, bentonite, maifanite, rhyolite, greenstone, pyrophyllite, purple sand, shale, basalt, gypsum, graphite, carborundum, heat insulating material, etc.

High pressure suspension grinding machine for mine Structure and Working Principle

Structure

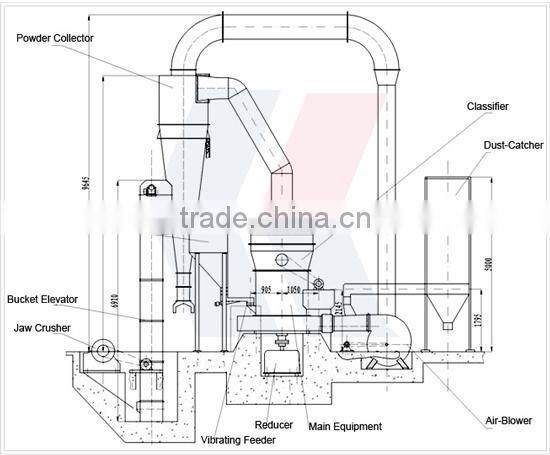

A set of YGM High Pressure Suspension  Mill with superfine powder consist of main frame, decelerator, powder separator, blower, jaw crusher, bucket-elevator, vibrating feeder, hopper, bag filter, pipe-devices, motor and electric control panel, etc.

Operation Principle

Firstly, raw material should be crushed by the jaw crusher to the size specified, then the crushed stuff is elevated into the hopper by the bucket-elevator, through vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. After this, the ground stuff is carried by the air flow from the blower into the separator for screening. The finepowder is blown into the cyclone collector and are poured out through the output-powder valves as the final product and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The airflow system is closely sealed up and circulated under condition of negative and positive pressure.

High pressure suspension grinding machine for mine Advantages and Technical Parameters

Advantages

1. Unique design, compared to other mills with the same power, the capacity of this mill is increased by 20-30%, under the action of the high pressure spring the grinding power is enhanced by 800-1200KG.
2. It has a wide range of adjustable output size, the biggest particle size can be 0.95mm (20 mesh), while the finest size can be 0.033mm (425 mesh), a small amount of the fine product can even be 0.013mm (1000 mesh).
3. Dust cleaning can fully meet national standards.
4. Easy adjusting of the classifier.
5. Grinding roller device is of overlap multilevel seal, which has good sealing performance.

Technical parameters

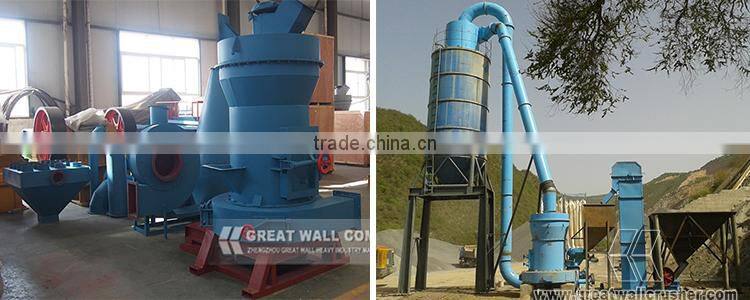

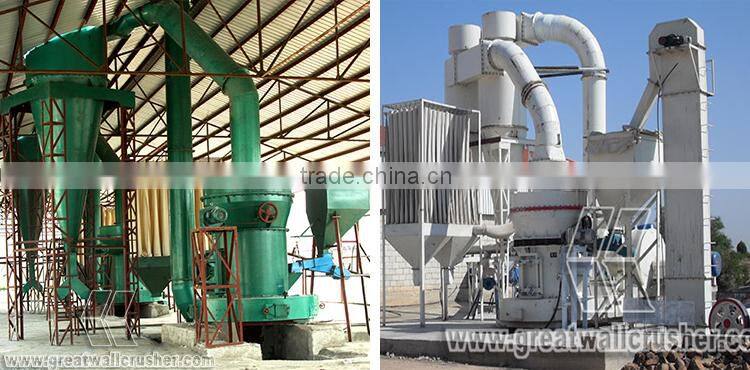

The following shows two High pressure suspension mill production lines. The first picture shows the calite grinding which exporeted to Philippine. Our engineer went to Philippine for technical gudance and took a picture in the production.

Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.

Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival

All the products of Great Wall Heavy Industry Company have approved ISO CE certificate.

With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery.  "Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company. During the past years, we stick to "honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.

Cinets' questions and our answers.

Q: “I need a grinding machine, the required capacity is 1.2 tph, and output size is 0.05mm, which type is suitable?

A: According to your requirement, High-pressure suspension mill YGM 65 and YGM 75 are both suitable. The question is how large the raw material is. The maximum feeding size of YGM 65 is 15 mm, while 3R2115 is 20 mm.

Q: “I need grind gypsum to powder, which machine is best ? ”

A: “Both Raymond mill and High-pressure suspension mill are used to grind materials such as: limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, medical stone, rock phosphate, manganese ore, iron ore, glass, ceram, active carbon, carbon black, fireproof materials, heat preservation materials, chemical materials and so on(300 kinds of materials). The question is the needed output size. In general, High-pressure suspension mill is super fine grinding machine, whose output size can reach 0.033mm.

1. We are Manufacturer  (Not Dealer):

All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.

2. If you are new for this business:

We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.

3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:

1. What is the raw material to be processed? And maximum feeding size of raw material?

2. What is the required output size after crushing?

3. How many tons per hour do you want?

Do not hesitate send us inquiry for more details about the High pressure suspension grinding machine for mine.
