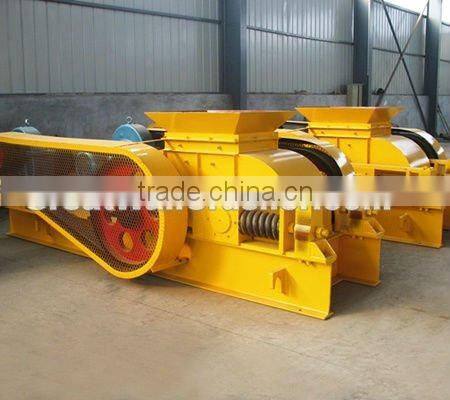

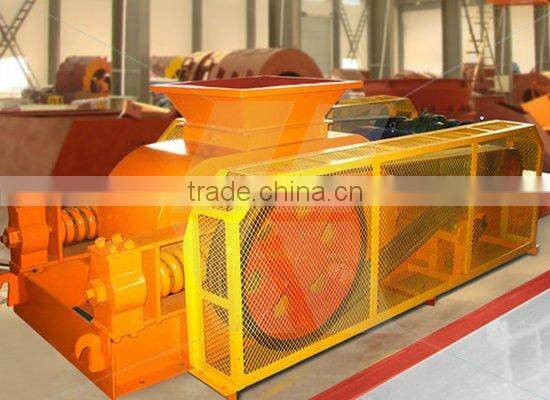

Twin Roller Crusher
- Qingdao Shanghai Tianjin
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Roller Crusher | |
| Capacity(t/h) | 2-140 | Place of Origin | Henan, China | |
| Brand Name | Great Wall | Model Number | PG | |
| Application | Mining material |
Product Description
Specifications
Twin Roller CrusherDjustable product size,
No dust& noise pollution.
Long life of easy wearing parts
low consumption& Cost
Great Wall Make Great Machine
I. Usage and Application
It is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, and so on.
II. Working Principle

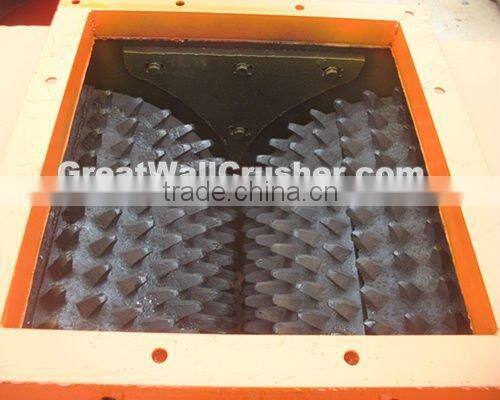

The motor drives the fixed roller and movable roller to work via reducer, V-belts or coupling. Materials are put into the space between the two rollers via the feed entrance. As the two rollers inward turning, the input materials are crushed, pressed, ground, and at last come out from the base of the machine.
III. Features
1. Compact structure, low noise and efficient;
2. Easy to install and only need simple foundation;
3. Can adjust the pressure and size easily.
4. Self-protection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity;
5. Low cost maintenance and easy to maintain.
IV. Main Specifications
Model | Feeding Size | Output | Capacity | Motor Power | Weight | Overall Dimension |
2PG400×250 | <35 | ≤2-8 | 2-10 | 2×5.5 | 1.3 | 2110×870×810 |
2PG610×400 | <65 | ≤2-20 | 5-20 | 2×15 | 3.9 | 3510×1420×1030 |
2PG750×500 | <75 | ≤2-25 | 10-40 | 2×18.5 | 9.5 | 4210×1630×1260 |
2PG800×600 | <80 | ≤2-25 | 12-45 | 2×22 | 10.8 | 4505×1780×1320 |
2PG1000×700 | <100 | ≤3-30 | 20-65 | 2×30 | 14.9 | 5310×2175×1595 |
2PG1200×800 | <120 | ≤3-35 | 35-80 | 2×37 | 25.5 | 6290×2270×1870 |
2PG1500×800 | <130 | ≤3-45 | 50-120 | 2×75 | 33.7 | 7460×2410×2290 |
2PG1600×1000 | <150 | ≤3-50 | 60-140 | 2×90 | 41.2 | 8220×2680×2475 |
