4.3 inch(B043A) Push button LCD advertising media player
- 500 Piece / Pieces per Month
- NINGBO
You May Like
-
Rohs Approval 4.3 inch capacitive Android industrial tablet PC advertising player touch screen tablet PC
-
FCC Approval touch screen Android 4.2 all-in-one tablet panel PC manual
-
Interactive multi touch table with touch screen coffee table TB550M game table with touch screen
-
Android interactive touch table Android 55" TB550MA Interactive multi touch table
-
FCC approval Android Multi touch table TB550WA
-
7" Touch Screen LCD advertising shelf player with bar code reader
Product Details
Place of Origin | Zhejiang, China | Brand Name | POPSCREENS | |
Model Number | B043A | Type | TFT | |
Application | Indoor | Panel Size | 4.3" | |
Max Resolution | 480 x 272 | Viewing Angle | 45/45/15/35(L/R/U/D) | |
Pixel Pitch | 0.198(H) x 0.198(V) | Color | 16M | |
Contrast Ratio | (16:9) | Brightness | 260cd/m2 | |
Response Time | 5S | Input Voltage | DC12V, DC12V |
Product Description
4.3 inch(B043A) Push button LCD advertising media player

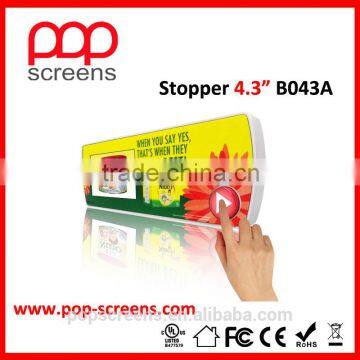

The new Mini Stopper 4.3" B043A
A true liberating battery-powered device that enhances brand image and increase product sales
Push Button Activation
With a blinking button, customers are intrigued to press the button and the advertising messages are 100% surely delivered.
Brand Your Display And Change Whenever
With 4C Euroscale printed front PVC sticker with UV coating, you can brand your display with eye-catching advertising graphic and change the graphic whenever you want.
Cable Free 6 C-cell Battery Powered
Powered by 6 C-cell battery and with up to 3, 360 times activations of a 15 second movie, no electrical cable is required for this battery-powered display. The retailers can place it anywhere in the retail shops without concern for electricity supply.
DC 9-12V Power Input Optional Power Adapter
For retailers in need of continuous power supply, we have the solution. Take out the battery box from the device, and the retailers can connect the device with a normal DC power adapter for continuous power supply.
Selectable Playback Mode
There are 2 playback mode (M1,M2) selectable. Under M1 mode, the device will maintain in stand-by mode with button blinking until the button is pushed and advertising video clips or image slideshows will be displayed for one-time from SD card; Under M2 mode, while the advertising video clips or image slideshow plays in a continuous loop, when customers push the button, a second group of videos or slideshow will be activated
Adjustable And Secure Shelf Mounting Solution
Each retail shop has its own types of shelves. We’ve taken those differences into consideration and developed a unique adjustable and secure mounting system with a lifting range of 48MM. Adding our anti-thef cable system, the retailers can be rest assured that the device would be safely and strongly mounted on the shelf.
SD Card Storage And Playback
We do not use built-in flash memory, because flash memory has a failure rate. We use changeable SD card (with a cover for protection), so that not only the retailers can choose different memory size, but also the retailers can change the SD card if the card fails after certain time of use.
Direct USB Acess For Auto Content Update
By simply inserting a USB key into the device, the media files in the device can be updated automatically. The retailers do not have to open the SD card cover.With a secure file required in the USB key, we are sure that only authorized person is able to change the contents in the device.
Quick Button Control
Worry about losing remote control This would not be the case for our Mini Stopper. With our uniquely designed 5 quick control buttons on the back, the retailers still can set up the display parameter of colors, brightness, contrast, adjust the volume.
Tech Spec
Panel | Screen Size | 4.3inch | ||
Active Area | 95.04(H) x 53.86(V) | |||
Resolution | 480 x 272 | |||
Pixel pitch | 0.198(H) x 0.198(V) | |||
Brightness | 260cd/m2 | |||
Contrast Ratio | (250:1) | |||
Aspect Ratio | (16:9) | |||
Viewing Angle | 45/45/15/35(L/R/U/D) | |||
Power | By battery | Powered by regular 6 C-cell battery(up to 14-hour playing time and up to 3,360 times activations of a 15 second movie) | ||
By power adaptor | DC 9V, 1A | |||
Important notice | C-cell battery and power adaptor cannot be used at the same time; Otherwise there is a risk of burning the battery | |||
Quick control buttons | Quick Control Buttons(on the back) | MENU, +, -, VOL+, VOL- | ||
Button Functions | Ajust the display colors, brightness and volume | |||
Content Storage and update | Content Storage | SD card | ||
Content update | USB key (auto conten update by USB key / setting up a "pop" folder in the USB key , copy the media files into the USB key and plug the USB key into B070A) | |||
Audio | Built-in stero speakers | 1.5W *2 | ||
Volume control | by remote control | |||
Media support | Video | MPG, AVI, DVIX, XVID | ||
Image | JPG, BMP | |||
Audio | MP3 | |||
Software function | Playback Mode 1 | Put the switch at "M1": Once connected to power, the button would be blinking while the device is in stand-by mode; Once the button is pressed, the button stops flashing and all the media files in the SD card would be played for one time; After playback, the LCD player would enter into the standby mode automatically while the button is still flashing | ||
Playback Mode 2 | Put the switch at "M2": There is 2 folder in the SD card, folder 0(=default folder) and folder 1: Once connected to power, the button would be blinking and the device will play in loop the media files in folder 0. When press the button(button stops blinking), playback the media files from folder 1 for one time, and then go back to loop playback the media files in folder 0 with button blinking | |||
General information | Case Material | High-quality ABS case | ||
Case Color | Standard color: white(Customized color upon request) | |||
Front PVC sticker | Front PVC sticker for customized artwork printing | |||
Flashing button | Activation flashing button in standard red color / customized flashing button color upon request | |||
Storage Temp | (-30 -- 80 degree) | |||
Working Temp | (-20 -- 70 degree) | |||
Storage/Working Humidity | (10 -- 90) | |||
Dimension | 260 x 90 x 31mm(w/o battery box)/260 x 90 x 97mm(w battery box) | |||
Weight | 0.27kgs | |||
Weight Shelf Clip B001(without battery box) | 0.31kgs | |||
Weight Shelf Clip B002(Fix behind battery box) | 0.35kgs | |||
Accessories | Shelf Clip B001(optional), Shelf Clip B002(optional), user manual, Power adapter(optional) | |||
Certificates | CE&Rohs |
