CE approval Interactive public touch panel industrial screen kiosk 55" IR (ST550A-PD-TS)
- 100 Piece / Pieces per Month
- NINGBO
You May Like
-
55"(ST550A-PD) Smart digital Android multi touch screen kiosk
-
Android 47" IR Touch(ST470A-PD-TS) multi Interactive totem touch kiosk
-
Android Kiosk Totem 47" lcd ST470A-PD indoor reception signage floor stand digital signage
-
Battery powered digital signage player LCD advertising player 4.3inch(B043A) backpack
-
Push button LCD media player 7" lcd advertising player
-
4.3 inch(B043A) Push button LCD advertising media player
Product Details
| Place of Origin | Zhejiang, China | Brand Name | POSPAD | |
| Model Number | ST550A-PD-TS | Type | Other, LED Panel with IR touch panel | |
| Application | Indoor | Panel Size | 55" LED | |
| Max Resolution | 1920 x 1080 | Viewing Angle | 178/178 | |
| Pixel Pitch | 0.630mm x 0.630mm | Color | 16.7M | |
| Contrast Ratio | 16:9 | Brightness | 500 | |
| Response Time | 5S | Input Voltage | AC100-240V, AC100-240V |
Product Description

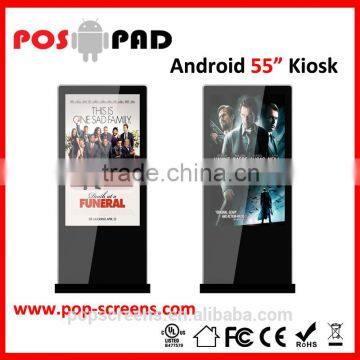

The POSPAD Android kiosk 55" ST550A-PD-TS
Built for retail and public use
With integrated smart software and powerful hardware, the kiosk is thoughtfully designed for commerical use in retail shops, running 24/7.
Powerful hardware, faster than ever
The main PCB board of our Android kiosk is featured with industrial-grade components made for running 24/7 for professional use, and granted with 3-year warranty. Thanks to its state-of-art hardware achitecture, our Android kiosk is totally distinguished from other low-performance consumer tablets, and even graphic-intesive Apps launch instantly, and run fluid and lifelike.Our Android kiosk is both offered in Rockchip dual core chip RK3066 and quad core chip RK3188, to meet different clients' requirements.
Integrated X-filer smart software, APP Lock ! Website Lock !
* Easy setup of any app/website installed on the POSPAD as
the default auto start app
* Allow users to access Allowed APK or Website only, and block the rest
* Supports Full-Screen Browsing for better User Experience
* Password protection for exiting the Full-Screen Browsing Experience
* Auto SD card content update by USB key
* Auto power on/off at designated time
* Optional motion sensor function
* Compatible with third-party CMS
Android KitKat 4.4 OS, license free
Android KitKat 4.4 OS applies new processing architecture, further optimizes dual core/quad core processor and improves hardware performance.Our Android kiosk can be installed with multiple applications downloaded from Android Market, to realize different customized demands.Our Android kiosk can be always updated to the latest Android OS
High-quality tempered glass
multi-touch panel
The kiosk is featured with IR multi touch panel, with the most accurate and consistent touch sensing capabilities. The IR touch panel consists of a touch frame which is installed in front of the panel and integrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame.For retailers who needs a better touch sensbibility and performance, we offer the flexibity of capacitive touch panel for our Android kiosks.
Play Full HD video smoothly, support Flash&HTML5
The kiosk plays full HD 1080P videos smoothly, and is compatible with 480P and 720P videos in all kinds of formats: TS, H.264, WMV, MPEG4, etc.The kiosk supports Adobe Flash 11.0 and HTML5 animation technology, and can easily access dynamic webpage, and on-line vides or games..
The most equipped retail Android Kiosk Wi-Fi and optional 3G connections, direct RJ45 port 2MP/5MP front camera, bluetooth, HDMI output
Tech Spec
| Panel | Screen Size | 55" LED | ||
| brand | LG | |||
| Touch Panel | IR touch panel | |||
| Resolution | 1920 x 1080 | |||
| Pixel pitch | 0.630(H) x 0.630(V) | |||
| Brightness | 400cd/m2 | |||
| Contrast Ratio | (1600:1) | |||
| Aspect Ratio | (16:9) | |||
| Viewing Angle | 89/89/89/89 | |||
| Hardware & OS | CPU | RK3066 Dual Core | ||
| Main Frequency | Cortex-A9 Up to 1.6GHz | |||
| GPU | Quad-Core 2D/3D OpenGLES2.0(AMD Z430)/OpenVG1.1 | |||
| RAM | 1GB (2GB optional) | |||
| Flash | 4GB (16GB optional) | |||
| OS | Android 4.1.1 | |||
| I/O ports | 1 x RJ45,2 x USB 2.0,1 x USB 1.0,1 x SD card slot,1 x 3G Sim card slot | |||
| Smart Software X-Filer | Easy setup of any app installed on the POSPAD as the default auto start app | |||
| Full screen display mode without Android OS menu bar | ||||
| Passsword protection for exiting the default app | ||||
| Alternatively, the media files in the SD card can be set up in loop playback once power on | ||||
| Auto content update by USB key with security file protection | ||||
| Auto power on/off function | ||||
| Data log function | ||||
| Audio | Built-in stero speakers | 10W *2 | ||
| Power | Power input | AC100-240V | ||
| Power consumption | 120W | |||
| Media support | Video(Full HD 1920 x 1080) | AVI,H.263,H.264,VC-1,MPEG-2,MPEG-4,DIVD/DIVX, Real8/9/10, RM, RMVB, PMP, FLV, MP4, M4V, VOB,WMV, 3GP, MKV,ASF, 3G2M4V, MJPEG,RV10 | ||
| Image | JPG, BMP, PNG, GIF | |||
| Audio | MP1,MP2,MP3,WMA,OGG,AAC,M4A,FLAC,APE,AMR,RA,WAV. | |||
| Connectivity | Wired | Ethernet 10/100 | ||
| WIFI | Built-in WIFI 802.11b/g/n | |||
| Bluetooth | Built-in | |||
| 3G(Optional) | HUAWEI MU509 HSDPA LGA Module | |||
| UMTS/HSDPA 2100/900 MHz GSM/GPRS/EDGE 850/900/1800/1900 MHz | ||||
| General information | Case Material | Powder-coated metal case with Aluminum wrapping the 4 sides | ||
| Case Color | Standard color: Black(Customized color upon request) | |||
| Storage Temp | (-15 -- 65 degree) | |||
| Working Temp | (0 -- 50 degree) | |||
| Storage/Working Humidity | (10 -- 90) | |||
| Dimension | 1927 x 837 x 80mm | |||
| Weight | 82kgs | |||
| Certificates | CE&Rohs | |||
