Wedge T15-9LED LED Bulb
Negotiable
/ Piece
100 Pieces(Min. Order)
- Keelung Taiwan
You May Like
Product Details
| Place of Origin | Taiwan, China | Model Number | Wedge T15-9LED LED Bulb |
Product Description
Wedge T15-9LED LED Bulb
. Wedge base
. Made with 9 LEDs
. Sutiable fo motocyle, car and industril indicator application
. Avaliable colors Red, Yellow, Blue, Green and White
. DC 12V or 24V input
EGTech Technology products Wedge T15-9RT3 13.2V on web
| Wedge TT15-9RT3 13.2V LED Bulb Electrical and Optical Characteristics |
|---|
| Type | Red | Yellow | Blue | Green | White |
|---|---|---|---|---|---|
| LED DIP Type | Round Top 3mm | Round Top 3mm | Round Top 3mm | Round Top 3mm | Round Top 3mm |
| LED Quantity | 9 | 9 | 9 | 9 | 9 |
| Single Intensitv(mcd) | 4850 | 6000 | 2200 | 12000 | 8200 |
| Color Temperature(K) | <=1500 | <=1500 | >=25000 | 7400 | 8800 |
| View Angle(Degree) | 32 | 32 | 21 | 22 | 22 |
| Wave Length(nm) | 630 | 595 | 470 | 525 | X:0.29, Y:0.28 |
| Voltage DC(V) | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
| Current(mA) | 60 | 60 | 60 | 60 | 60 |
| Power consumption(W) | 0.792 | 0.792 | 0.792 | 0.792 | 0.792 |
| Luminance(LM) | 5.3 | 6.7 | 3.2 | 10 | 11.8 |
| Operating Temperature(Degree C) | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 |
| Storage Temperature(Degree C) | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 |
| Dimension(DxH mm) | 15x32 | 15x32 | 15x32 | 15x32 | 15x32 |
| Life Cycle(hrs) | 30000 | 30000 | 30000 | 30000 | 30000 |

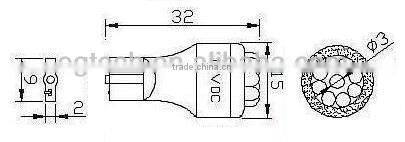

Outline Drawing
