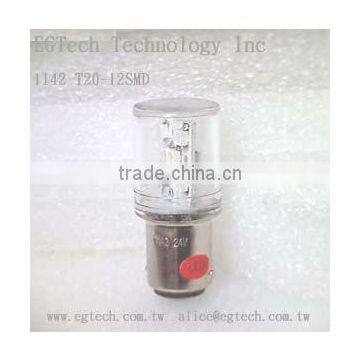

BA15D T20-12SMD LED Bulb
Negotiable
/ Piece
100 Pieces(Min. Order)
- Keelung Taiwan
You May Like
Product Details
| Place of Origin | Taiwan, China | Model Number | BA15D T20-12SMD LED Bulb |
Product Description
T20-12SMD 24V LED Bulb
EGTech Technology products Bayonet 15 dual contacts T20-12SMD 24V LED Bulb on web
| BA15D T20-12SMD 24V LED Bulb Electrical and Optical Characteristics |
|---|
| Type | Red | Yellow | Blue | Green | White |
|---|---|---|---|---|---|
| LED SMD Type | 3528 | 3528 | 3528 | 3528 | 3528 |
| LED Quantity | 12 | 12 | 12 | 12 | 12 |
| Single Intensitv(mcd) | 669 | 609 | 1040 | 2524 | 3748 |
| Color Temperature(K) | 1001 | 1466 | >=10000 | 7534 | 7829 |
| View Angle(Degree) | 177.6 | 177.6 | 177.5 | 178 | 178 |
| Wave Length(nm) | 630 | 596 | 471 | 528 | X:0.3938, Y:0.318 |
| Voltage DC(V) | 24 | 24 | 24 | 24 | 24 |
| Current(mA) | 36 | 36 | 36 | 36 | 36 |
| Power consumption(W) | 0.86 | 0.86 | 0.86 | 0.86 | 0.86 |
| Luminance(LM) | 6.668 | 6.7765 | 10.629 | 28.934 | 39.319 |
| Operating Temperature(Degree C) | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 |
| Storage Temperature(Degree C) | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 |
| Dimension(DxH mm) | 20x45 | 20x45 | 20x45 | 20x45 | 20x45 |
| Life Cycle(hrs) | 30000 | 30000 | 30000 | 30000 | 30000 |

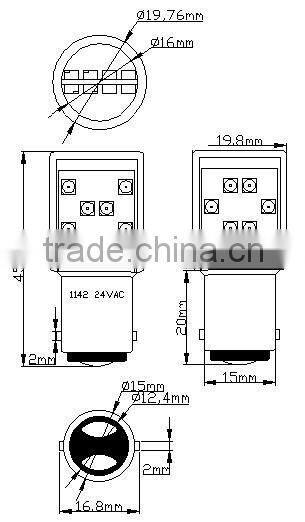

Outline Drawing
