Moving Hydraulic Brick Macking Machine QTM6-25
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 1440 blocks per hour | Place of Origin | Shandong, China | |
| Brand Name | Dongyue | Model Number | QTM6-25 | |
| Voltage | clients local industrial voltage | Power | 9.6 KW/host machine | |
| Dimension(L*W*H) | 3800*1850*2000mm | Certification | ISO,CE,SGS | |
| Warranty | one year free gurantee | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Siements ABB motorlid,hollow
3.hydraulic machine no need pallets
4.ISO,CE,SGS
moving hydraulic brick macking machine QTM6-25
1.Egg laying hydraulic block making machine QTM6-25 introduce
one mobile brick machine. based on foreign advanced technology and process, our company research and development mobile hydraulic brick machine,
the brick machine has great advantage as follow:
Technology advanced: the whole design process consider principle of integrative reconciliation and the internal structure of a rational order, so the machine have great technical advantage,it adopt several new technique, such as box excitation, hydraulic discharge, omnidirectional automatically movement
High quality: the whole machine is adopted high quality steel, and precision welding, the hydraulic system use high-quality components, so it have a longer life and less fault during work
Low investment: high efficiency: this machine have several function features, such as low price,reliable performance, easy to operated, stable, more efficient, high output, low power consumption.the brick it produced have high density, high strength, accurate dimensional, good appearance,so it can reduce the customer's investment and production costs and give fast and large benefit
No need pallet,Hot product in Africa,Middle East
2.Parameter of Egg laying block making machine egg laying block machine QTM6-25
Totall mass | 2600KG |
Rated pressure | 6-8MPa |
Main vibration | Mould vibration |
Vibration frequency | 3500r /min |
Turning method | Hydraulic method |
Molding Cycle | 20-25(s) |
Overall power | 12KW |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
3.Capacity of Egg laying block making machine egg laying block machine QTM6-25
Block type | Block size | Pcs/mould | Pcs/hour | Pcs/day |
Hollow blocks | 400x200x200mm (16x8x8 inch) | 6 | 1000 | 7000-9000 |
Hollow blocks | 400x150x200mm (16x6x8 inch) | 8 | 1300 | 10000-13000 |
Hollow blocks | 400x250x200mm (16x10x8 inch) | 4 | 700 | 5600-7000 |
Hollow blocks | 400x120x200mm (16x5x8 inch) | 9 | 1500 | 12000-15000 |
Solid bricks | 250x175x75mm (10x7x3 inch) | 14 | 2016 | 16128-20160 |

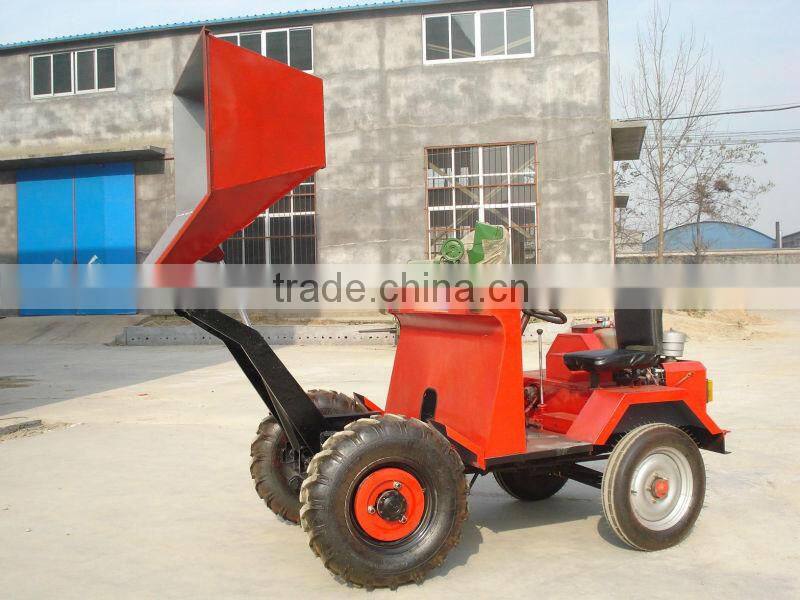

4.Main parameters about material feeding cart
Materai feeding cart | |
Motor type | ZS1100 |
Moror Power | 11KW |
Rated load | 1000kg |
Pointed capacity | 0.78m3 |
length of driving wheel | 1280mm |
Ground clearance | 190mm |
Empty self weight | 1050kg |
Outside dimension | 2620*1500*1960mm |
Geometrical capacity | 0.5m3 |
Wheelbase | 1500mm |
Minimum turning radius | 4m |

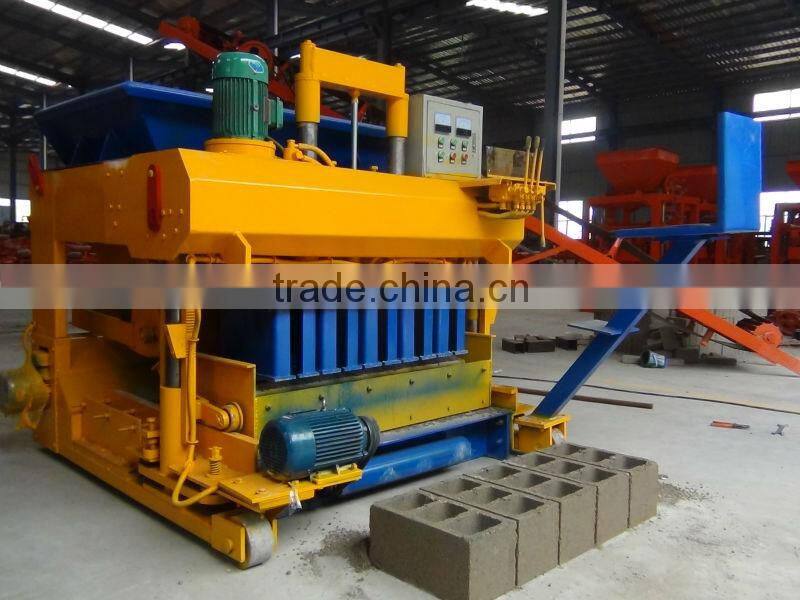

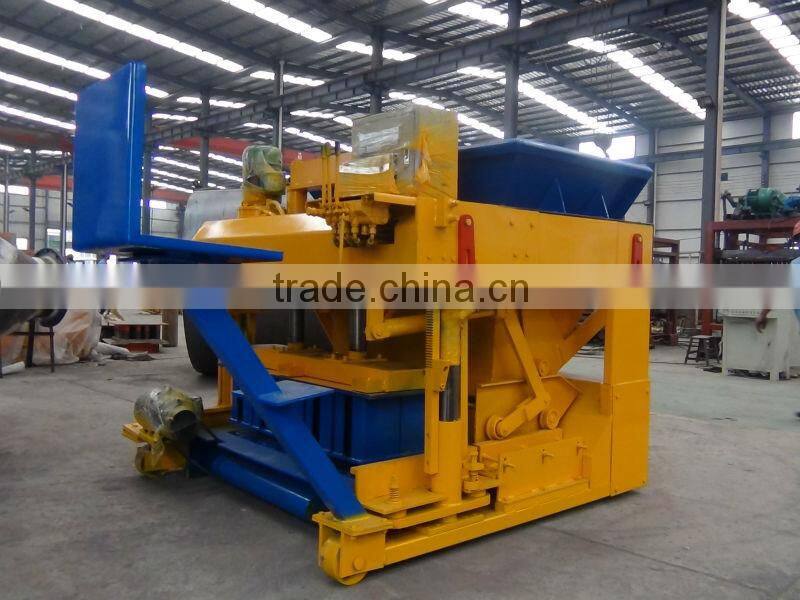

5.Pictures of Egg laying block making machine egg laying block machine QTM6-25

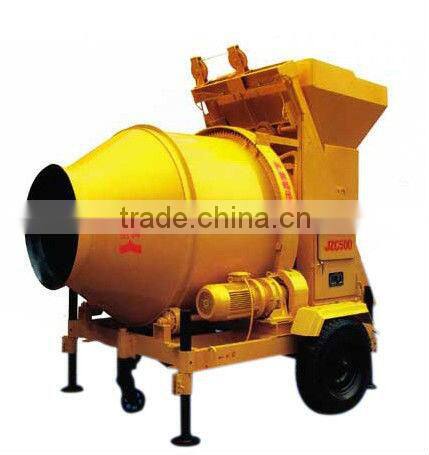

6.Auxiliary equipment

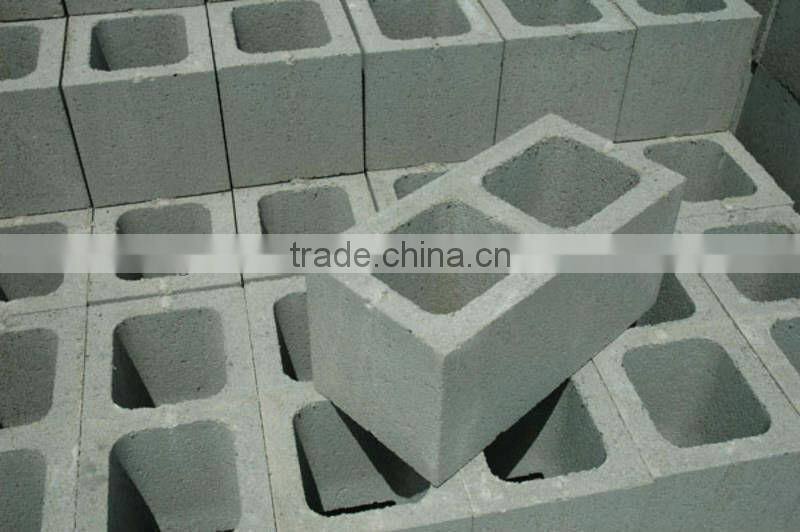

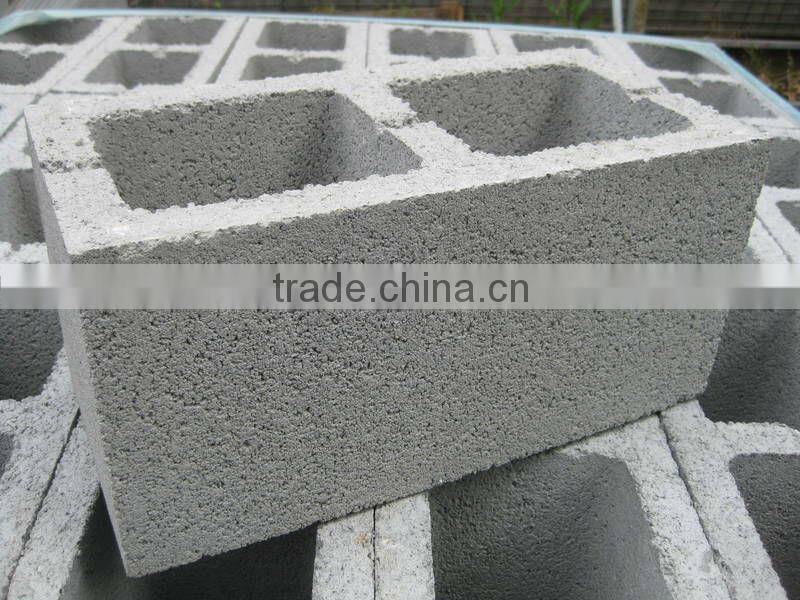

6.Brick sample of Egg laying block making machine egg laying block machine QTM6-25 mobile block making machine
