Hydraulic Quick Coupler for Excavators

FOB Price

US$ 500 - 2,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	HMB
Model Number	HMB02-HMB17

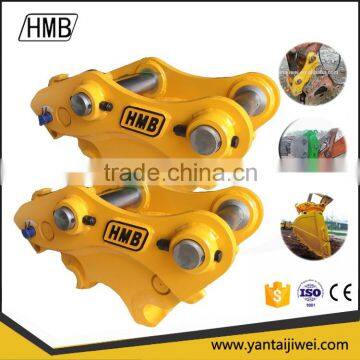

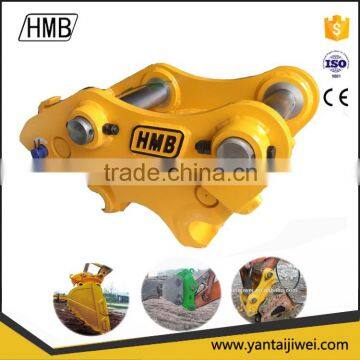

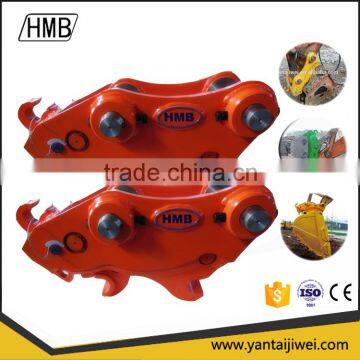

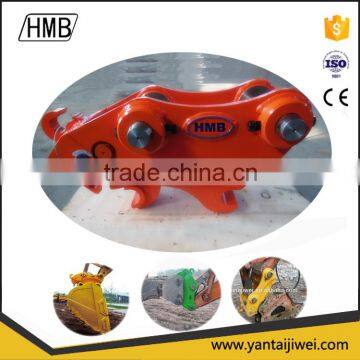

hydraulic quick coupler for excavators

Products model:

MODEL	Unit	Mini	HMB02	HMB04	HMB06	HMB08	HMB08S	HMB10	HMB17
Operating Weight	Kg	30-40	50-75	80-110	170-210	350-390	370-410	410-520	550-750
Overall Length(C)	mm	300-450	520-542	581-610	760	920-955	950-1000	965-1100	1005-1150
Overall Height(G)	mm	225-270	312	318	400	512	512-540	585	560-615
Overall Width(B)	mm	150-250	260-266	265-283	351-454	450-483	445-493	543-572	602-666
Forearm open Width(A)	mm	82-180	155-172	180-205	230-317	290-345	300-350	345-425	380-480
Retractable distance of oil cylinder (E)	mm	95-200	200-300	300-350	340-440	420-510	450-530	460-560	560-650
Pin Diameter	mm	20-40	40-45	45-55	50-70	70-90	90	90-100	100-110
Top to bottom pin distance (F)	mm	170-190	200-210	205-220	240-255	300	320	350-370	370-380
Pin to Pin Center Distance (D)	mm	95-220	220-275	290-350	350-400	430-480	450-505	485-530	520-630
Working pressure	Kg/cm2	30-400	30-400	30-400	30-400	30-400	30-400	30-400	30-400
Oil flow	l/min	‘10-20	‘10-20	‘10-20	‘10-20	‘10-20	‘10-20	‘10-20	10-20
Suitable excavator	ton	‘1-4	’4-6	‘6-9	’10-16	‘18-25	’25-26	‘26-30	30-40

Details:

1). One Body Design

2). Versatility

3).Double Safety System

4).Competitive Price

application

Application:

Certifications
