Home > Products > Quick coupler > China Produce High Quality Excavator Bucket Quick Couplers
China Produce High Quality Excavator Bucket Quick Couplers
- Yantai Qingdao Shanghai China
- T/T Credit Card PayPal
You May Like
-
Tractor Quick Hitch,mini Excavator Quick Hitch ,quick Hitch
-
Volvo Excavator Hydraulic Quick Coupler for Volvo Quick Hitch Hydraulic
-
Excavator Korea Hydraulic Quick Hitch Coupler Matching for 6-8ton Excavator
-
EDDIE Series Hydraulic Quick Hitch/quick Coupler for Excavator
-
SUNWARD Solid Excavator Coupler, Hitch Coupler, Hydraulic Quick Coupler Excavator
-
Excavater Quick Coupler / Hydraulic Tilt Hitch / Hydraulic Quick Hitch for 1-4ton Excavator
Product Details
| Place of Origin | Shandong, China | Brand Name | HMB | |
| Model Number | HMB08 |
Product Description
China produce high quality Excavator Bucket Quick Couplers
China produce high quality Excavator Bucket Quick Couplers

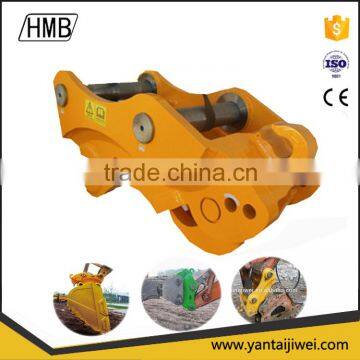

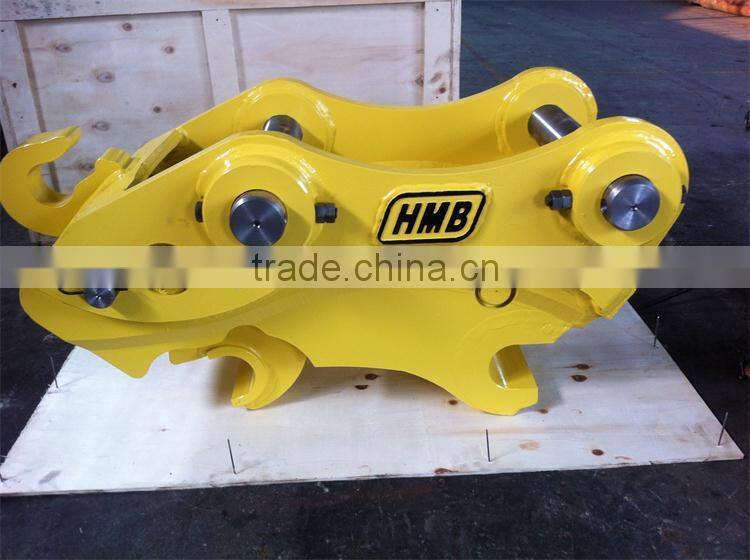

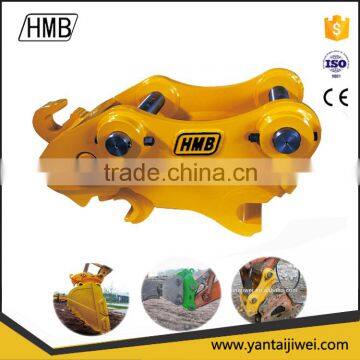

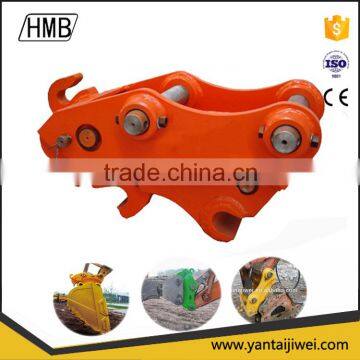

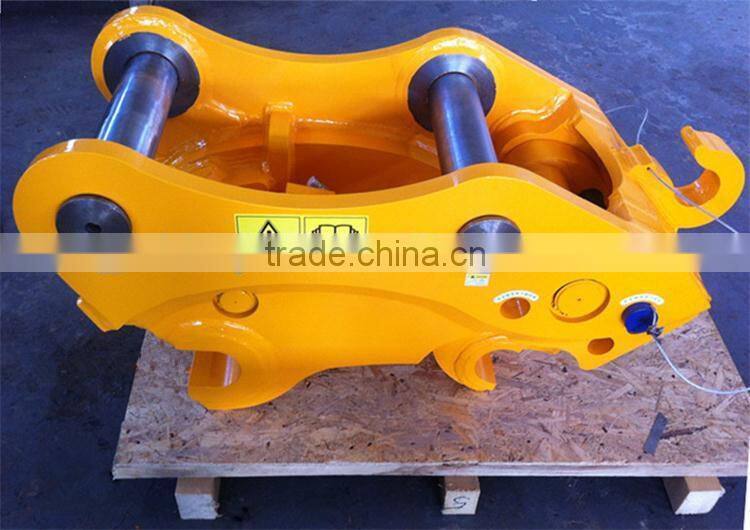

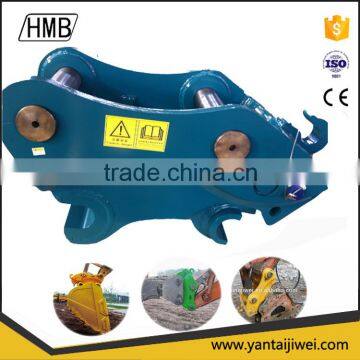

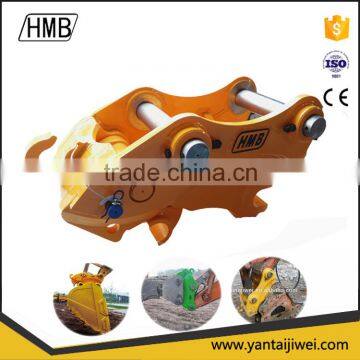

HMB Excavator Bucket Quick Coupler/Quick Hitch

| HMB quick coupler | |||||||||
| MODEL | Unit | Mini | HMB02 | HMB04 | HMB06 | HMB08 | HMB08S | HMB10 | HMB17 |
| Operating Weight | Kg | 30-40 | 50-75 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 |
| Overall Length | mm | 300-450 | 520-542 | 581-610 | 760 | 920-955 | 950-1000 | 965-1100 | 1005-1150 |
| Overall Height | mm | 225-270 | 312 | 318 | 400 | 512 | 512-540 | 585 | 560-615 |
| Overall Width | mm | 150-250 | 260-266 | 265-283 | 351-454 | 450-483 | 445-493 | 543-572 | 602-666 |
| Forearm open Width | mm | 82-180 | 155-172 | 180-205 | 230-317 | 290-345 | 300-350 | 345-425 | 380-480 |
| Retractable distance of oil cylinder | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 450-530 | 460-560 | 560-650 |
| Pin Diameter | mm | 20-40 | 40-45 | 45-55 | 50-70 | 70-90 | 90 | 90-100 | 100-110 |
| Top to bottom pin distance | mm | 170-190 | 200-210 | 205-220 | 240-255 | 300 | 320 | 350-370 | 370-380 |
| Pin to Pin Center Distance | mm | 95-220 | 220-275 | 290-350 | 350-400 | 430-480 | 450-505 | 485-530 | 520-630 |
| Working pressure | Kg/cm2 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 |
| Oil flow | l/min | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | 10-20 |
| Suitable excavator | ton | ‘1-4 | ’4-6 | ‘6-9 | ’10-16 | ‘18-25 | ’25-26 | ‘26-30 | 30-40 |

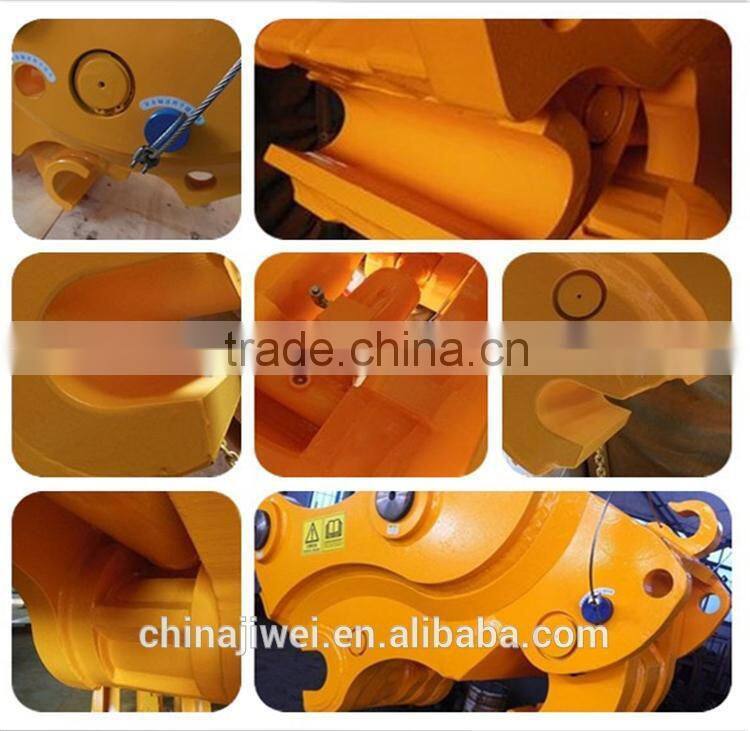

1). One Body Design
2). Versatility

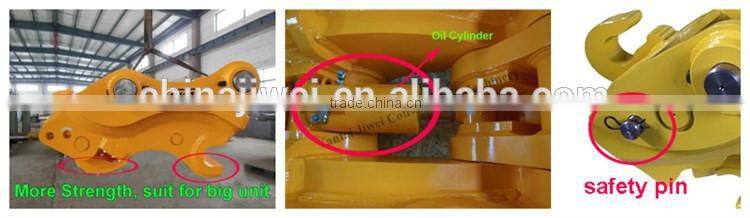

3). Double Safety System
4). Competitive Price

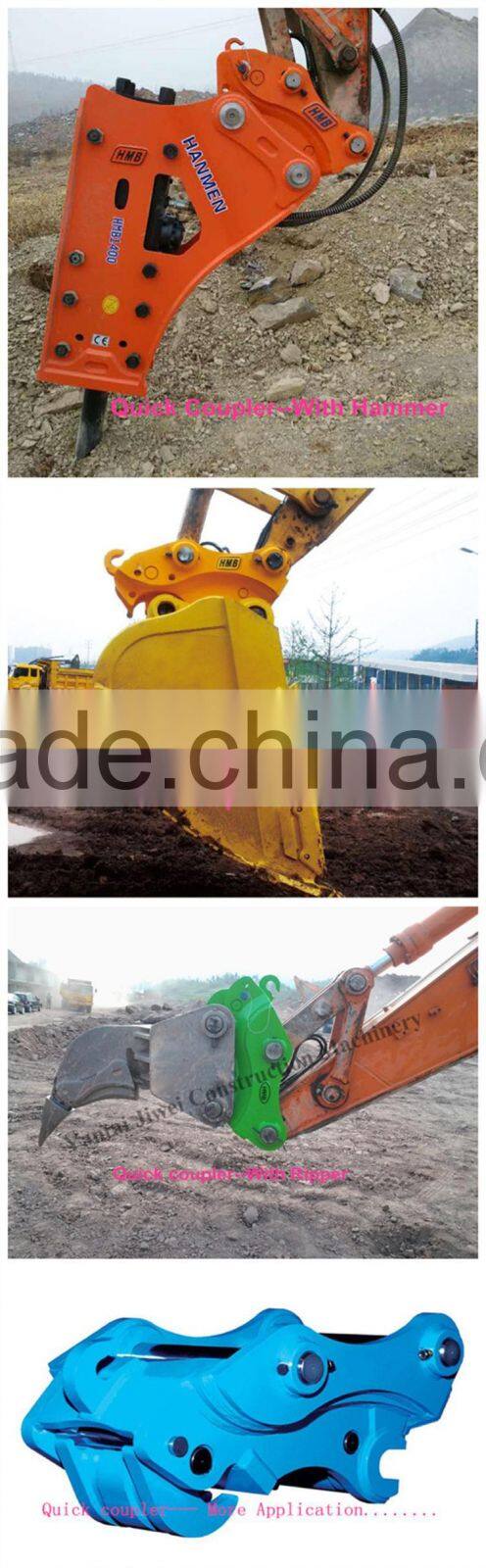

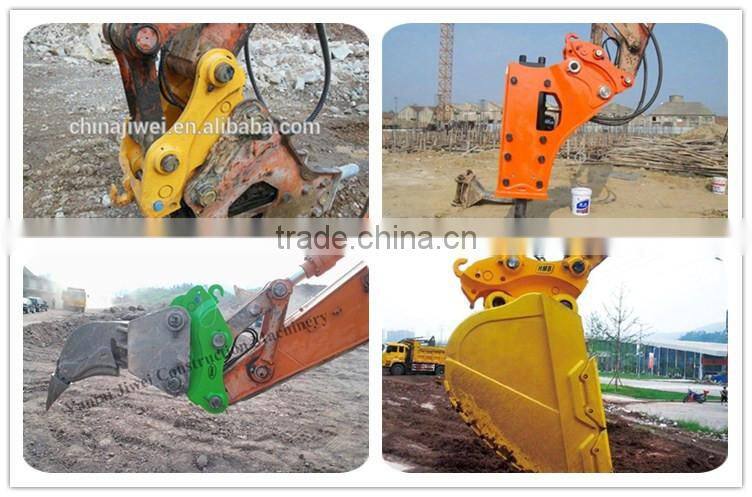

Application:

Packaging Detail: HMB quick coupler is packed by plywooden cases.
Delivery Detail :Within 5-7 days after received the down payment.

Yantai Jiwei Construction Machinery Equipment Co., Ltd was established in 2009. We are one of the leading manufacturer in China. We mainly manufacture hydraulic breaker,quick coupler,excavator plate compactor, earth aguer and other spare parts.
As an original manufacturer, we are able to offer you an attractive price and high quality products.
Our products are widely used for earthmoving ,building demolition,mining,paving road,landscape planting,scrap,dispose waste,sub grade compaction etc.
Jiwei Heavy Industary is striding toward the world first-class enterprise. We are looking forward to establish closed business relation with you on the multiple benefits basic.

1.What color can you produce ?
Red.If you need special, please advise.
2.How about the delivery time ?
Within 7-10 working days after receiving T/T payment.
3.What’s the MOQ and payment ?
MOQ is 1 set.
T/T, L/C, Escrow, west union is accepted. and other terms can also be negotiated.
4.Are you a manufacture?
Yes, our factory was established in 2009.
5.Can you produce according to customers’ design?
Sure,we are professional manufacturer,OEM is available.
6.Which country have you exported?
Canada, Australia, Peru, Egypt, Brazil, Mexico, Iran, South Africa,etc.

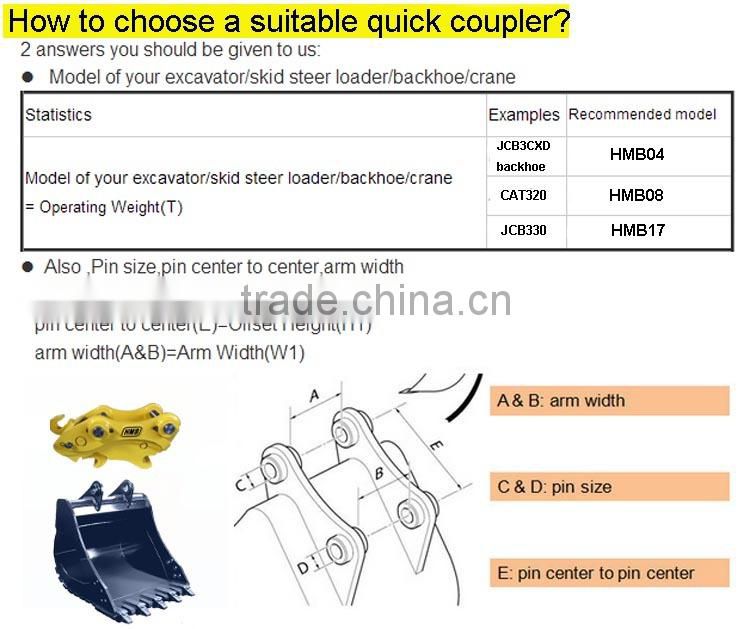

7.Are you sure that your product will fit my excavator?
Our breakers can be adapted to different excavators. Show me your model number, and we can give you best solution.
8.How about the package?
Standard wooden cases, or as customers' demands.
If you are interested in our products,please feel free to contact me.
