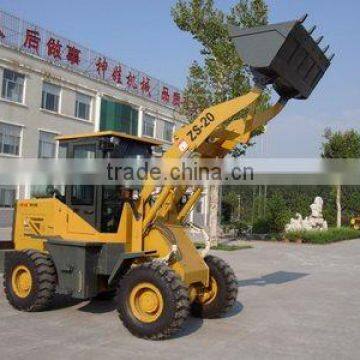

Four Wheel Drived Loader

four wheel drived loader

Quick Details

Packaging & Delivery

Specifications

1 With humanized equipments
2 Low fuel consumption
3.Low noise
4 Hydraulic dual-variable
5.Full hydraulic steering sys

Max.dumping height                       2400mm

Max.dumping distance                    900mm

Max.lifting height                            3200mm

Min.ground clearance                     200mm

Distance between axles                  2130mm

Tread                                           1400mm

Overall dimensions(L*W*H)           4600*1620*2400mm

 Performance characteristics:

Rated   power                                24KW

Rated  revolution                           2200r/min

Working pressure                          16Mpa

Max.flux                                        32ml/r

Total Weight                                  2700kg

Rated loading mass                      1000kg

Min.rotary radius                             3500mm

1.Double-cylinder 33hp motor,with smooth discharge,low noise,less oil consumption,the power transmission system is driving and reliable.

3.Rear cylinder hood type can easy maintenance.5.Ascendant performance of complete appliance,with extraordinary operation efficiency.

4.Fork-type carriage,the stability of the complete appkiance is good,and  the structural strength is high.

6.With which many kinds of optional compinents can be matched to meet requirements of different users.

Update Date:2010-10-19 01:48:24
