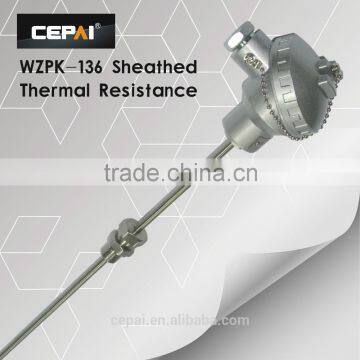

Sheathed PT100 Thermal Resistance
- shanghai jiangsu
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | CEPAI | |
| Model Number | WZPK-136 | Usage | Industrial | |
| Theory | Temperature Sensor | Accuracy | ±( 0.15+0.002|t|) | |
| Temperature Range | 200~500℃ |
Product Description
Armored thermal resistance is temperature sensor with a smaller diameter comparing with the assembly type resistance. And it is easy to bend with a good anti-vibration performance.
Product's Technical Parameters
Pt100: Grade A, Ro =100±0.06Ω
Grade B, Ro =1000±12Ω Graduation No
Model | Graduation No | Temperature measuring range(℃) | Accuracy | Allowable difference t ℃ |
WZPK | Pt100 | 200~500 | A | ±( 0.15+0.002|t|) |
B | ±( 0.30+0.005|t|) |
Thermal resistance with waterproof junction box
Model | Graduation | Measure range ℃ | Accuracy | Thermal response timeT0.5S | Diameter mm | Length L mm | Fixed device |
WZPK-133S | Pt100 | -200~500 | Grade A
or B | ≤3 | Φ3 | Simplex length 100 150 200 250 300 400 500 750 1000
Duplex length: 100 150 200 250 300 400 500 | No fixed device |
WZPK-134S | ≤5 | Φ4 | |||||
WZPK-135S | ≤8 | Φ5 | |||||
WZPK-136S | ≤12 | Φ6 | |||||
WZPK2-135SA | ≤8 | Φ5 | |||||
WZPK2-136SA | ≤12 | Φ6 | |||||
WZPK-233S | ≤3 | Φ3 | Fixed adjustable thread | ||||
WZPK-234S | ≤5 | Φ4 | |||||
WZPK-235S | ≤8 | Φ5 | |||||
WZPK-236S | ≤12 | Φ6 | |||||
WZPK2-235SA | ≤8 | Φ5 | |||||
WZPK2-236SA | ≤12 | Φ6 | |||||
WZPK-333S | ≤3 | Φ3 | Movable adjustable thread | ||||
WZPK-334S | ≤5 | Φ4 | |||||
WZPK-335S | ≤8 | Φ5 | |||||
ZPK-336S | ≤12 | Φ6 | |||||
WZPK2-335SA | ≤8 | Φ5 | |||||
WZPK2-336SA | ≤12 | Φ6 | |||||
WZPK-433S | ≤3 | Φ3 | Fixed adjustable flange | ||||
WZPK-434S | ≤5 | Φ4 | |||||
WZPK-435S | ≤8 | Φ5 | |||||
WZPK-336S | ≤12 | Φ6 | |||||
WZPK2-435SA | ≤8 | Φ5 | |||||
WZPK2-436SA | ≤12 | Φ6 | |||||
WZPK-533S | ≤3 | Φ3 | Movable adjustable flange | ||||
WZPK-534S | ≤5 | Φ4 | |||||
WZPK-535S | ≤8 | Φ5 | |||||
WZPK-536S | ≤12 | Φ6 | |||||
WZPK2-535SA | ≤8 | Φ5 | |||||
WZPK2-536SA | ≤12 | Φ6 |
