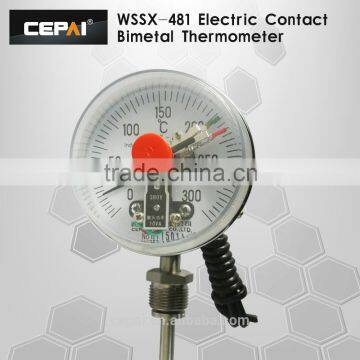

Electric-contact Bimetal Thermometer

Working principle

WSSX series electric contact bimetallic thermometer has electric contact device, a mechanical electric contact. When medium temperature changes, fine axis and steering transmission mechanism on the free end turns pointer and the moving contact, the dial indicates change of temperature, at the time of contact or cut off with the fixed contact (upper and lower limit contact), it makes the circuit system relay and contactor act, then realize automatic control and alarm, it’s in accordance with JB/T8803 1998 standard.

Technical Parameters

Temperature range: -60-500 ℃

Accuracy: 1.5. Contactor action error limit is 1.5tiims of readings basic error. .

Thermometer dial diameter: 60, 100, 150 mm.

Tube length: 75-2000mm.

Tube diameter: 6, 8, 10 (when tube length is 100-1250); 12 (when tube length is 1250-2000mm).

Install thread: M16X1.5, M27X2, G1/2, G3/4, tube and fixed bolt joint are1 cr18ni9ti stainless steel, pressure 6.4 MPa.

Waterproof performance: the shell can withstand spray from 25mm-faucet 5m away (water pressure is not less than 2Kg/m²), no water penetrate the thermometer case within 5minitues.

Housing: IP65

Contact rated power: 10 VA

Contact maximum operating voltage: ~ 380 v or 220 v

Contact maximum working current: 1 a (non-inductive load)

Working voltage should be between 15V and 48V.
