Woodworking Spray Paint Booth With Water Curtain

FOB Price

US$ 6,300 - 20,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, painting room, woodworking paint booth
Substrate	wood	Coating	Painting
Place of Origin	Guangdong, China	Brand Name	Qiangxin
Model Number	QX3000	Voltage	380V 50HZ or customized
Power(W)	7.5KW	Dimension(LWH)	690039002650(mm)
Weight	3-8t	Certification	CE
Warranty	One Year	After-sales Service Provided	Engineers available to service machinery overseas

We are professional leading factory in Guangzhou,China.

Specializing in manufacture kinds of paint spray room system.

And also offering full garage equipments,car care equipment.

Product Description

CE Approved Woodworking Spray Paint Booth With Water Curtain

Advantages:

1.Factory direct sale

2.One year warranty

3.100% inspection before deivery,100% trade assurance protection

4.Advanced stable electric control system

5.Diesel burner heating system(Infrared lamps or natural gas drying can be customized)

6.Installation instruction service

7.Experienced in shipping.

Contact Jessica now for further information:0086 13760700738.

Inside Dimenions	6900×3900×2650(mm)(LxWxH)
Outside Dimenions	7000×5200×4000(mm)(LxWxH)
Entrance Door	Aluminum alloy binding framework(thickness: 1.8mm),1 set side hung door size: 20002000(mm)(WH)
Wallboard	50mm EPS(epispastics polystyrene )insulation material with S=0.426 two side steel panel
Roof	50mm EPS(epispastics polystyrene )insulation material with S=0.426 two side steel panel
Floor	anti-rust galvanized grille plus beam channel steel.
Lighting	Lamp boxes are 45° fixed on upper two side,with 8 groups*3pcs=24pcs 16w energy saving LED lamp
Air Ventilation	2 sets intake air fans,each set parameter:YOW5.6m.1.5kw.12500m3/h 1 set exhasut air fan,parameter:YOW4 m. 3kw.19000m3/n Air duct 3pcs(7007001000,2 pcs straight,1 pc elbow)

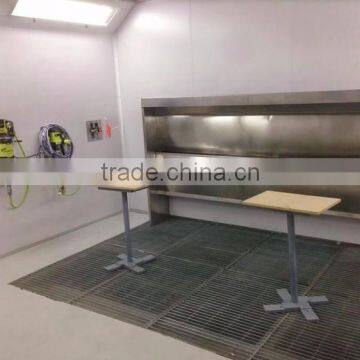

Filteration	-Air inlet with prefilter. -Ceiling equipped with CC-G650type high-efficiency filter,which can effectively filter the 5PM dust particles. -1 set stainless steel 2800*1400(mm)(L×H)with 1 set 0.75KW special water pump
Electric control box	Painting , Breakdown Indicator, Power Switch, Emergency Stop Switch
Voltage Frequency	380V 50HZ three phase
Total power	7.5KW
Remarks	welcome to contact Jessica for latest information~whatsapp:008613760700738 NOTES:we produce this paint booth according to customers' requested dimension and requipments,we hope you can send us this information in your inquiry message.
