QX U-Y35 3.5T Lifting Capacity Scissor Home Garage Car Lift
- Guangzhou
- Credit Card
You May Like
-
QX-3AT Far Infrared Car Paint Heater
-
QX-6AL Paint Booth Heaters Far Infrared Heaters
-
1A Electric Far Infrared Heaters Infrared Baking Lamp
-
2A Far Electric Infrared Baking Lamp Portable Heater for Cars
-
Car Used Movable Infrared Heater Electric Room Heaters 3AT
-
Car Collision Repair Bench Freight Machine Car Body Straightener
Product Details
| Design | Scissor | Type | Other, scissor lifter | |
| Certification | CE | Lifting Capacity | 3500kg | |
| Lifting Height(mm) | 1850mm | Overall Width(mm) | 4000mm | |
| Place of Origin | Guangdong, China | Brand Name | Qiangxin | |
| Model Number | QX-U-Y35 | Warranty | 6 Months |
Product Description
We are professional leading factory in Guangzhou,China.
More than 10 years in manufacturing car paint spray booths.
We also sale automobile repair &maintenance equipments.

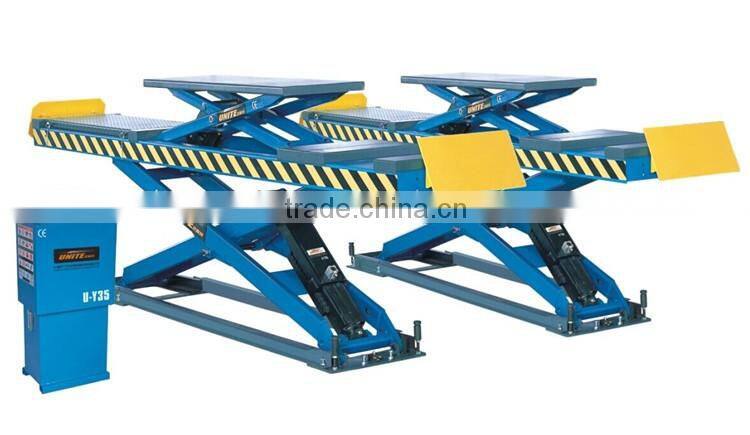

QX U-Y35 3.5T Lifting Capacity Scissor Home Garage Car Lift
This model,which is of a unique design,is an ideal lift.Especially for the repair maintenance,tyre=changing maintenance of various of high-grade cars,middle & small trucks,buses ect.
This type car lift is easy for operation,smooth&reliable working process,high lifting insurance quoriety and durability.
Features:

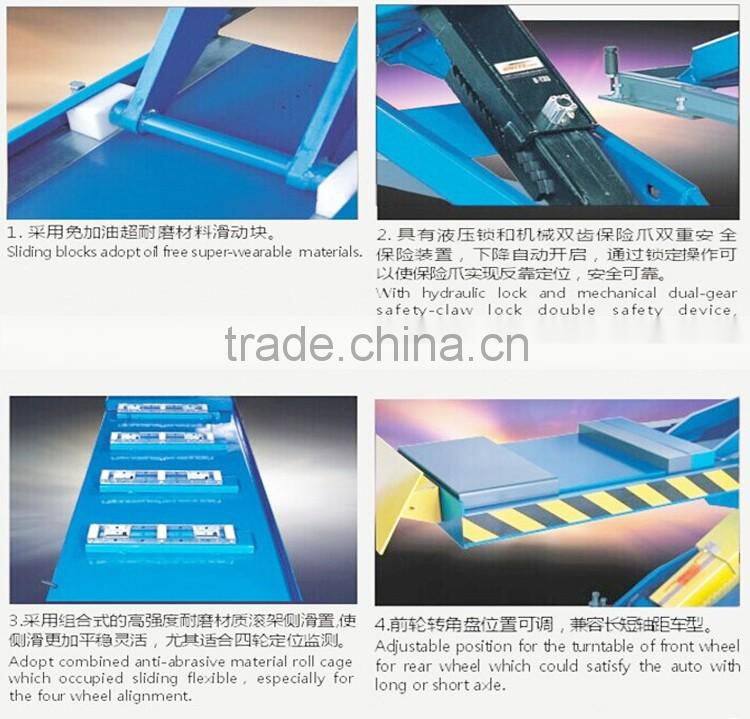

1. Graceful outlook,with concealing structure for the two levels and superior synchronization.
2. The level of the lift can be adjusted in high precision to suit for various kinds of high-precision four wheel alignment.
3. Easy for tyre mount and dismount and chassis maintenance.
4. The position of the front wheel turnttable(optional part) is movable so that the side slide plate can be fit for more cars.
5. The pneumatic double-teeth slf-locking system and the anti-explisive pipe insurance structures are automatic opening when lowering.The sliding black is made by oil free and super-friction materials.
6. Stable and reliable equipment is relayed on imported hydraulic,pneumatic and electrical components.
7. More convenient usage and safer on consumption.
8. With hydraulic lock and mechanical dual-gear safety-claw lock double safety device,automatically open when lowering.By lock operation,can has the safety-claw located adversely,safe&reliable.
Tenical Data:
Main Unit | |
Lifting capacity: | 3.5 T |
Lifting height: | 1850 mm |
Platform dimension: | 4000mm |
Platform width: | 620mm |
| Platform width: | 330mm |
Lifting speed: | ≤55s |
Dropping speed: | ≤55s |
Auxiliary Unit | |
Lifting capacity: | 3.5 T |
Lifting height: | 450 mm |
Platform dimension: | 1400x550x330mm(L*W*H) |
Lifting speed: | ≤55s |
Dropping speed: | ≤55s |
Complete Machine | |
Noise level: | ≤70db |
Air supply: | 6-8 kg/cm2 |
Storage temperature: | -25°C ~ 55°C |
Operating ambient temperature: | 5-40 degree |
Operating ambient humidity: | 30-95% |
Whole machine dimension: | 4500x2040mm(L*W) |
Motor power | 2.2kw |
Voltage: | 220-380 V |

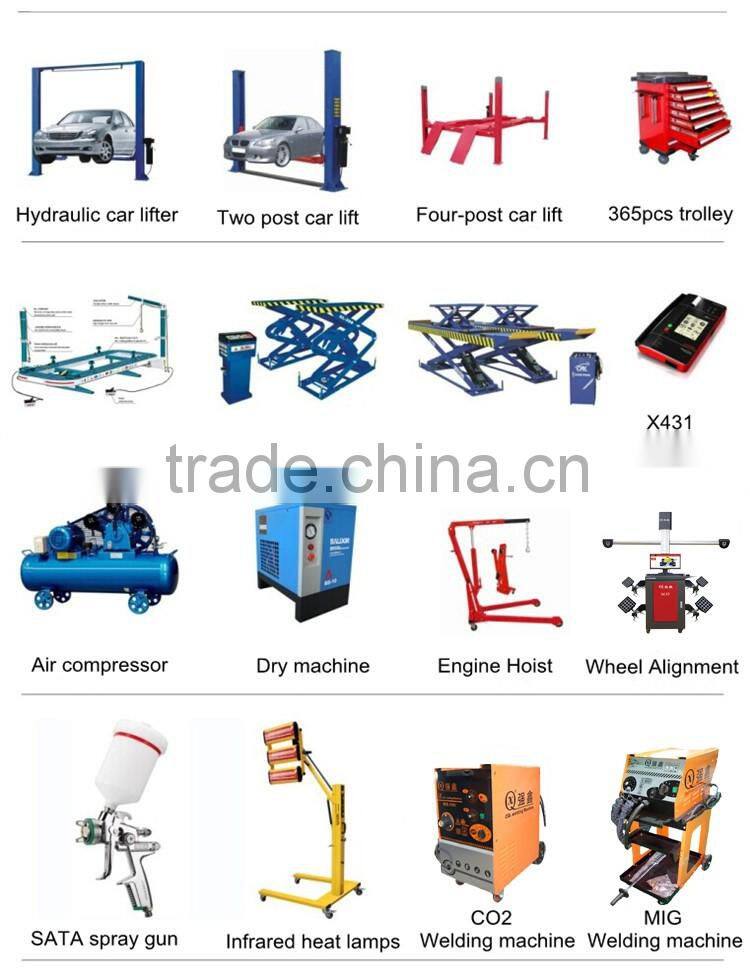

We also provide other workshop equipment such as: four post car lift, tool trolley, car bench,scissor lifter,tyre changer,tyre balancer,A/C machine, car charger ect.
We also manufacture kinds of car spray booth for over 10 years~!!
Workshop equipment:
Car Spray Booths:
