Home > Products > Garage Equipments > Car Alignment Type Four Wheel Aligner Equipment
Car Alignment Type Four Wheel Aligner Equipment
- Guangzhou
- Credit Card
You May Like
-
Car Accident Repair Equipment Car Bench
-
Qiangxin Collision Repair Car Straightening Bench
-
Accident Car Repair Machinery Auto Body Collision Repair System
-
Qiangxin Good Quality Car Repair Body Auto Body Frame Machine for Sale
-
QX Auto Workshop Tools Repair Frame Machine
-
Hot Sale Spray Dryer Spray Drying Equipment
Product Details
| Power | 110V/220V380V | Max. Rim Diameter | 23'' | |
| Max. Rim Width | NO Limitation | Power Supply | 50HZ/60HZ | |
| Balancing Speed | NO Limitation | Max. Wheel Weight | NO Limitation | |
| Place of Origin | Guangdong, China | Brand Name | Qiangxin | |
| Model Number | QX-M30 | Warranty | 12 Months |
Product Description
Car Alignment Type Four Wheel Aligner Equipment
Product features
1. Three-dimension measuremen technology---the measurement technology is based on car body,which is more accurate and stable.
2. Camera measurement system---two cameras work with four targets,which starts revolutionary measurement era.
3.Target disk---no electronic components,replace the traditional electronic sensor and remove the possible device failure caused by circuit.
4. Calibration--- machine only need one RCP calibration after installation,the procedure is simple and no periodic calibration needed.
5. Software system--- simple operation can read all basic wheel alignment data within two minutes.
Advantage:
1. No wiring and electronic components can avoid measurement problem which canse by sensor failure or malfunction.
2. The measurement accuracy will not affected by vehicle and lift platform parallelism.
3. No wheel and rim compensation needed during operation,which improves accuracy,reliability and working efficiency.
Tenical Parameter:
Parameter
| ||||
Items | Front wheel measurement precision | Front wheel measurement range | Rear wheel measurement precision | Rear wheel measurement range |
TOE | ±0.02 | ±20° | ±0.02 | ±20° |
CAMBER | ±0.02 | ±15° | ±0.02 | ±15° |
S.A.I | ±0.02 | ±26° | × | × |
CASTER | ±0.02 | ±26° | × | × |
THRUST ANGLE | × | × | ±0.02 | ±5° |

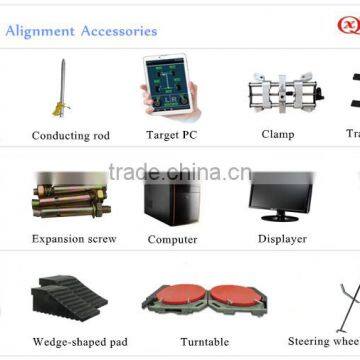

Accessories Parts:
Cabinet |
1pcs |
Pad |
|
Computer Host |
1pcs |
Eccentric Screw & Conduction Rod |
1set |
Computer Display |
1pcs |
Transitional Block |
2pcs/set |
Packing Camera |
X |
Clamp |
4pcs/set |
Printer |
1pcs |
Turntable |
2pcs/set |
Mouse/Keyboard |
1set |
Hanger |
4pcs/set |
Speaker |
X |
Steering Wheel & Brake Lock |
1set |
Pillar |
1pcs |
Wedge-Shape Pad |
2pcs/set |
Camera Beam |
1pcs |
Camera |
2pcs/set |
Target |
4pcs/set |
Manual |
1pcs |
