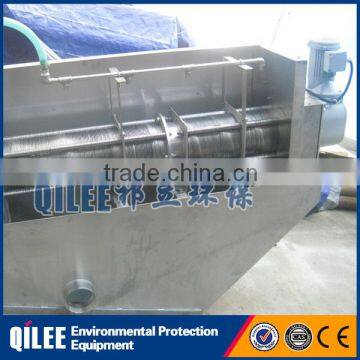

High Efficiency Restaurant Waste Water Treatment Screw Press Separator

High efficiency restaurant waste water treatment screw press separator

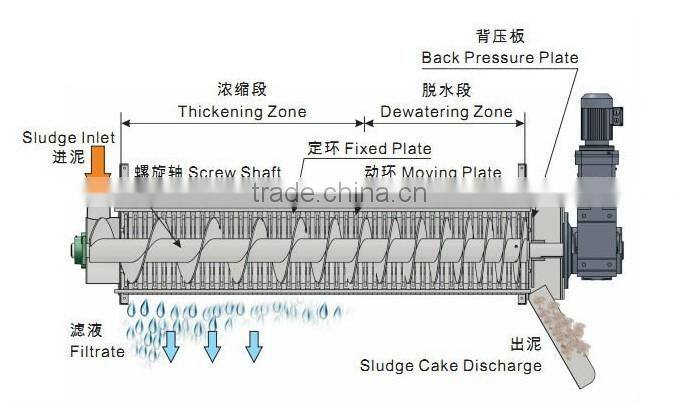

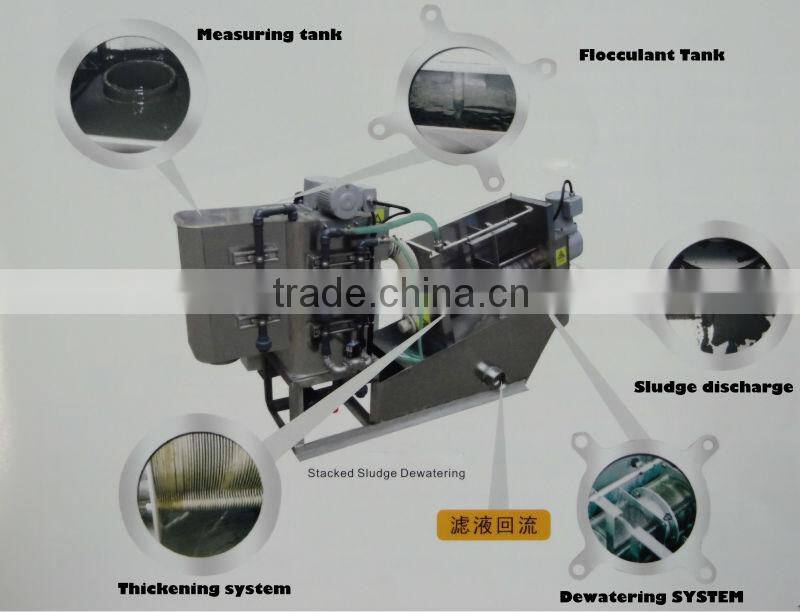

Product Structure of screw press separator

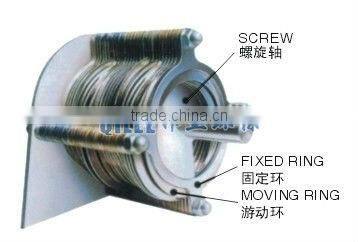

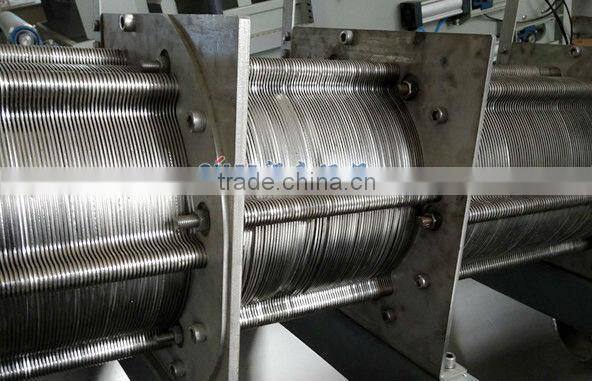

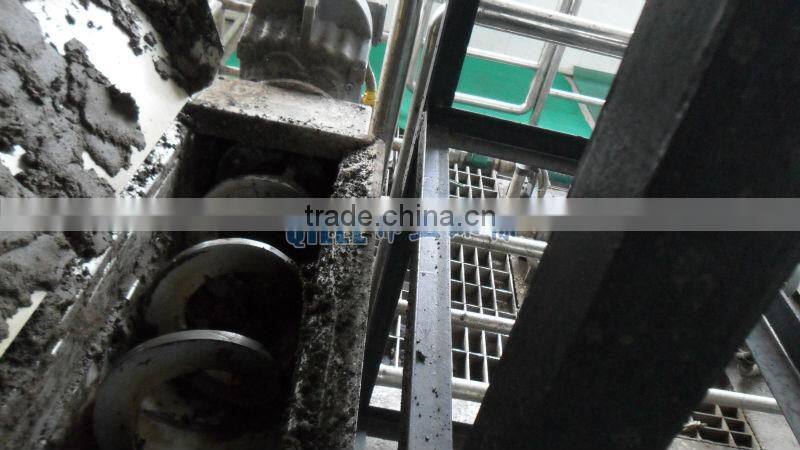

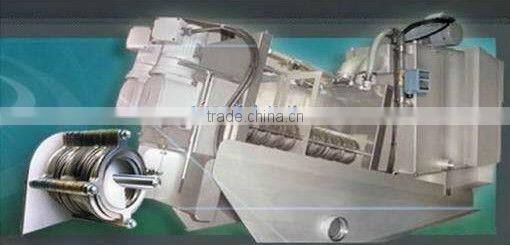

1.The main part of the dehydrator is a filter device that a screw runs through the stacked

   fixed rings and moving ring.

2.The small gaps between fixed rings and moving ring can filter the sludge, and the

   lumenbetween screw and rings is filled with polymer grains. The moving ring transfers

   the sludge to the end of the machine with pressure and extrudes sludge cakes.

3.The running of the screw drives the moving ring to clean the gaps and avoid jam.

Product Features of screw press separator

1.Suitable for sludge dewatering of high/low consistency. When deal with low

   consistency sludge(2000mg/L), there is no need to build a thickening tank, storage

   pool. Reduce the cost and the release of phosphorus and Anaerobic stink.

2.There is no need to worry about jam up. Reduce the cleaning water consumption.

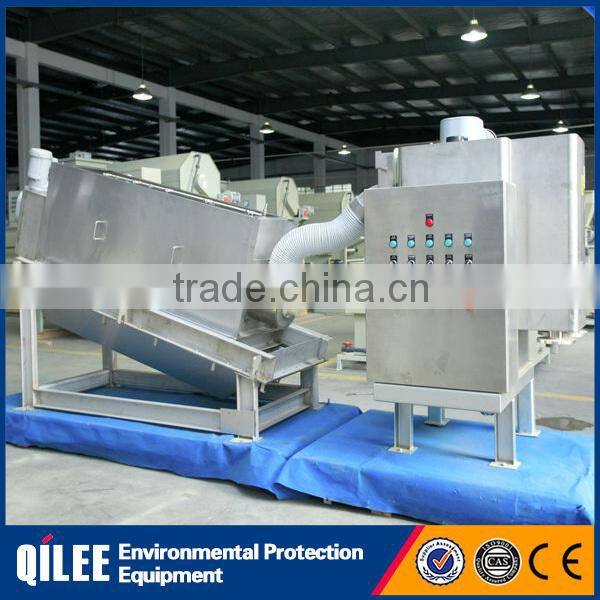

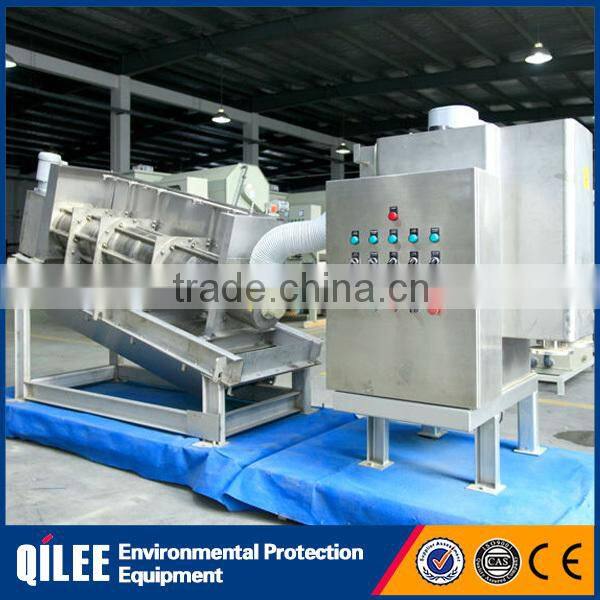

3.The electrical cabinet, disposal tank and dehydrator are integrated, which reduces

   the covering area and brings convenience to installment.

4.The dehydrator is enclosed working, which reduces the bad smell and improves

   the working environment.

5.Automatically working for 24 hours, reducing the labor strength of workers.

6.The slow running speed of screw shaft reduces the power consumption and noise.

7. It is made with stainless, extending the service life.

8. It is convenient for daily maintenance.

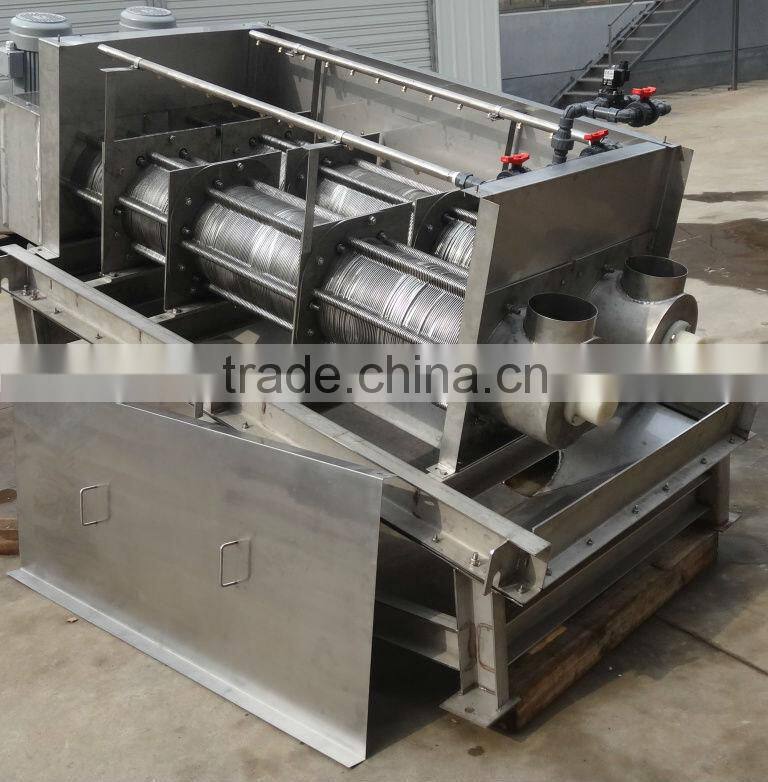

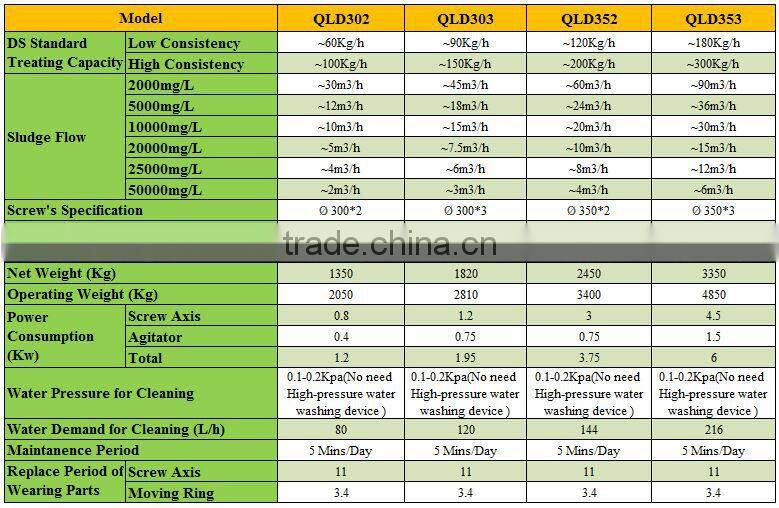

Product Details of screw press separator

Product Application:

City mixed raw sewage

Food & beverage industry

Chemical industry

Stone & mine sewage

Leather & tannery sewage

Paper & pulp sewage

Elecro-plating sewage

Pringting & dyeing sewage

Power plant

Petrochemical industry

How to order:

About us:

        Shanghai QILEE is a company integrates the research and development,

productionand marketing of environmental protection equipment. It adheres tothe

corporate philosophyof “Quality first, Sustainable operation” since its foundation

in 2006. It implements development strategic of “professionalization, scale and

internationalization”. Shanghai QILEE keeps technical innovations constantly and

provides superior products to meet the requirements of customersand market.

      Shanghai QILEE brings in advanced foreign technology and originally designs

 and manufactures sludge dehydrators, automatic dissolvers, oil skimmers and

 agitators.

      With our precious experience and professional knowledge, we will provide our

 best pre-sale and after-sale service for you.

     Work together with us, you will find enjoyable and successful business is so easy.

                     If you are interested in our product, contact me!

I'm here waiting for you !

Shanghai  QILEE  Environmental Protection  Equipment  Co. Ltd

TEL : 86+-51697580     51697585                 FAX:  86+21-51687968
