Sewage Water treatment automatic filter press
- 20 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
waste water treatment automatic belt filter press machine
-
oil sludge treatment industry sludge screw press
-
power saving sludge machine screw press dehydrator
-
High efficiency leather and tannery sewage screw dewatering machine
-
pressure filter dewatering system screw press machine
-
Pharmaceutical industry sewage wastewater treatment screw press separator
Product Details
| Place of Origin | Shanghai, China | Brand Name | QILEE | |
| Model Number | QTB-1000 |
Product Description
Sewage Water treatment automatic automatic filter press
Product Details of automatic filter press :

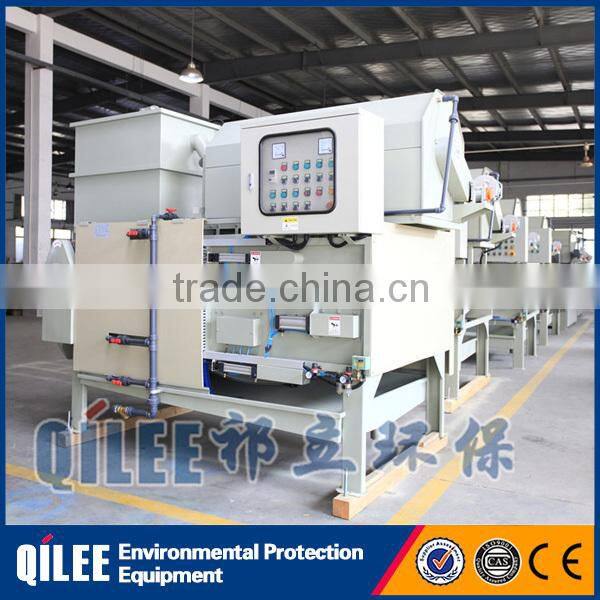

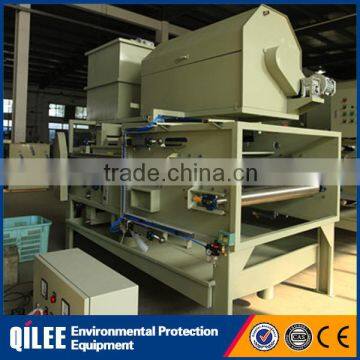

automatic filter press

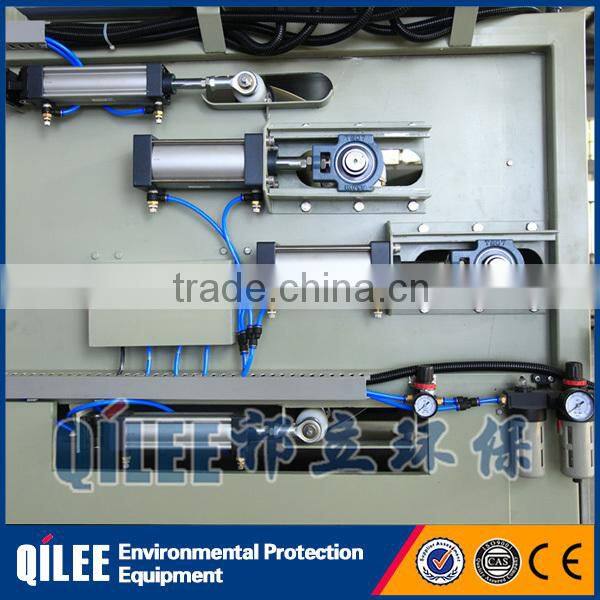

the air cylinder

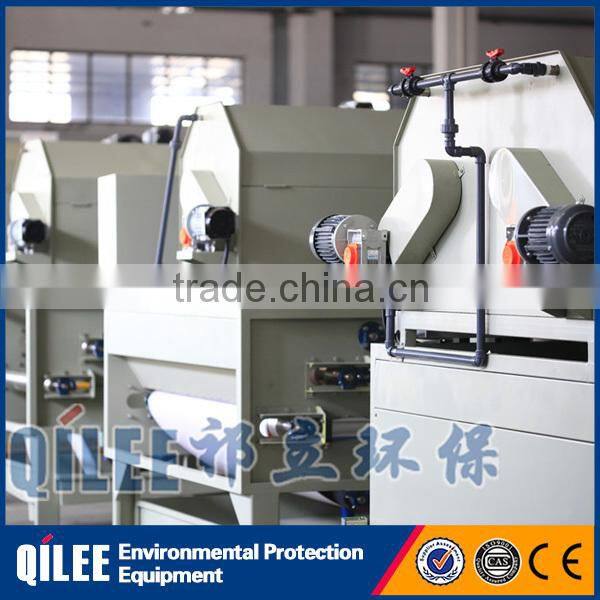

the bearings
the filtration belts
- SS304 stainless steel for the machine.
High-grade filter cloth imported from Europe and United States.
Low power,low rotate speed and low nosie,level of noise ≤ 75dB(A)
Offset correction use pneumatic type.Stable machine operation.
Tandem type safety sense and emergency stop device,more safe for your operation.
The whole system use humanization design,easy to operate and maintain.
Technical Data of automatic filter press :
| Model | QTB-500 | QTB-750 | QTB-1000 | QTB-1250 | QTB-1500 | QTB-1500L | QTB1750 | QTB-2000 | |
| Belt Width(MM) | 500 | 750 | 1000 | 1250 | 1500 | 1500 | 1750 | 2000 | |
Treating Capacity( m³/hr ) Inlet Consistency(ss0.5~1.5%) | 3.0~5.2 | 4.5~7.5 | 6.5~10.5 | 7.5~12.5 | 9.5~16 | 12~20.5 | 15~24.5 | 18~30 | |
| Dried Sludge(kg/hr) | 45~78 | 68~113 | 98~158 | 113~188 | 143~240 | 180~308 | 225~368 | 270~450 | |
| Water Content's Rate(%) | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | |
| Power Consumption (HP) | Driving Motor | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 |
| Disposal Agitaor Motor | 1/4 | 1/4 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | 1 | |
| Drum Thickener | 1/4 | 1/4 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | |
| Lower Collecting Tray For Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | No | No | |
| External Dimensions (Reference) (MM) | L | 2600 | 2600 | 2600 | 2600 | 2700 | 3300 | 3300 | 3400 |
| W | 1050 | 1300 | 1550 | 1800 | 2150 | 2150 | 2400 | 2650 | |
| H | 2150 | 2350 | 2350 | 2350 | 2500 | 2500 | 2500 | 2600 | |
| Base Dimension(L1*W1,MM) | 2100*830 | 2100*1080 | 2100*1330 | 2100*1580 | 2100*1830 | 2450*1860 | 2580*2110 | 2580*2360 | |
| Reference Weight(Kg) | 830 | 1000 | 1210 | 1450 | 1850 | 2200 | 2450 | 2850 | |
Treatment Flowchart of automatic filter press :
Application Fields of automatic filter press :
| Sort of Sewage | Type of Slurry | Slurry Inlet Consistency (ss %) | Polymer Power Consumption (Kg/Ton D.S.) | Water Contents Rate of Slurry Cake (%) |
| Paper&Pulp Sewage | Chemical Slurry | 2.0-5.0 | 2.0-4.0 | 64-78 |
| Activate Slurry | 1.5-3.0 | 3.0-5.0 | 75-84 | |
| Printing,Dyeing Sewage | Chemical Slurry | 1.5-2.5 | 3.0-5.0 | 76-84 |
| Activate Slurry | 1.0-2.0 | 3.0-5.0 | 80-85 | |
| Leather&Tannery Sewage | Chemical Slurry | 2.5-4.5 | 3.0-5.0 | 74-83 |
| Activate Slurry | 1.5-2.5 | 4.0-6.0 | 78-85 | |
| Elecro-Planting Sewage | Chemical Slurry | 1.5-2.5 | 3.0-5.0 | 72-84 |
| Metal-Processing Sewage | Chemical Slurry | 2.0-4.0 | 3.0-5.0 | 66-84 |
| Stone&Mine Sewage | Chemical Slurry | 5.0-10 | 3.0-5.0 | 45-75 |
| Food&Beverage Sewage | Activate Slurry | 0.8-1.5 | 4.0-6.0 | 78-85 |
| Livestock Sewage | Anaerobic Fermentation | 3.0-6.0 | 5.0-8.0 | 75-83 |
| Butchery Sewage | Admixture Surplus Slurry | 1.0-3.0 | 4.0-6.0 | 75-85 |
| City Mixed Raw Sewage | Surplus Slurry | 0.8-1.5 | 4.0-6.0 | 78-85 |
| Admixture Slurry | 1.5-2.5 | 3.0-5.0 | 72-85 | |
| Excretion Sewage | Digestion Surplus Slurry | 1.0-3.0 | 4.0-6.0 | 74-85 |
| Water Purifying Sewage | Chemical Slurry | 1.5-4.5 | 3.0-5.0 | 64-82 |
Engineering project of automatic filter press:

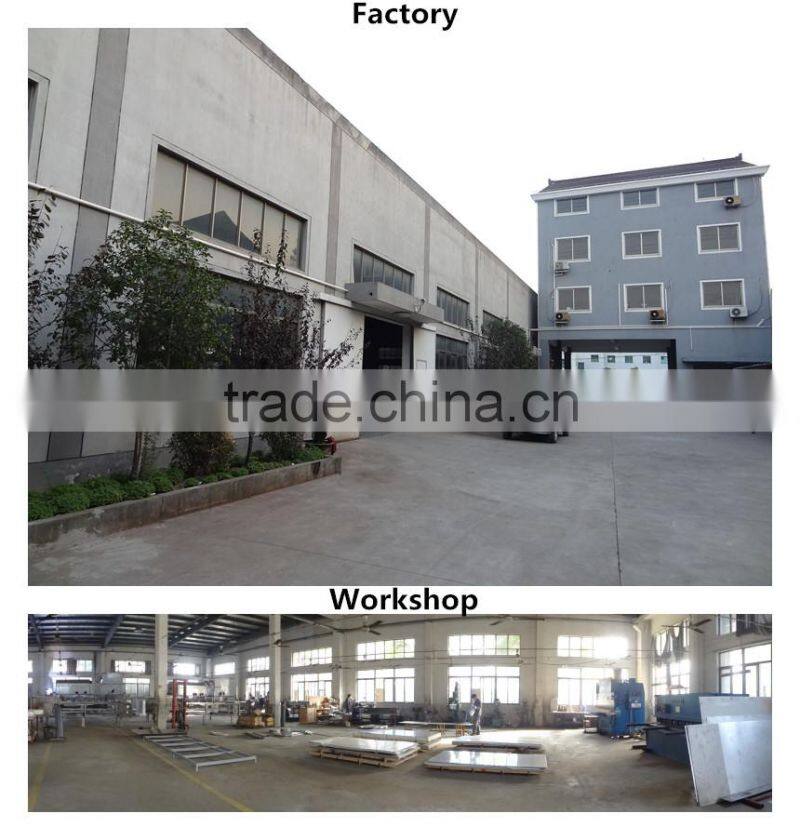

About Us:
Shanghai QILEE is a company integrates the research and development, production and marketing of environmental protection equipment. It adheres to the corporate philosophy of “Quality first, Sustainable operation” since its foundation in 2006. It implements development strategic of “professionalization, scale and internationalization”. Shanghai QILEE keeps technical innovations constantly and provides superior products to meet the requirements of customers and market.
Shanghai QILEE brings in advanced foreign technology and originally designs and manufactures sludge dehydrators, automatic dissolvers, oil skimmers and agitators.
With our precious experience and professional knowledge, we will provide our best pre-sale and after-sale service for you.Work together with us, you will find enjoyable and successful business is so easy.
Our company for ten years as part of the customer :
Q:What’s the application scope of automatic filter press?
A:It is widely applied in wastewater treatment in industrial, chemical, municipal and so on.
Q:What’s the material of automatic filter press?
A:It is SUS304.
Q:What’s the equipment used together with automatic filter press?
A:Sludge pump, polymer dosing pump, washing pump, air compressor.
Q:How to choose the model?
A:Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
How to order:
Warm Tips:
A:How to select the right automatic filter press?
A1:How about your sludge treatment capacity per hour(m3/hr)?
A2:How about your solid content or water content(%)?
A3:What is the character of your sludge?
A4:How about your dried sludge(D.S.)?
A5:How about your water content of sludge cake(%)?
