Home > Products > ball valve > Technical Brand High Quality forged ball valve
Technical Brand High Quality forged ball valve
- Tianjin port Or as requested
- T/T Credit Card
You May Like
-
Electric Actuated Butterfly Valve PN16&PN25
-
Good performance peek swing check valve supplier
-
Testing according to API-598 stainless steel swing check valve supplier
-
Professional Factory flange swing check valve supplier
-
ISO9001 and CE Certification cast steel swing check valve supplier
-
Professional manufacturer screwed end swing check valve supplier
Product Details
Standard or Nonstandard | Standard | Structure | Ball | |
Pressure | High Pressure | Power | Manual | |
Material | Other, Forged, F316,F304,A105 | Temperature of Media | High Temperature | |
Media | Other, Water,Oil,Gas | Port Size | 3/4 inch | |
Place of Origin | Hebei, China | Model Number | D3F8 | |
Brand Name | Zhongyi Valve | Application | General |
Product Description
forged ball valve product description: |
1.SIZE: DN15-DN50 (1/4 to 2 inch) |
2.Material: F316,F304,A105 |
3.Pressure: 800LB |
4.Connect end: Thread |
5.Thread ends: BSPT/NPT/ISO228/DIN2999 |
6.Seat: PTFE/RPTFE |
7.Body & Cap: Investment Casing |
8.Test:100% tested under water and gas |
9.ISO and CE Certification |
dia: water,oil,gas |
11. Applicable temperature: -40C~180C |
12.Locking device :Optional |
13.Blot-out proof stem |
14.All size are full port |
15.Testing according to API-598 |
16.Anti-static debices for ball-stem-body |
forged ball valve part material list:
Item | Item | Material | |
1 | cap | A105N | A316 |
2 | body | A105N | A316 |
3 | ball | A182 316 | A182 316 |
4 | seat | RPTFE | RPTFE |
5 | Body gasket | Graphite | Graphite |
6 | Bolt | ASTM A193 B7 | ASTM A193 B8 |
7 | Stem | 316 | 316 |
8 | Thrust Washer | R-PTFE | R-PTFE |
9 | Packing | Graphite | Graphite |
10 | Packing gland | 304 | 304 |
11 | Belleville washer | 50CrVA | 301 |
12 | gland nut | 304 | 304 |
13 | locking handle | 430 | 430 |
14 | locking device | 430 | 430 |
15 | Anti-static | 304 | 304 |

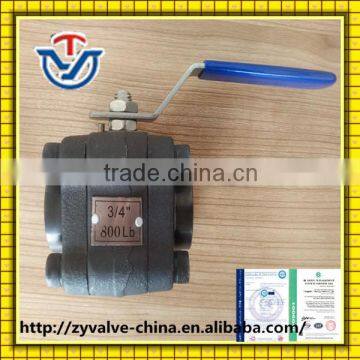

forged ball valve real photo:
forged ball valve FAQ:
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in cangzhou city, Hebei province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
5. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
6. Q: How do you overcome the anti-dumping and countervailing duties?
A: We can use original Taiwan ball valve, and provide Certificate of Origin of Taiwan.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
We keep high quality ball valve!
We offer ball valve competetive price!
We are good in after-sales service!
If you have any questions, you can always send me information that I have received will respond promptly.
Warm tips:
If you are interested in our products, please send us an inquiry,
Please mention below information
Item model or main feature description
order quantity
Instant contact
S kype:zhongyivalve
Email:zhongyivalve(at)
more product please add:http://zyvalve-china.en.china.cn/
