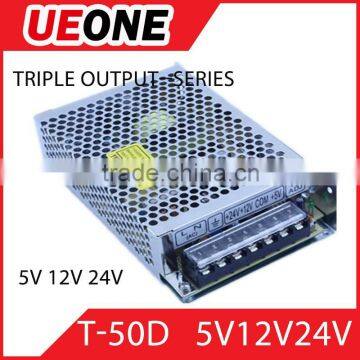

UEONE Triple output 50w 5v/12v/24v switching power supply T-50D

Model

T-50A

T-50B

T-50C

T-50D

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

DC output voltage

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

5V

12V

24V

Output voltage range(Note:2)

±2%

±5%

±5%

±2%

±5%

±5%

±2%

±5%

±5%

±2%

±6%

±6%

Rated output current

7A

1A

1A

5A

1A

1A

4A

1A

1A

3A

1A

1A

Output current range

0.6-7A

0.2-1A

0.2-1A

0.6-5A

0.2-1A

0.2-1A

0.6-1A

0.2-1A

0.2-1A

0.6-4A

0.2-1.2A

0.2-1.2A

Wave and noise(Note:3)

100mV

100mV

100mV

100mV

100mV

100mV

100mV

100mV

100mV

50mV

120mV

120mV

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±1%

±1%

Load stability(Note:5)

±1%

±4%

±4%

±1%

±4%

±4%

±1%

±4%

±4%

±1%

±5%

±5%

DC output power

52W

49W

50W

51W

Efficiency

66%

69%

71%

72%

Adjustable range for DC voltage

CH1; +10, -5%

CH1; +10, -5%

CH1; +10, -5%

CH1; +10, -5%

Input current

1.6A/115V 0.8A/230V

AC inrush current

Cold-start current 20A/115V 40A/230V

Leakage current

<0.5mA/240VAC

Overload protection

105%~150% Type: pulsing hiccup shutdown Reset: auto recovery

Temperature coefficient

±0.03%/°c(0~50°c)ON+5V

Setup, rise , hold up time

200ms, 50ms, 16ms

Vibration

10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes

Withstand voltage

Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC

Isolation resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10°c~+60°c(Refer to output derating curve), 20%~90%RH

Overall dimension

159×98×38mm

Weight

0.55Kgs

Safety standards

Meet UL 1012 requirement (Not apply for the mark)
