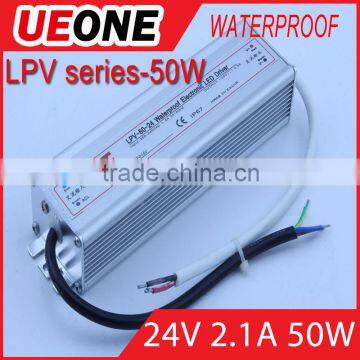

50w 24v 2.1a IP67 waterproof switch power supply of lpv-50-24

MODEL

LPV-50-24

OUTPUT

DC VOLTAGE

24V

RATED CURRENT

2.1A

CURRENT RANGE

0~2.1A

RATED POWER

50W

RIPPLE & NOISE(max).Note.2

120mVp-p

VOLTAGE ADJ.RANGE

~

VOLTAGE TOLERANCE Note.3

±1.0%

LINE REGULATION   Note.4

±0.5%

LOAD REGULATION  Note.5

±0.5%

SETUP,RISE TIME

500ms,20ms/230VAC   500ms,20ms/115VAC at full load

HOLD UP TIME(Typ.)

30ms/230VAC  25ms/115VAC at full load

INPUT

VOLTAGE RANGE

85~364VAC OR 248~373VDC

FREQUENCY RANGE

47~63HZ

EFFICIENCY(Typ.)

86%

AC CURRENT(Typ.)

2A/115VAC  1.2A/230VAC

INRUSH CURRENT(Typ.)

COLD START 36A

LEAKAGE CURENT

<2mA/240VAC

PROTECTION

OVERLOAD

110~150% rated output power

Protection type: C an be con tinued, recovers automatically after fault condition is removed

OVER VOLTAGE

28~30V

Protection type : Shut down, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.

-20~+60°C  (Refer to "Derating Curve")

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP HUMIDITY

-40~+85°C 10~95%RH

TEMPCOEFFICIENT

±0.03% /°C(0~50 °C )

VIBRATION

10~500HZ,2G10min/1cycle,60min.each alongX,Y,Zaxes

SAFETY & EMC(Note 7)

SAFETY  STANDARDS

UL60950-1, CB(IE60950-1),CCC GB4943.1:2011 approved

WITHSTAND VOLTAGE

l/P-o/P:3KVAC; l/P-FG:2KVAC; O/P-FG:0.5KVAC

ISOLATIONRESISTANCE

I/P-O/P, I/P-FG, O/P-FG :100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to EN55015, FCC part 15 class B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A

OTHERS

MTBF

320.7Khrs min MIL-HDBK-217F(25°C)

DIMENSION

159*98*38mm(L*W*H)

PACKING

0.55Kg; 30pcs/17.5Kg/0.97CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °C  of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
4.Constant current operation region is within 60% ~100% rated output voltage, and the output power must be more than 60% rated output power.This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
5.Derating may be needed under low input voltages. Please check the static characteristics for more details.
6.Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
7.The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
