China Manufacturer for Paper Covered Electrical Wire With Factory Price
- Tianjin /Shanghai /Qingdao
- T/T D/P D/A Credit Card
You May Like
-
UL Certificated Paper Insulated Electrical Wire With Factory Price
-
UL Certificated Factory Price Paper Covered Magnet Wire for Thailand
-
UL Certificated Factory Price Paper Covered Aluminum Magnetic Wire
-
China Supply Craft Paper Covered Aluminum Wire
-
UL Certificated Paper Insulated Rectangular Aluminum Wire for Electric
-
Paper Covered Rectangular Aluminum Wire for Electric
Product Details
| Place of Origin | Henan, China | Brand Name | HUAYUAN | |
| Model Number | ZBL | Type | Insulated | |
| Application | Other, Transformer,Generator | Conductor Material | Aluminum | |
| Conductor Type | Solid | Insulation Material | Other, Paper |
Product Description
Description of paper covered electrical wire :
Our Certification :
Export Product :
Detailed Information of paper covered electrical wire :

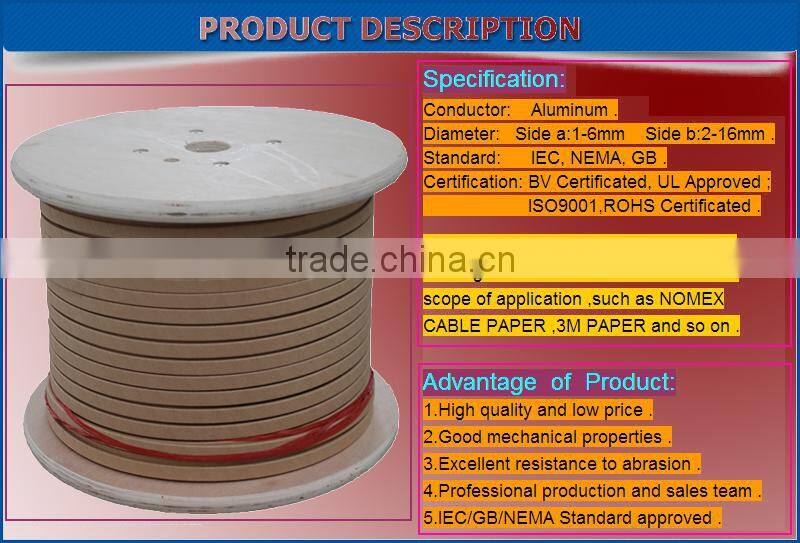

Specification of paper covered electrical wire :
Conductor: Aluminum .
Diameter: Side a:1-6mm Side b:2-16mm .
Standard: IEC, NEMA, GB .
Certification: BV Certificated, UL Approved ;
ISO9001,ROHS Certificated .
We can produce various paper covered
rectangular aluminum wire with different
scope of application ,such as NOMEX
CABLE PAPER ,3M PAPER and so on .
Advantage of paper covered electrical wire :
1.High quality and low price .
2.Good mechanical properties .
3.Excellent resistance to abrasion .
4.Professional production and sales team .
5.IEC/GB/NEMA Standard approved .
Test Report of paper covered electrical wire :
| Name | paper covered electrical wire | ||||
| Species | 5.000×10.600 | ||||
| Test Item | Standard | unit | Test Result | Conclusion | |
| Size | Max outside diameter | 5.500×11.120 | mm | 5.432 ×11.074 | OK |
| Thickness | ±0.050 | mm | 4.994 | OK | |
| width | ±0.070 | mm | 10.598 | OK | |
| Appearance | Uniform ,no missing layer, no wrinkling and cracking | NO DEFECT | OK | ||
| Insulation Thickness | 0.405--0.450--0.500 | mm | 0.438 | OK | |
| Resistivity(20ºC) | AL≤0.02785 | Ω.mm2/m | 0.02774 | OK | |
| Elongation | ≥17 | % | 34 | OK | |
| Wrapped overlapped | ≥2 | mm | 2.2 | OK | |
| Winding bending | Narrow width curved 90, 30 times the diameter. | NO cracking | OK | ||
| Breakdown Voltage | Meet the export standard | KV | Meet the export standard | OK | |
| Packing | Meet the export standard | Meet the export standard | OK | ||
| Final Conclusion | OK | ||||
Production Flow of paper covered electrical wire :

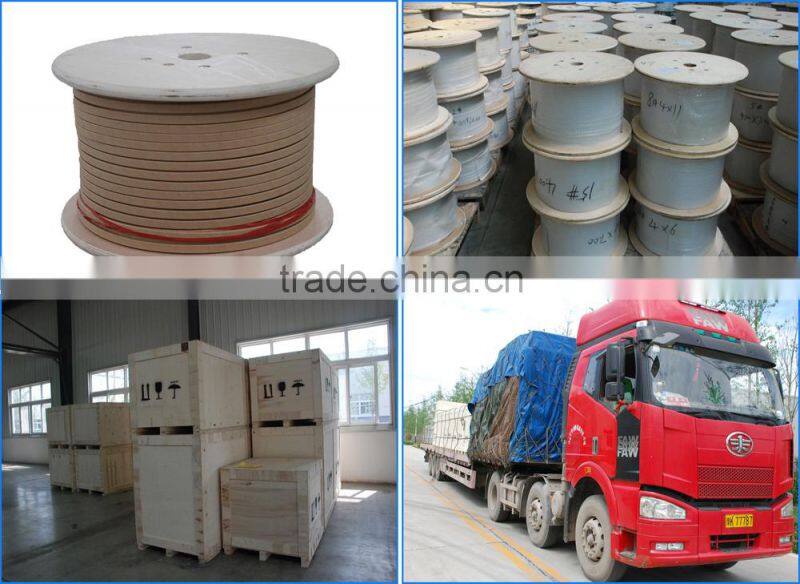

Inner packing:Plywood Wooden Spool .
Outer packing:Wooden pallet with paper board and stretched film according to customers' special requirements .
Our product has been packed in wooden case in order to protect paper covered electrical wire from damage during transport .
Founded in 1993, Xuchang Huayuan Magnet Wire Co.,Ltd located in Henan Province with covering an area of 100000 m2 and a building area of 30000m2.We are producers with more than 20 years of production experience.Since our factory was established,we have been engaged in researching and manufacturing enamelled magnet wire and winding magnet wire.Our main products are enamelled aluminum wire,enamelled copper wire,paper covered magnet wire,fiberglass covered magnet wire and other magnet winding wire .

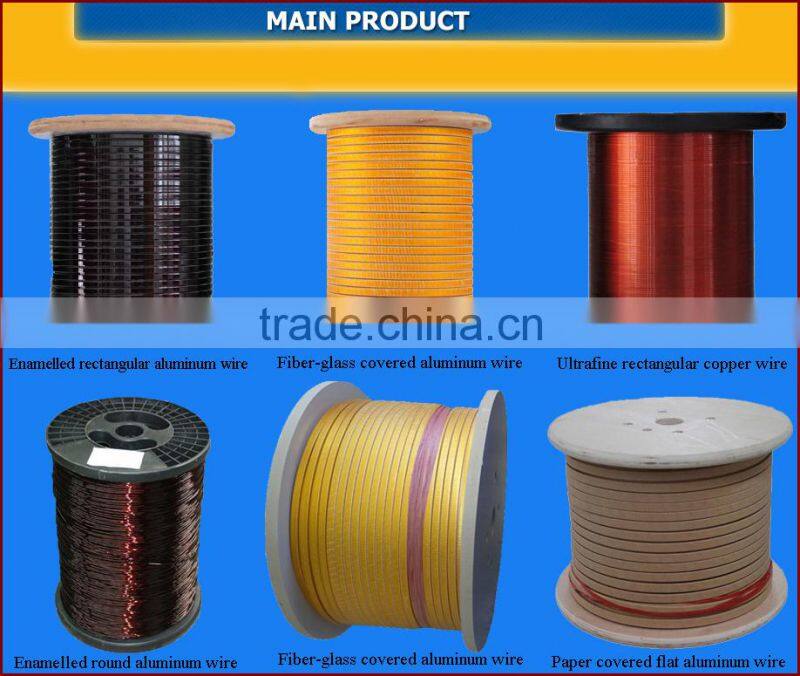

Main Product:
Our experimental equipment:
Typical application include :

Contact Information:
We can supply paper covered electrical wire,paper covered aluminum wire,paper covered aluminum magnetic wire,paper covered aluminum wire,craft paper covered aluminum wire,paper covered magnet wire,insulated aluminum wire,enamelled copper wire,paper covered magnet wire,fiberglass covered magnet wireand other magnet winding wire.Please contact me freely at any time.
1, Q: Can we supply the sample for free ?
A: Yes,we can.
2, Q: How many types of our product ?
A: We can supply paper covered electrical wire,paper covered aluminum wire,paper covered aluminum magnetic wire,paper covered aluminum wire,craft paper covered aluminum wire,paper covered magnet wire,insulated aluminum wire,enamelled copper wire,paper covered magnet wire, fiberglass covered magnet wire and other magnet winding wire.
3, Q: How long has been our company established ?
A: We has produced since 1993.
4, Q: What's our MOQ ?
A: 500kg.
5, Q: Which payment terms we prefer ?
A: (1) L/C
(2) T/T
(3) D/P
(4) Western Union
