Fiberglass Covered Rectangular Aluminum Winding Wire For Electrical Equipment

FOB Price

US$ 3.41 - 6.05 / Kilogram

500 Kilograms(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	HUAYUAN
Model Number	GLEMLB	Type	Insulated
Application	Other, Transformer,Generator	Conductor Material	Aluminum
Conductor Type	Solid	Insulation Material	Fiberglass

Conductor Diameter:
Side A: 1-6.0mm / Side B: 2.0-16.0mm
Superiority:High breakdown voltage and good mechanical properties

Product Description

Specification:

Conductor: aluminum.
Diameter: side a:1-6mm side b:2-16mm

Standard: IEC, NEMA, GB,JIS.
Thermal Class:130/155/180/200/220 centigrade.

Certification: SGS, UL Approved; iso9001, iso14001,RoHS Certificated.

Insulation: Polyimide film and fiberglass .

Advantages of fiber-glass covered rectangular aluminum winding wire:

1.High quality and low price.

2.High breakdown voltage.

3.Good mechanical properties and excellent adherence.

4.Professional production and sales team.

5.IEC/GB/JIS/NEMA standards approved.

6.Excellent resistance to abrasion .

Test Report

Name		Fiber-glass covered rectangular aluminum wire
Species		2.000×8.000
Test Item		Standard	unit	Test Result	Conclusion
Size	Max outside diameter	2.510 ×8.550	mm	2.455×8.355	OK
	Thickness	±0.030	mm	2.005	OK
	width	±0.070	mm	7.980	OK
Appearance		Uniform ,no missing layer, no wrinkling and cracking		No Defect	OK

Insulation Thickness		0.32--0.40--0.48	mm	0.450	OK
Resistivity(20ºC)		AL≤0.02785	Ω.mm²/m	0.02776	OK
Adherence		No crack in the insulation after 10% elongation		No cracking	OK
Elongation		≥17	%	30	OK
Breakdown Voltage		560	V	690,676,671,730	OK
Packing		Meet the export standard		Meet the export standard	OK
Final Conclusion		OK

Production flow

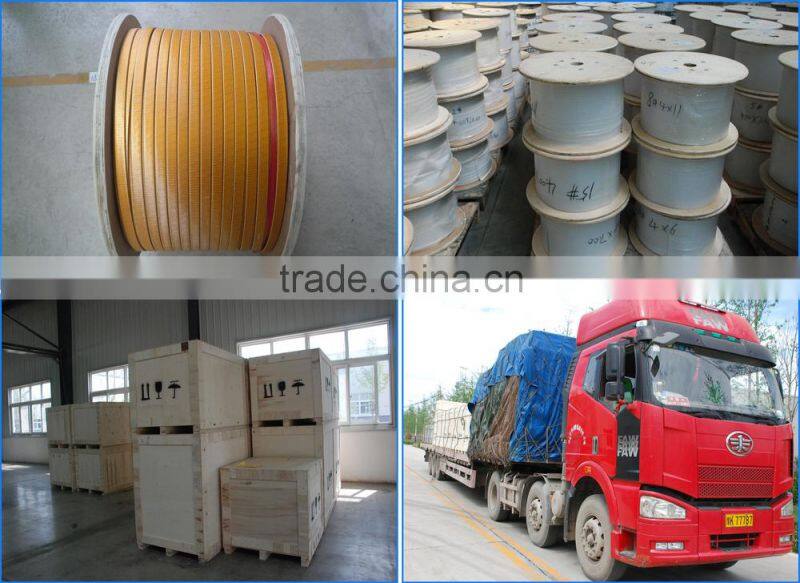

Packaging & Shipping
