Fiberglass Covered Aluminum Electric Winding Wire for Electric on
- Tianjing / Shanghai / Qingdao
- T/T D/P D/A Credit Card
You May Like
-
Fiberglass Insulated Enameled Aluminum Round Wire for Motor
-
Transformer Electrical Wires Enamelled Wires AWG SWG in China
-
Winding Rectangular Copper Wire With Fiber-glass,copper Wire Color,glasses Wire
-
Film & Fiber-glass Aluminum Electrical Wire,welding Wire,aluminium Price per kg
-
Fiber-glass Aluminum Electrical Wiring Industrial, Cn,dubai Wholesale Market
-
Enameled & Fiberglass Aluminum Wire for Motor,winding Closely
Product Details
| Place of Origin | Henan, China | Brand Name | HUAYUAN | |
| Model Number | GLEMLB | Type | Insulated | |
| Application | Other, Transformer,Generator | Conductor Material | Aluminum | |
| Conductor Type | Solid | Insulation Material | Fiberglass |

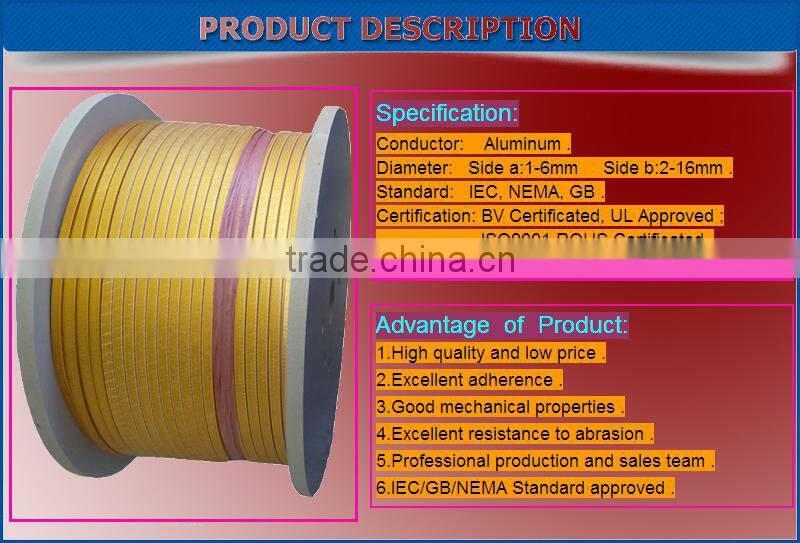

Product Description
Specifications
Conductor Diameter:Side A: 1-6.0mm / Side B: 2.0-16.0mm
Superiority:High breakdown voltage and good mechanical properties
Test Report :
| Name | fiberglass covered aluminum winding wire | ||||
| Species | 2.300×8.300 | ||||
| Test Item | Standard | unit | Test Result | Conclusion | |
| Size | Max outside diameter | 2.730×8.770 | mm | 2.680×8.614 | OK |
| Thickness | ±0.030 | mm | 2.310 | OK | |
| width | ±0.070 | mm | 8.270 | OK | |
| Appearance | Uniform ,no missing layer, no wrinkling and cracking | No Defect | OK | ||
| Insulation Thickness | 0.34--0.40--0.43 | mm | 0.370 | OK | |
| Resistivity(20ºC) | AL≤0.02785 | Ω.mm2/m | 0.02775 | OK | |
| Adherence | No crack in the insulation after 10% elongation | No cracking | OK | ||
| Elongation | ≥17 | % | 33 | OK | |
| Breakdown Voltage | 2.5 | KV | 5.3,6.4,5.9,5.6 | OK | |
| Packing | Meet the export standard | Meet the export standard | OK | ||
| Final Conclusion | OK | ||||
Production :
Inner packing:Plywood Wooden Spool.
Outer packing:wooden pallet with paper board and stretched film according to customers' special requirements .
Our product has been packed in wooden case in order to protect fiberglass covered aluminum electric winding wire from damage during transport .
Founded in 1993, Xuchang Huayuan Magnet Wire Co.,Ltd located in Henan Province with covering an area of 100000 m2 and a building area of 30000m2.We are producers with more than 20 years of production experience.Since our factory was established,we have been engaged in researching and manufacturing enamelled magnet wire and winding magnet wire.
Main product :
Our experimental equipment :
Typical applicayion include :
Contact Information :
1, Q: Can we supply the sample for free ?
A: Yes,we can.
2, Q: How many types of our product ?
A: We can supply enamelled aluminum wire,enamelled copper wire,paper covered magnet wire, fiber glass covered magnet wire and other magnet winding wire.
3, Q: How long has been our company established ?
A: We has produced since 1993.
4, Q: What's our MOQ ?
A: 500kg.
5, Q: Which payment terms we prefer ?
A: (1) L/C
(2) T/T
(3) D/P
(4) Western Union
