PP/PET needle punched geotextile
- 8000000 Square Meter / Square Meters per Month
- QINGDAO Port China
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | PENGYUAN | |
| Model Number | PY-008 | Geotextile Type | Non-Woven Geotextiles |
Product Description
Specifications
1) Weight: 100-800g/m22) Thickness: 0.9m- 5.0mm
3)Material:PP or PET
4)Application: construction, water conservancy, railway
PP/PET needle-punched geotextile details as following:
MATERIAL:PP/ PET (Polypropylene/Polyester)
1) Weight: 100--800g/M2
2) Thickness: 0.9mm TO 5.0mm
3) Width:0.5m-6.6M
4) Applications: construction, water conservancy, railway, road, dam bridge, waste treatment, enclosed sea to make farmland, sap projecte
5) Functions: compartmentation, filtration, protection, support, drainage, reinforcement
APPLICATIONS OF GEOTEXTILES
1 Filtration

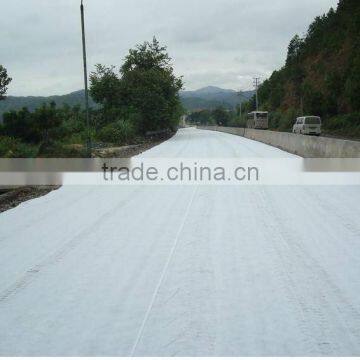

The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
2 Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
3 Adding muscle:
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.
4 Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from beined away.
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | NOTE |
BASIS WEIGHT TOLERANCE (%) | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
|
THICKNESS ≥MM | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 |
|
TENSILE STRENGTH AT BREAKING ≥KN/m | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | MD&CD |
CBR PLUNGER STRENGTH ≥KN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
TEARING STRENGTH ≥KN | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 |
|
BREADTH TOLERANCE (%) | -0.5 |
| ||||||||||
ELONGATION AT BREAKING (%) | 25-100 | MD&CD | ||||||||||
EOS O90mm | 0.07-0.2 |
| ||||||||||
VERTICAL PERMEABILITY (CM/S) | K×(101~~103) | K=1.0-9.9 | ||||||||||
