Home > Products > 16. Customized Products > Sinolift EPT20 Scale Full Electric Pallet Truck
Sinolift EPT20 Scale Full Electric Pallet Truck
- SHANGHAI
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SINOLIFT | |
| Model Number | EPT20 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Sinolift EPT20 Scale Full Electric Pallet Truck
1) Features
Performance:
The philosophy of MINI Series is using minimal truck to create maximal performance and efficiency, save energy,
save human force,save material, save your cost.
Basic specifiicatiion
Use high quality assembly from industry's mature suppliers to ensure the function of the truck's power system
and its stability.
1. Strong power, effort saving
Capacity 1.3 ton, reaching most customers' demands in goods transit
Comparing to the hand pallet truck, more efficient and convenient while lifting, lowering and walking
2.Solid and durable
High quality assembly result in longer truck operation life
Solid body frame(Reasonably removed unnecessary accessories to save materials and improve body frame intensity)
Characteristics
1. Beautiful appearance
Semi-enclose appearance design, brief and elegant
2. Delicacy structure with excellent detail
Delicacy inner and outer structure design with excellent details
3. Easy to maintenance
Modular produce, easy to dismantle
Ingenious designed, increase the space utilization
4. Small body, space saving
Small size makes passing in narrow pathway easily
5. Agility and convenience in operation
Light body makes operation conveniently
6. Ecnomic and energy saving
Cost efficient, origin design revolutionary truck in forklift industry
2) Specification Data
Product Name  | Power Pallet Truck with weight system  |
Model  | EPT20-15ETS Pallet Truck  |
Drive: electric( battery or mains) ,diesel,petrol,fuelgas,manual  | Electric  |
Type of operation: hand, pedestrian , standing , seated , order-picker  | Pedestrian  |
Load Capacity/rated load(kg)  | 1500  |
Load centre distance (mm)  | 600  |
Load distance,centre of drive axle to fork(mm)  | 946  |
Wheelbase(mm)  | 1293  |
Service weight(kg)  | 190  |
Tyres:solid rubber,superelastic,pneumatic,polyurethane  | Polyurethane  |
Tyres size,front  | Φ220x70  |
Tyre size,rear  | Φ80x70  |
Additional wheels(dimensions)  | Φ50x30  |
Wheels.number front/rear(x=driven wheels)  | 1 x + 2 / 4  |
Track width.front(mm)  | 340  |
Track width.rear (mm)  | 380  |
Lift height (mm)  | 115  |
Height of tiller in drive position min./max. (mm)  | 1200  |
Lowered height (mm)  | 85  |
Overall length (mm)  | 1648  |
Length to face of forks (mm)  | 498  |
Overall width (mm)  | 560  |
Fork dimensions (mm)  | 48/160/1150  |
Width over forks (mm)  | 540  |
Ground clearance,centre of wheelbase (mm)  | 37  |
Aisle width for pallets 800X1200 lengthways (mm)  | 2119  |
Turning radius (mm)  | 1445  |
Travel speed,laden/unladen (Km/h)  | 4.2/4.6  |
Lift speed, laden/unladen ( mm/s)  | 30/53  |
Lowering speed,laden/unladen ( mm/s)  | 49/36  |
Max.gradiant performance,laden/unladen (%)  | 4/10  |
Service brake  | electromagnetic  |
Drive motor rating s2 60min (kw)  | 0.65(AC)  |
Lift motor rating at s3 7% (kw)  | 0.8  |
Battery voltage,nominal capacity (V/Ah)  | 24/60  |
Type of drive control  | MOSFET Control  |
sound level at driver's ear acc.to EN 12053 (A)  |

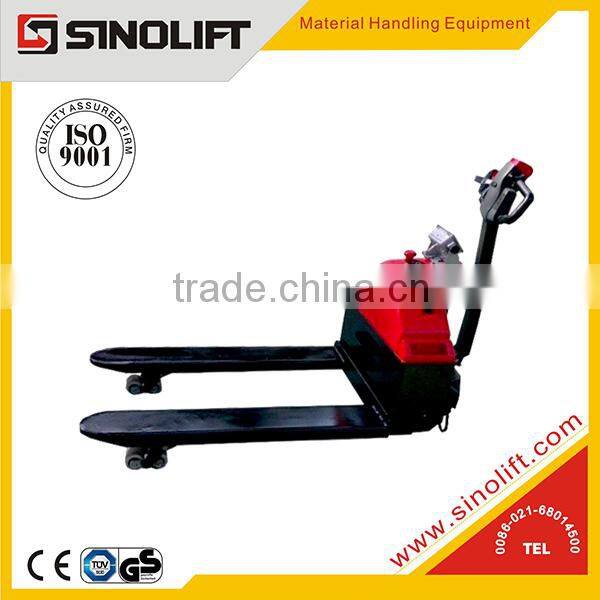

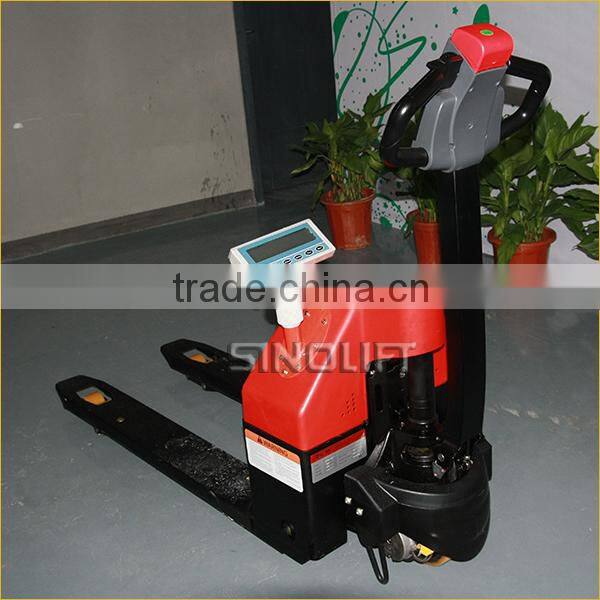

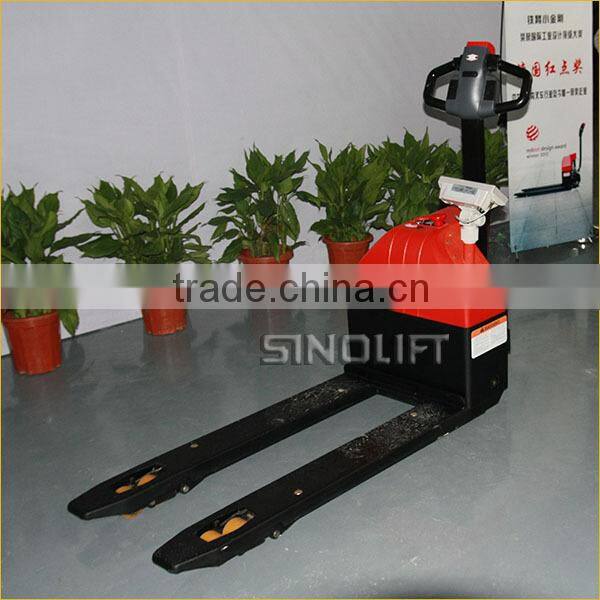

3) Photos

4) workshop:

5) Terms and service:
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
7) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
