Product Details
| Brand Name | Sinolift | Model Number | CQD-E | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

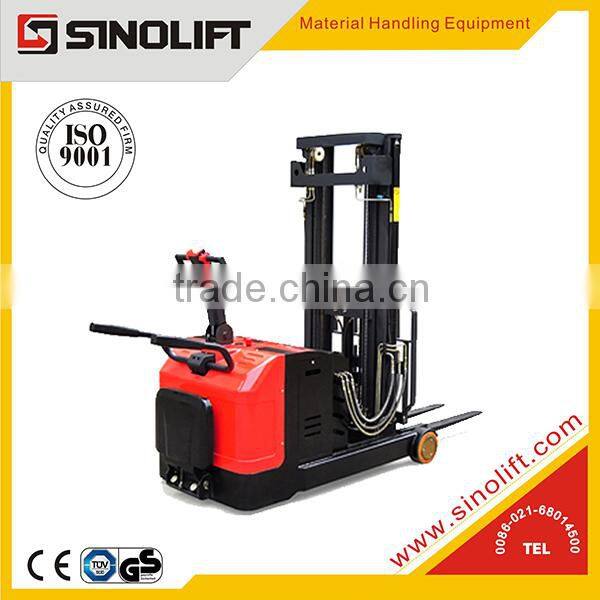

CQD-E Series Small Electric Reach Forklift
1)Features Electric Reach Stacker
With 1000/1300KGS load capacity, max. lifting height 4.5m, suitable for various conditions use, our WRS series Reach stacker can be a good replacement for forklift.
Equipped with good sight mast and ergonomic design control system, enhance the working efficiency and reduce operator's fatigue. Streamlined appearance, compact design, brings unexpected joy and comfort to the users. Small turning radius and advanced electronic controller system enhance the stability of the vehicle.
2)Specification Date Electric Reach Stacker
Characterics | Model | CQD10E | CQD15E | ||
Vehicle Type | Electric Reach Stacker | ||||
Power type | Battery operated | ||||
Rated capacity | kg | 1000 | 1500 | ||
Load center | mm | 500 | 500 | ||
Operator control type | Ride-on | Ride-on | |||
Wheelbase | mm | 1280 | 1380 | ||
Reach length | mm | 500 | |||
Overall weight | kg | 1636 | 1836 | ||
Wheels | Wheel material | PU | PU | ||
Size of front wheel | mm | 210 | 210 | ||
Size of drive wheel | mm | 230 | 230 | ||
Size of balance wheels | mm | 124 | 124 | ||
Wheel quantity | 2* front wheel + 1* drive wheel + 1* balance wheel | ||||
Track width,front | mm | 900 | 900 | ||
Track width,rear | mm | 608 | 608 | ||
Dimensions | Lowered mast height | mm | 1790 | 1790 | |
Lifting height | mm | 70~1600 | 70~1600 | ||
Raised mast height | mm | 2040 | 2040 | ||
Overall length | mm | 2300 | 2300 | ||
Fork length | mm | 1070 | 1070 | ||
Overall width | mm | 850/908 | 850/908 | ||
Outer width of the fork | mm | 200~680 | 200~680 | ||
Min. height of fork | mm | 70 | 70 | ||
Clearance | mm | 40 | 40 | ||
Height of frame | mm | 840 | 840 | ||
Turning radius | mm | 1650 | 1750 | ||
Performance | Travel speed | laden | km/h | 5.3 | 5.3 |
unladen | km/h |
| 6 | ||
Lift speed | laden | mm/s | 75 | 75 | |
unladen | mm/s | 105 | 105 | ||
Lowering speed | laden | mm/s | 145 | 145 | |
unladen | mm/s | 80 | 80 | ||
Gradeability | laden | % | 8% | 8% | |
unladen | % | 10% | 10% | ||
Motor | Drive motor power | kw | 1.6 | 1.6 | |
Lift motor power | kw | 2.2 | 2.2 | ||
Battery voltage/rated | V/Ah | 24/210 | 24/210 | ||
Battery capacity | |||||
Battery weight | kg | 210 | 210 | ||
Battery dimensions(L×W×H) | mm | 650x200x540 | |||
Remark: | |||||
1. The above specifications is set based the lifitng height 2-stage mast: 1.6m, Special lifting height available.(2-Stage mast:2.5m,2.7m,3.0m,3.3m,3.6m,4m. 3-stage mast:4.3m,4.5m,4.8m,5m,5.5m,6m) | |||||
2. Attachment available. | |||||
3, Full free lift (FFM) is available. | |||||
4. The specification in the table are for standard models only, specification are subject to change without notice. For further information ,please contact us. | |||||
Mast Options | |||
Mast Model | Max. Lifting height (mm) | Mast lowered height (mm) | Mast extended height (mm) |
h3 | h1 | h4 | |
M16 | 1600 | 1790 | 2040 |
M25 | 2500 | 2040 | 3090 |
M30 | 3000 | 2190 | 3590 |
M33 | 3300 | 2340 | 3890 |
FFM45 | 4500 | 2040 | 5090 |

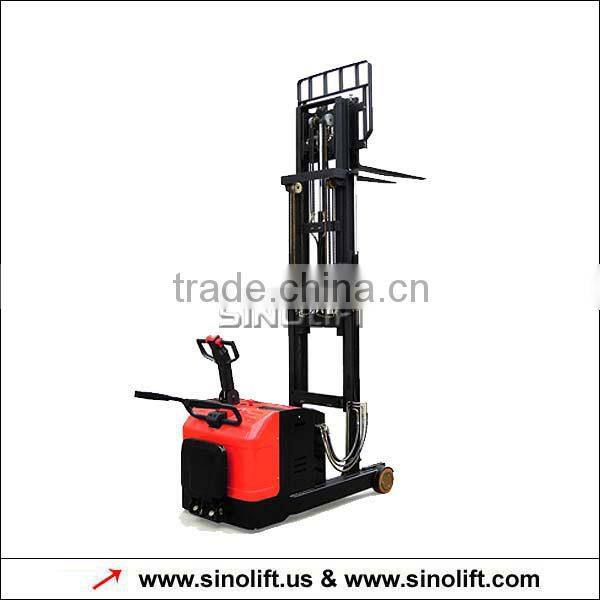

3)Photos Electric Reach Stacker
4)Workshop Electric Reach Stacker
5)Certificate Electric Reach Stacker
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service Electric Reach Stacker
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program Electric Reach Stacker
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
