Manual Bottom Valve
- Ningbo
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Shutoff | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Alloy | Temperature of Media | Normal Temperature | |
| Media | Oil | Port Size | 4 inch | |
| Place of Origin | Zhejiang, China | Model Number | SDHDV-100 | |
| Brand Name | YOJE |
Product Description
Specifications
Manual bottom valveManagement Certification: ISO 9001:2000
Fit EN13083 and Flange TTMA standard

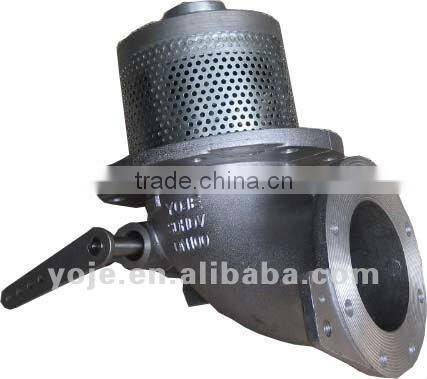

Manual bottom valve
Manual bottom valve is installed at the bottom of the oil tank where easy to hit or occur fires and can automatically emergency cut medium source.
When tank truck hits or overturns, bottom valve can automatically cut off the oil pipeline to avoid the leakage to guarantee the safety of the oil.
Material:
Body: AL alloy
Seal: FKM
Shaft: SS
Feature:
1. High flow rate design
2. Optional external air cylinder available
3. Shear section as per the USA standard
4. High lift valve design to offer max flow rate
5. High quality die cast body and component materials for durability and performance
6. The external switch handle can be opened by flexible shaft controller or pneumatic controller
