Home > Products > Sensor components > Temperature Sensor Connection Head CMI

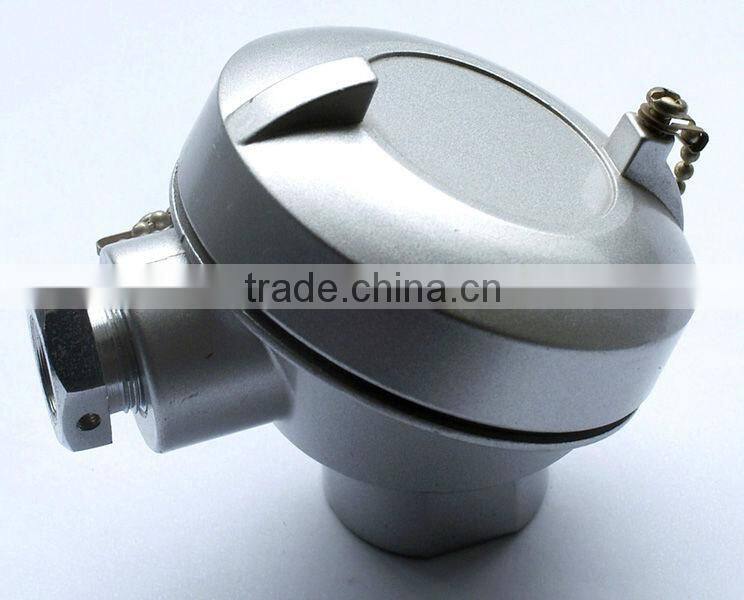

Temperature Sensor Connection Head CMI
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Taisuo; TST | |
| Model Number | CMI | Usage | Industrial | |
| Theory | Temperature Sensor |
Product Description
Specifications
1.temperature sensor component2.aluminium
3.silver RAL colour code
4. standard Stainless steel
Specifications
1.Temperature sensor component
2.Aluminium ADC12
3.silver RAL colour code
4. standard Stainless steel

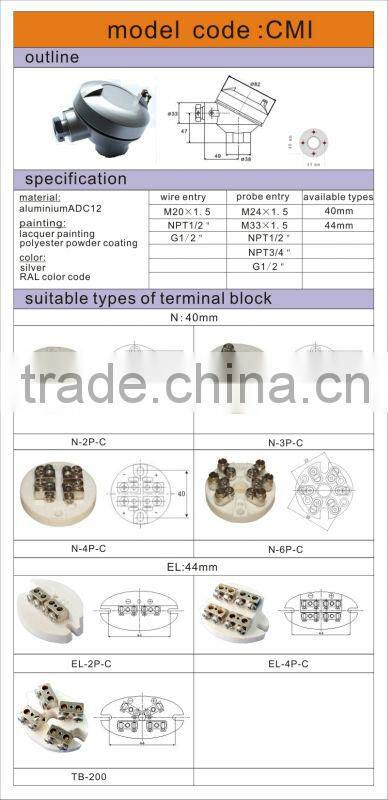

CMI terminal head with waterproof and dustproof function for the thermocouple and RTD assembly used to protect ceramic terminal block or transmitter.
1)Cover diameter 82mm
2)Ceramic terminal blocks: mounting holes distance :40± 0.1mm, 44± 0.1mm
3)Thread input: M20×1.5, G1/2, NPT1/2
4)Thread output: M24×1.5, M33 × 1, G1/2, G3/4, NPT1/2, NPT3/4
5)Product N.W.:190g
6)Packing condition:Plastic holder+internal carton(L460×W220×H90mm)
+external carton(L470×W460×H300mm), 60pcs/ex-ctn.
