Pinpoint Factory 500*300mm Tunner Size High Sensitivity Station X Ray Baggage Scanner

PinPoint brand model

PD-5030A

X RAY baggage scanner | X-RAY luggage scanner

Specifications:

Tunnel Size: 500(W)*300(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 80kg

Dose per Inspection: <2.9 μGy/h

Resolution: <0.101mm Metal Wire

Penetration: 8mm Steel

Film Safety: Guarantee ISO1600 Film

X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct: Upward

Generate angle: 60 degree

Anode Voltage: 80Kv

Anode power: 0.4 to 0.5mA

Cooling / Duty Cycle: Oil Cooling /100%

X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep

Monitor: High Resolution Color, LCD Accord, 17 inch

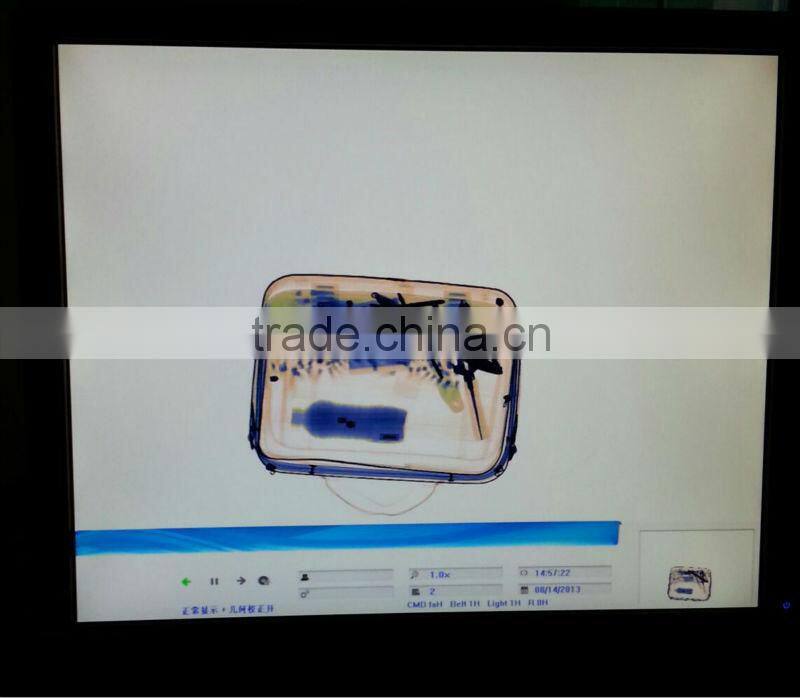

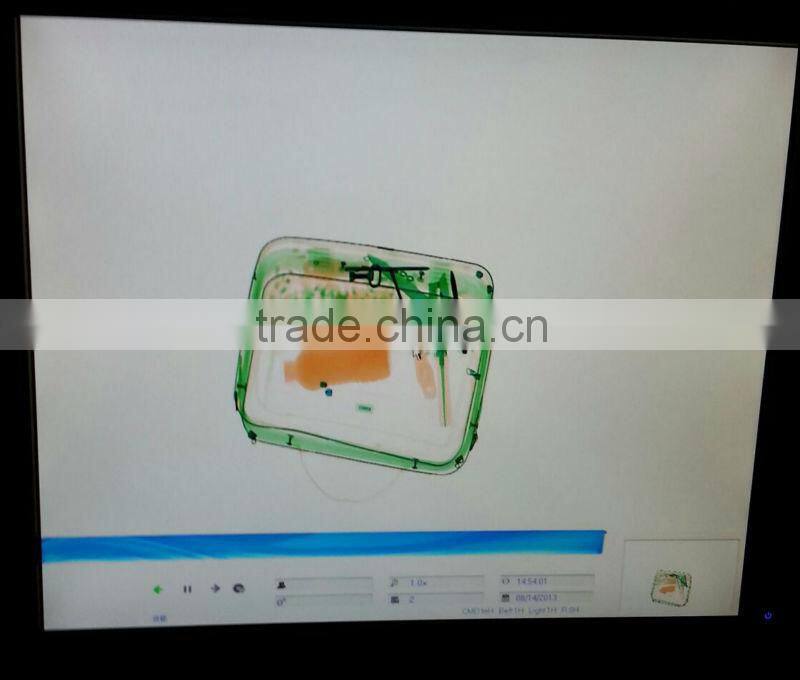

Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

Image Grey Level: 4096

Image Max Resolution: 1024 × 1280 pixel

Image Processing: 24bit for processing real time

Image storage: Storage 60000 pictures in real time

Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)

Operation Power: 220VAC(±10%)50±3Hz

Power Consumption: 1.0 KW (max), 0.3KW(working)

Noise: <65db
