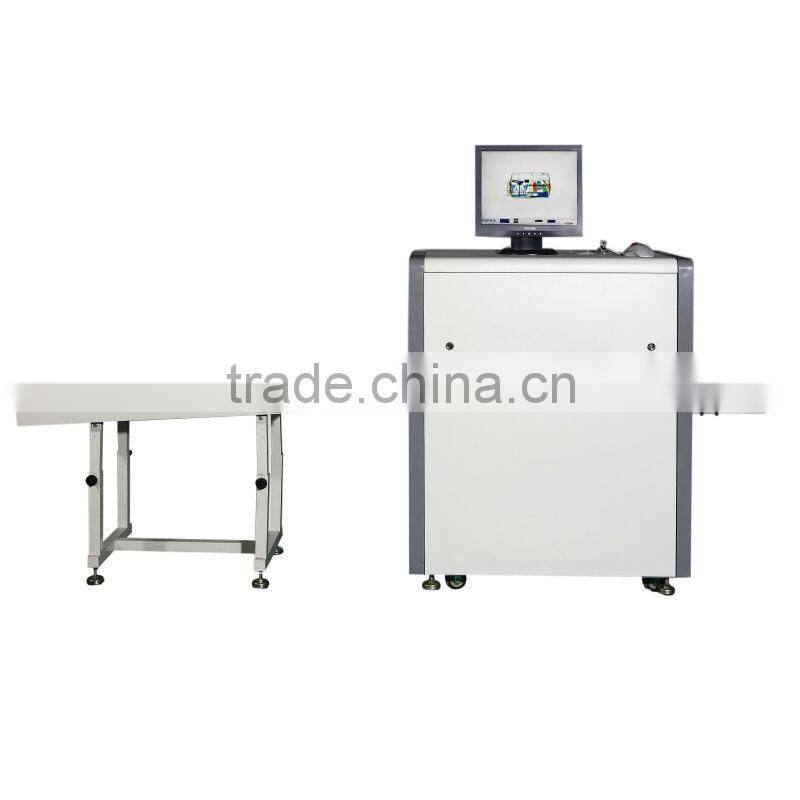

Best Price Subway X-ray Scanner x Ray Baggage Machine for Security PD-5030A

PinPoint brand model

PD-5030A- Typical Steel penetration 32mm

X RAY baggage scanner | X-RAY luggage scanner

Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband, PD-5030a X-ray inspection systems are ideal for screening everything from small packages to oddly shaped items and palletized loads.

Excellent system for schools, hotels, convention centers and event-based security requirements

Tunnel Size: 500(W)*300(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150kg

Dose per Inspection: <2.9 μGy/h

Resolution: <0.101mm Metal Wire

Spatial resolution: Level: dia1.0mm, Vertical: dia1.3mm

Penetrate resolution: Dia 0.511mm

Penetration: 32mm Steel

Film Safety: Guarantee ISO1600 Film

X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)

Image System

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep

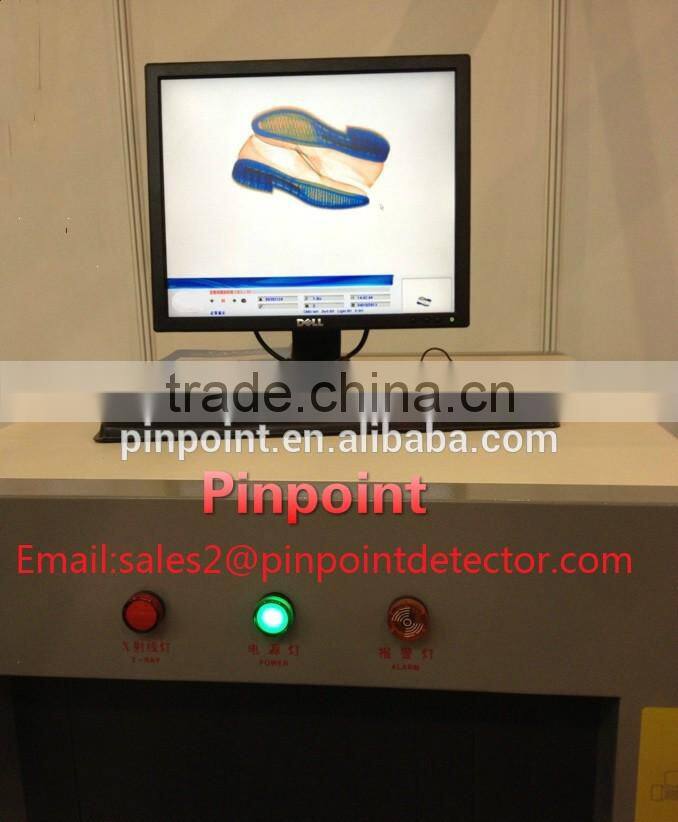

Monitor: 2 units, High Resolution Color, LCD Accord, 19 inch, operation desk(optional)

Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

Image Grey Level: 4096

Image Max Resolution: 1024 * 1280pixel

Image Processing: 24bit for processing real time

Image storage: Storage 60000 pictures in real time

Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

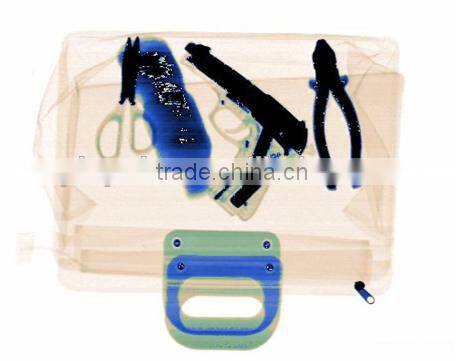

Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green

High-energy/low energy: switch from high energy to low energy

Assist to detect drug and explosive powder

Installation Data

our other models:

We produce different size of X ray baggage scanner to satisfy various customers:

Tunnel Size:

1. 1000(Width) * 1000(Height)mm

2. 1000(Width) *  800(Height)mm

3. 800(Width)   *  650(Height)mm

4. 650(Width)   *  500(Height)mm

5. 500(Width)   *  300(Height)mm

Advantages:

1. High penetration: range from 8mm to 34mm

2. Penetration: 0.0787 copper wire

3. Few leakage: 0.05  Gy/h (at a distance of 5cm From external housing)

4. Conveyor Max Load: 50kg to 200kg

5. Color image: Orgnaic in orange, Inorganic in blue, Mixture in green.

6. Protective cover on lead curtain to avoid lead pollution; 7. Sound and light alarm; 8. Local network supported;

Delivery time:

1. within 3 working days (When there is stock)

2. One week  (When there is no stock)

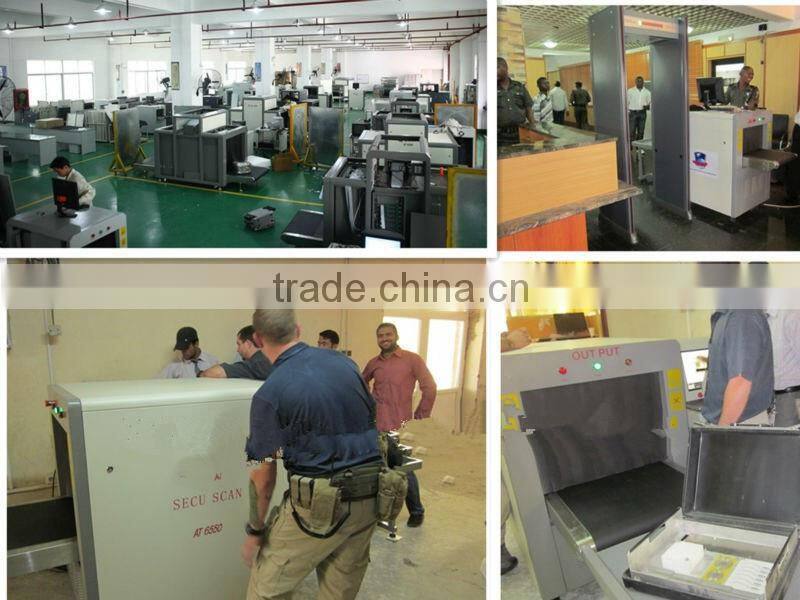

Applications:

1. Commercial buildings;

2. Factories(to find needle in clothing, shoes, bags)

3. Courthouses;

4. Embassies;

5. Government buildings;

6. Military installations;

7. Prisons;

8. Hotels;

9. Schools;

10. Convention centers;

11. Security checkpoints.
