Pinpoint Wholesale Night Vision Under Vehicle Search Camera Inspection

Shenzhen Pinpoint Technology.,co.,ltd

Realiable Manufacturer for

Under vehicle Inspection Camera

with DVR RECORDER

PD-V3D with wholesales price

Features:

• With DVR and high-resolution CCD as a search probe
• With 3.6mm wide-angle len, which makes the images more clearly and visual angle range more wider
• Night vision capability
• Video recording function: media play and video record
• 4.5 inch LCD display: for real-time search,rescue and detection and future review

Spceification:

• Power supply:DC12V/1800mAH
• IR distance:5 metre
• Screen:4.5 inch TFT LCD
• Camera:420 TV Lines CCD camera
• Lens:3.6mm
• Handle length:90-130mm

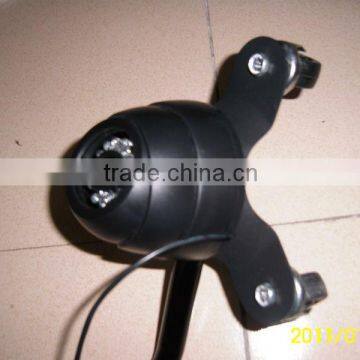

1,CAMERA:

Resolution: 1 / 3 inch

chip: 420 line Sharp CCD

Power Supply: DC12V

automatic infrared night vision function

 2,LCD/DVR

Screen size: 4.5 inches

Resolution: 480 * 320 * RGB

Power supply: Built-in 3.7V rechargeable battery

BATTERY

1 HOST BOX CHARGE

When the screen images distorted or no images and the indicator behind the host box is not extinguished, you should charge the host box. Using the 13.8V/1000mA charger to change the Host Box, at the process,at forst it is red,when full, it is green

2 LCD/DVR CHARGE

When appears the low-voltage logo on the screen or automatic shutdown, you need to use the 5V/1A of small charger to charge the DVR.Charging time is normally 4-8 hours, preferably not more than 8 hours, or DVR's Built-in battery life will be affected. In the process of charging, DVR the will be a small indicator light is red on the lower right corner of DVR , green when it is full.

 PACKAGE LIST

One Camera

One Host Box(with Aluminum)

One DVR /LCD

Two Charger (13.8V/1000mA,5V/1A

Payment and shippment:

Why choose us

Experienced and professional metal detector products manufacture

Perfect operation system on production and quality control with skilled staff

Sufficient stock, fast delivery

Best offer service
