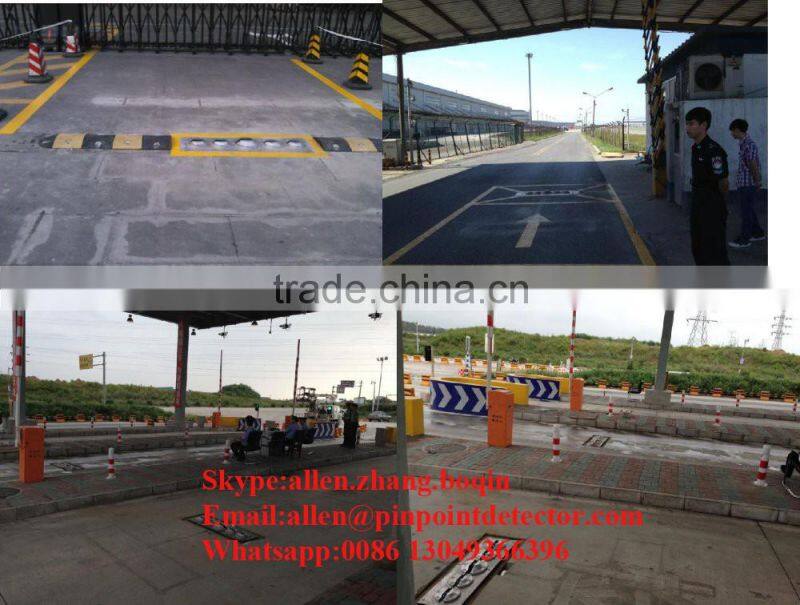

Pinpoint Fixed uvss under vehicle surveillance system Min. Order: 1 Set

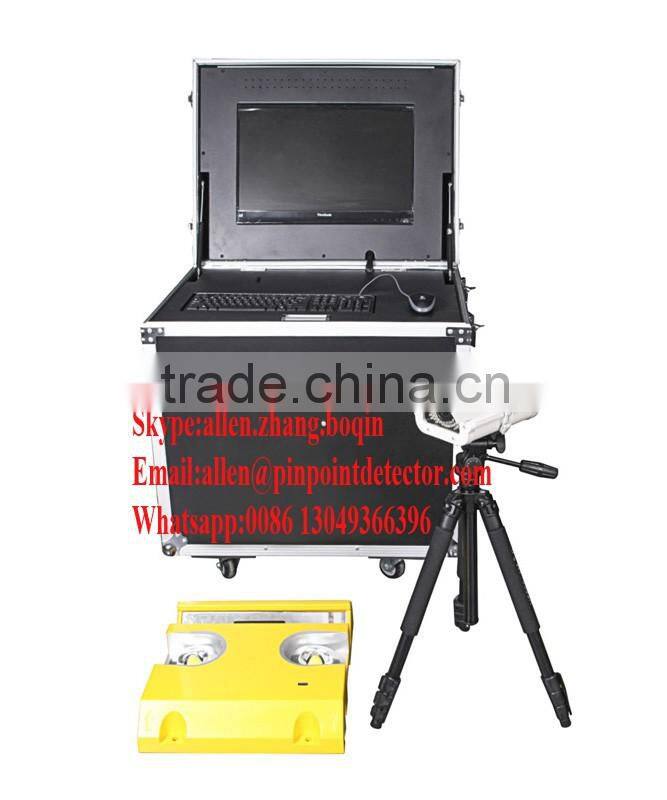

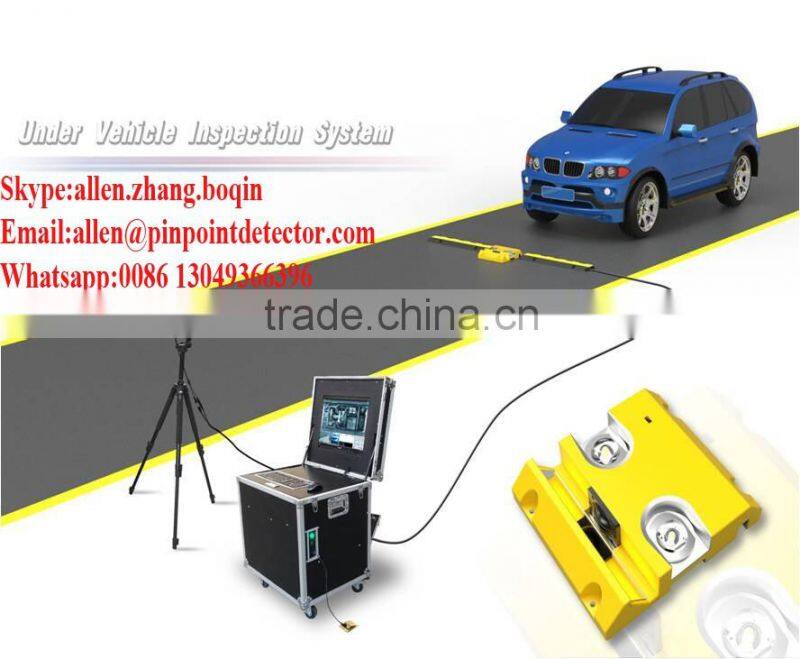

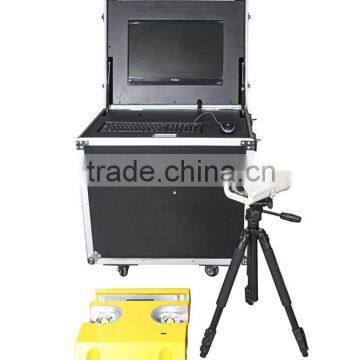

Mobile under vehicle inspection system, portable under car scanning system

Model: AT3000

  1 Vertical resolution of the image: 5000*2048 pixels
  2 Check the width viewing angle: < 4 meters
  3 Speed of vehicle: < 30km/h with ALPR(Automatic Licence Plate Recognition)
                                 < 70km/h without ALPR(Automatic Licence Plate Recognition)
  4 Effective Field of View(FOV):less than 170°
  5  Weight capacity: <20T
  6  Auxiliary light: 100W
  7 Water-proof grade: Ip68
  8 Scanning device weight: 24KG
  9 Scanning device volume: 450mm×400mm×88mm
 10 Communication interface: RS232/RS422
 11 Operating Temperature: -10℃ to 55℃
 12 Storage temperature: -40℃ to +75℃
 13 Operating voltage: 110-240V AC, 50-60HZ

 System Host

 1 Brand: Grantech (UFO6377H-SP1-953)
 2 CPU: Intel® Core(TM) 2 Duo CPU
    P8600 2.4GHz or higher
 3 Memory:2G( optional 4G)
 4 Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
 5 Hard Disk:SATA2 Hard Disk 500G
 6 Dual LAN (At least one Intel Gigabit)
 7 USB2.0 (Up to 4 pieces)
 8 Monitor: 22inch LCD, resolution up to 1920*1080

 Features

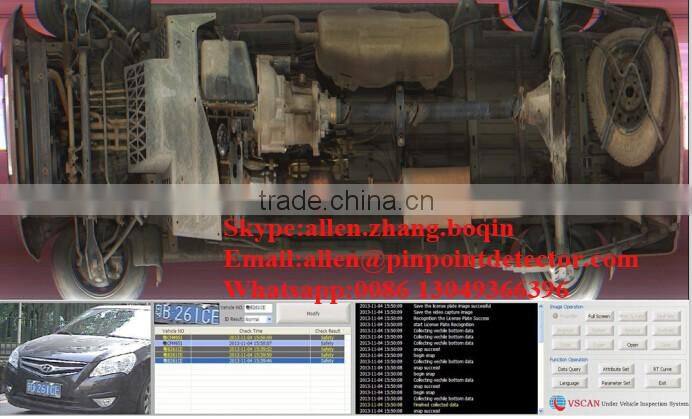

  1 Automatic digital line scan camera, with high-resolution and clarity of the image.
  2 The complete image of under vehicle scanning, without any omissions,
     and the image is clear, complete, no distortion, can be clearly observed that
     the object is not less than 2mm in diameter.
  3 Preparation of inspection processes to meet a variety of on-site needs.
  4 Multiple scene image monitoring, recording function.
  5 Multi-language user interface design.
  6 Strong scalability to easily achieve a variety of system linkage control.
  7 (Optional)ALPR(Automatic Licence Plate Recognition)
     (E.g.: anti-collision system, barrier, etc.).
  8 (Optional) Multiple devices networked control functions

Specifications of Number Plate Reading System :

1 Pickup device: 1/4 inch CCD image sensor

2 System of signal: PAL

3 Horizontal Resolution: 600TV Line

4 Min Illumination:0.5 lux/f1.2

5 Optical Zoom:27x

6 Digital Zoom: 10x

7 Backlight compensation:Auto

8 AGC:Auto

9 White balance:Auto

10 Electronic Shutter: 1/50-1/100000 sec

11 S/N Ratio :48db
