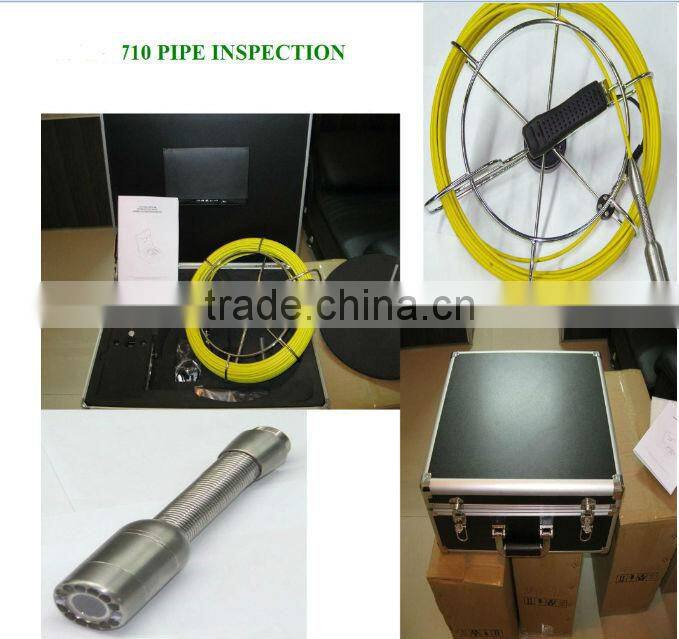

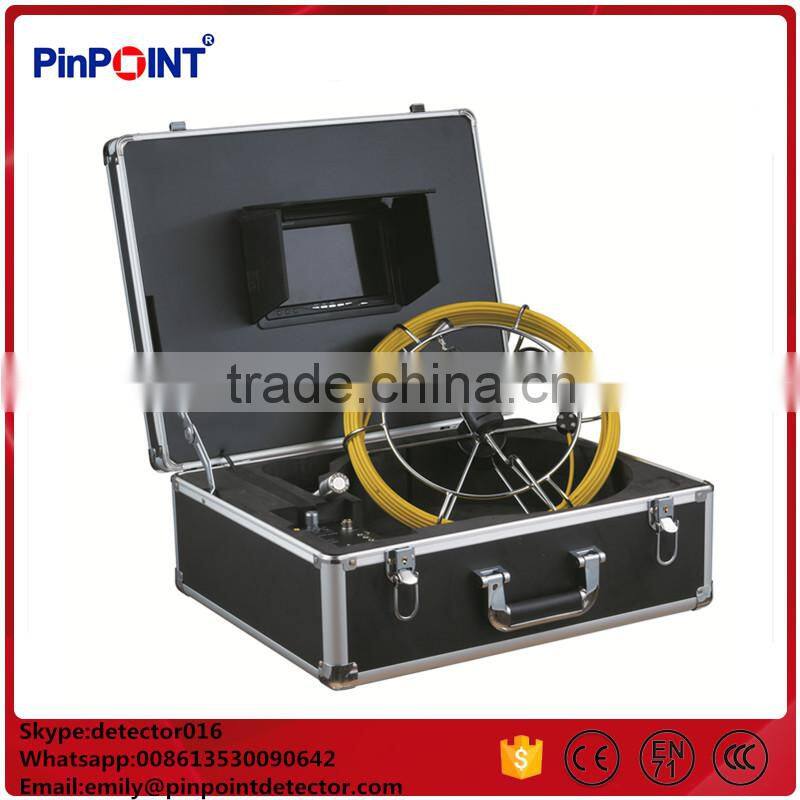

23mmx120mm Camera Water Pipe Inspection Camera With DVR Function and 50m Cable

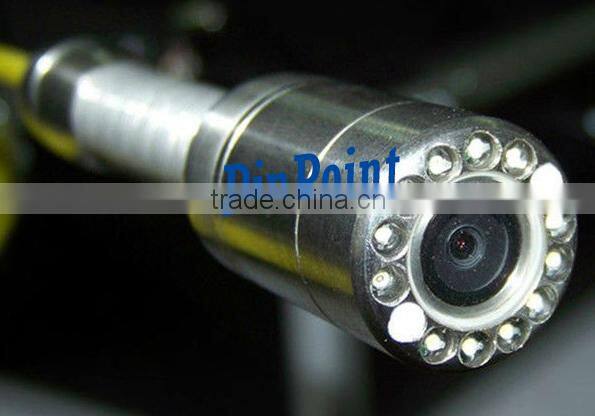

          Camera

1.Camera size

Φ23MM*120MM

2.Camera Housing material

Stainless Steel

3.Camera lens Glass

sapphire glass

4.Sensor size

1/4 inch

5.Pixels

PAL:720*576   NTSC:720*480

6.View range

120 °C

7.Illumination

12pcs bright light LED With adjustable brightness

8.Waterproof  level

IP68

9.Camera work current

100MA

10.Camera power supply

DC 12V

11.Operating Temperature

-10°C to +50°C

                             Monitor

1.Monitor size

7inchTFT-LCD color monitor

2. Pixels

1440*234

3. Monitor power supply

DC 12V

4.OSD language

English

5.Up, down left, right adjustable

6.16:9 4:3 model

7.Shock absorber hinges also acts as sun visor

8.Waterproof connector

9.Operating Temperature

-10°C to +50°C

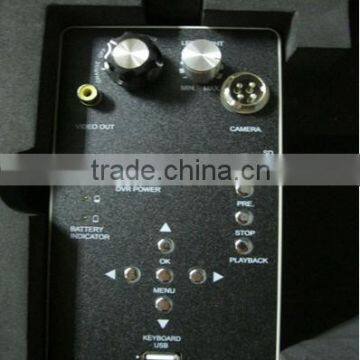

                              DVR

1.DVR power supply

12V

2.DVR work current

200MA

3.Digital clock and digital calendar

4.Battery level display

5. Pixels

720*567(D1)

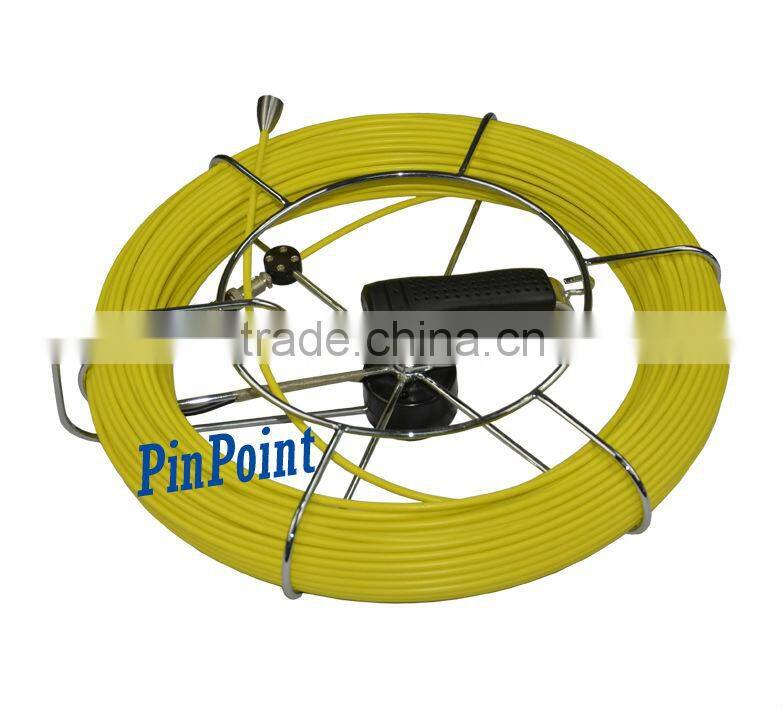

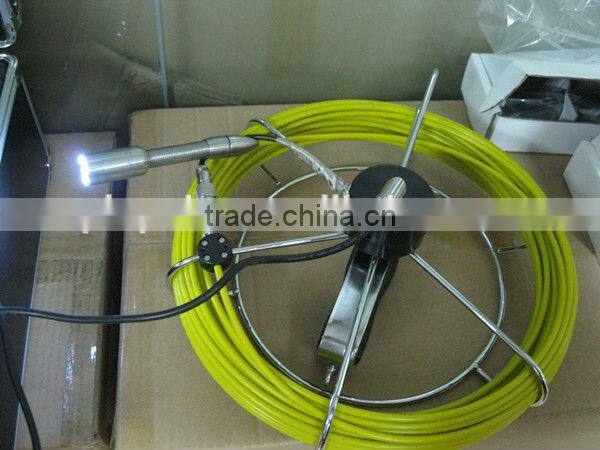

                            Push Cable Wheel

1.Cable size

Φ320MMX110MM(H)

2.Wire material

Fiberglass rod

3.Fiberglass length

20M(standard)/30M/40M

4.Fiberglass diameter

Φ4.8MM

5.Fiberglass color:

Yellow and blue

                               Battery

1.Battery

12V 4000MAH rechargeable li –ion battery(18650

2.Used time

7 hours

                             Charger

1.Input

AC100-240V~50/60Hz

2.Out put

DC 12V/1000MA

3.DC plug diameter

2.1M

                         SKIDS size

1. SKIDS1:φ40MM

1. SKIDS2:φ80MM

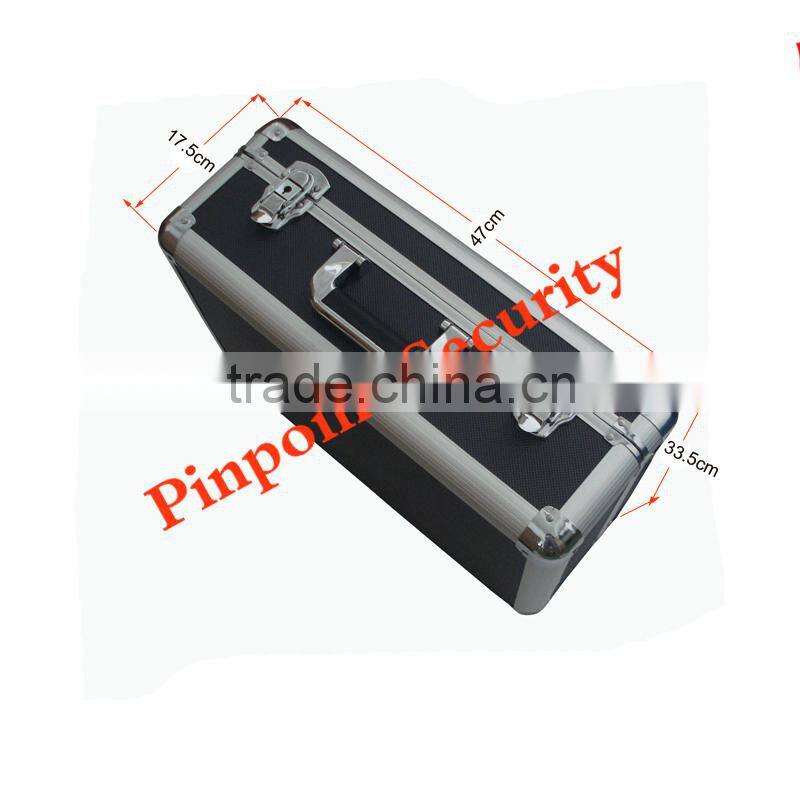

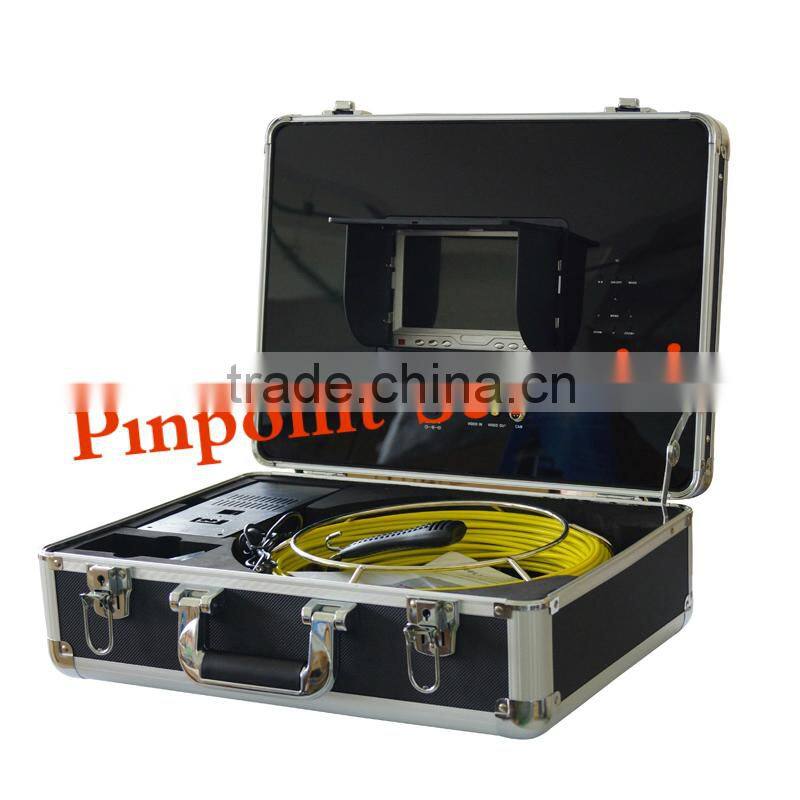

                       Aluminum Alloys Carry Case

Case Size

480*415*200MM

Case Material

Fire board+ Aluminum Alloys

Empty Case weight

3.4KG

Case Color

Black
