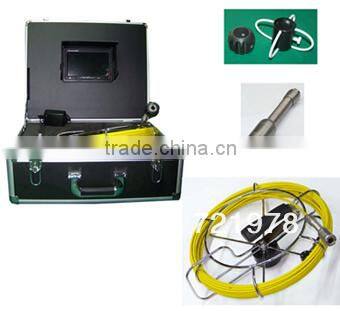

Pinpoint Staniless Steel Lens 40M Underwater Inspection Camera/Pipe And Wall Inspection/ Video Pipe Inspection Camera System

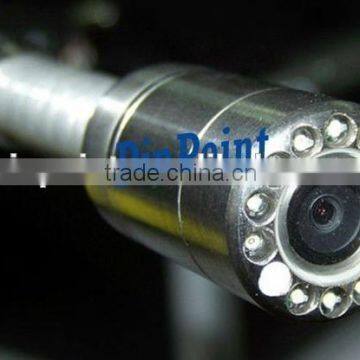

Camera

1. camera size:23mmx120mm   front size:45mm

2.Camera case material: stainless steel house stainless steel 304

3. Camera glass material: sapphire glass

4. sensor size:1/4 inch

5.Total Pixels:PAL:720X576    NTSC: 720X480

6. View angle: 120°.

7. Camera light: 12PCS white LEDS.

8. Special gold point touch connector

9. waterproof:IP68

10.camerawork current:100MA      camera power supply: DC 12V

11. LEDS ADJUASTABLE.

12.Work temperature:-10℃-50℃

Monitor

1. monitor size:  7inch  TFT color monitor

2. monitor Total Pixels:1440X234

3. monitor power supply: DC 12V

4. osd language: English

5. Up,down left,right adjustable.

6. 16:9  4:3 model

7. sunshade include

8. waterproof connector

9. Work temperature:-10℃-50℃

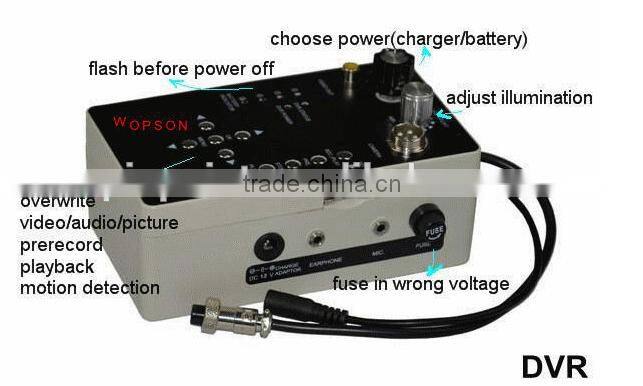

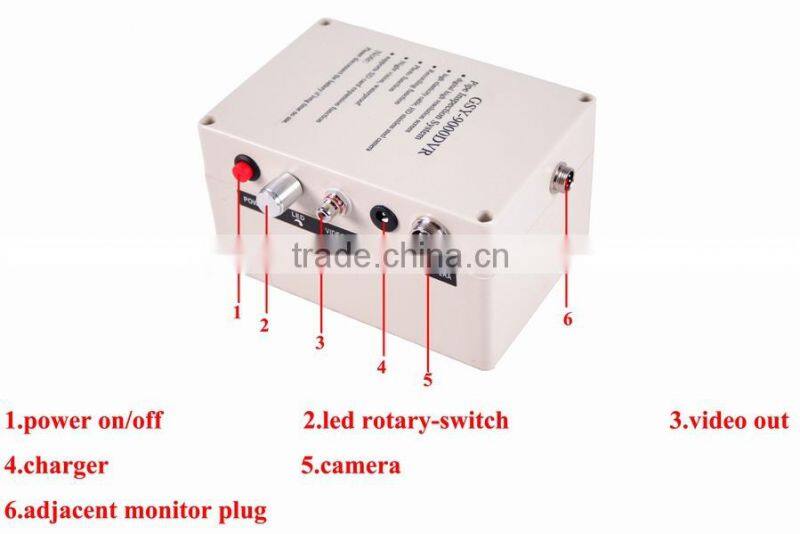

DVR

1. DVR power supply: 12V

2. DVR work current:  200MA

3. storage medium: SD card (max 32G)

4. Digital clock and digital calendar

5. DVR Total Pixels: 720X576   (D1)

6. picture snap and movie record

7. movie format: AVI

8. audio record (yes)

9. double earphone output

Audio input unit

1. Mic phone

2. clip type

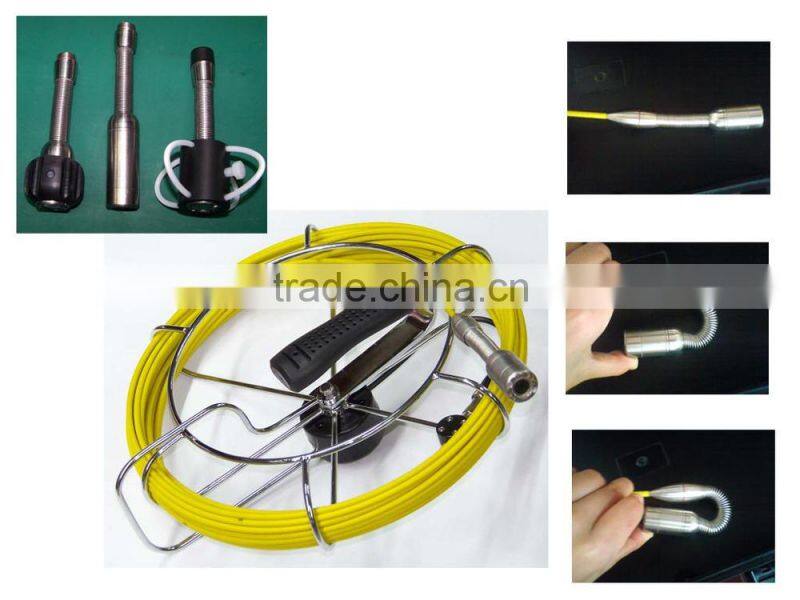

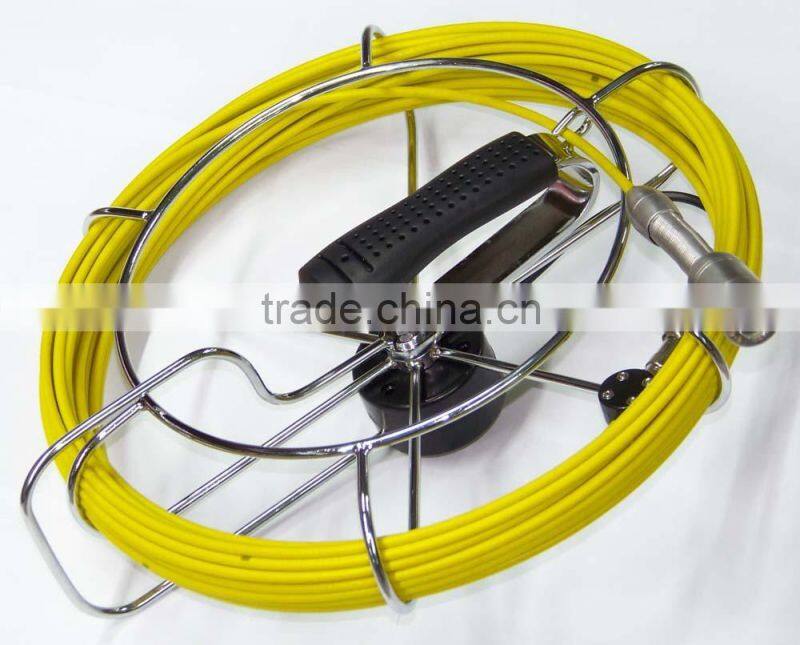

Cable wheel

Cable size:320MM(diameter)X110(h)

Wire material: fiberglass rod

Fiberglass length:20M( standard)

Fiberglass diameter:4.8MM

Fiberglass color: yellow

battery

Battery Type:  12V 4000MAH     rechargeable li –ion battery(18650)

Total work time :   7  hours

charger

input: AC90-260V        output: DC 12V    1000MA

Output cable length:1.5M

DC plug diameter : 2.1MM

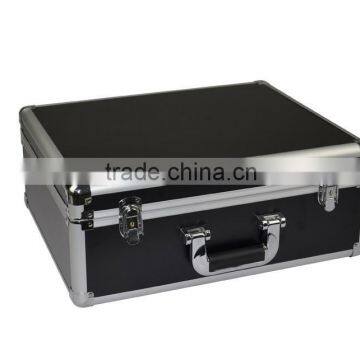

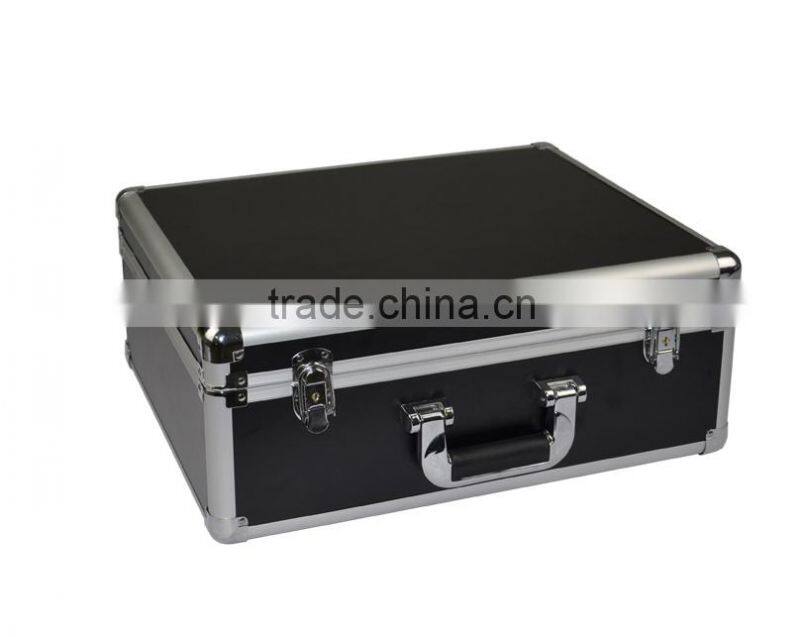

box

Box material: fire protection

Box size:48cm x 39cm x 19.5cm

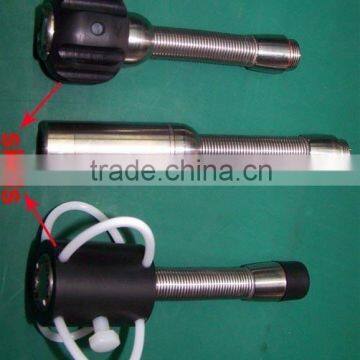

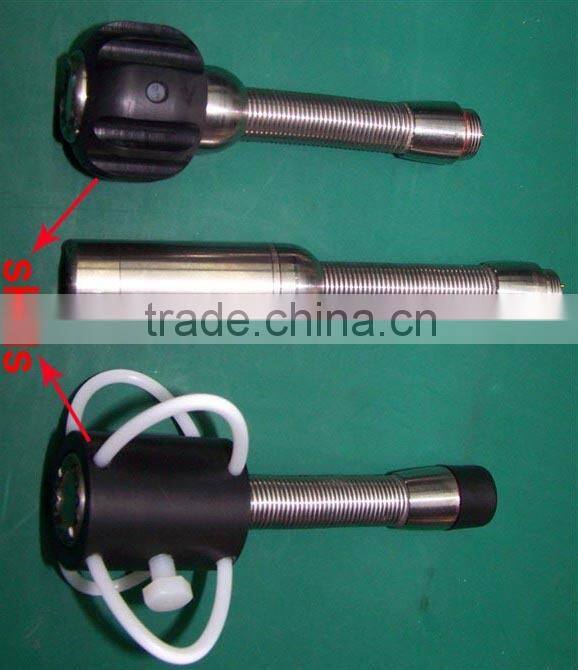

SKIDS size

1. SKIDS1: Φ40MM

2. SKIDS2: Φ80MM

Weight and cartoon size

Net weight: 7.5KG

Gross weight: 8.5KG
