LV Power Cable

FOB Price

Negotiable / Meter

1000 Meters(Min.Order)

Port QINGDAO/SHANGHAI/NINGBO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	HNTDDL
Model Number	VV,VLV,VV22,VV32	Insulation Material	Other, PVC or XLPE
Type	Low Voltage	Application	Underground
Conductor Material	Copper	Jacket	PVC

Product Description

Specifications

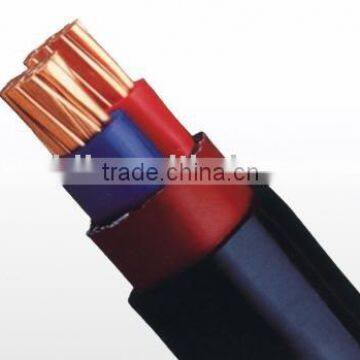

0.6/1kV CU/PVC/STA/PVC Power Cable is one of high quality products of our company.

0.6/1kV PVC cables (plastic power cable) is one of high quality products of our company. The product not only has good electric capability, but also has good chemical stabilization, simple structure, easy to use, and the laying of cable do not be limited by the fall. It is widely used at the transformer circuit which rated voltage is 6000V or under.

The product is produced against IEC60502 and IEC60331, . And the product can be produced against the standard of BS, DN, and the standard required by the clients.

1. The long-term permissible operation temperature of the conductor shall not be higher than 70

2. The max temperature of the conductor of cable should less then 160 when short circuit. (less then 5 second)

3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0

4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance

5. Light weight, perfect bending properties, installed and maintained easily and conveniently

6 Rated voltage: 0.6/1kV, 3.6/6kV

7 Number of cores: One, two, three, four, five

Type	Name	Usage
VV	PVC insulated PVC sheathed power cable	Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force
VLV
VY	PVC insulated and PE sheathed power cable	Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
VLY
	PVC insulated steel belt armored and PVC sheathed power cable	Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
VLV22
VV23	PVC insulated steel belt armored and PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
VLV23
VV32	PVC insulated fine steel wire armored PVC sheathed power cable	Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force
VLV32
VV33	PVC insulated fine steel wire armored PE sheathed power cable	Can be laid at indoor, underground .Cable can under take mechanism outside force
VLV33
VV42	PVC insulated thick steel wire armored PE sheathed power cable	Can be laid at indoor, underground,mining well .Cable can under take mechanism outside force
VLV42
VV43 VLV43	PVC insulated fine steel wire armored PVC sheathed power cable	Can be laid at indoor, underground ,mining well and the places of be terrible polluted. Cable can under take mechanism outside force
