Home > Products > AAC-All Aliminium Conductors > AAC Conductor following DIN48201
AAC Conductor following DIN48201
- Qingdao Shanghai Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | hntddl | |
| Model Number | AAC | Insulation Material | Other, N/A | |
| Type | High Voltage | Application | Other, Overhead, Overhead | |
| Conductor Material | Aluminum | Jacket | Other, N/A |
Product Description

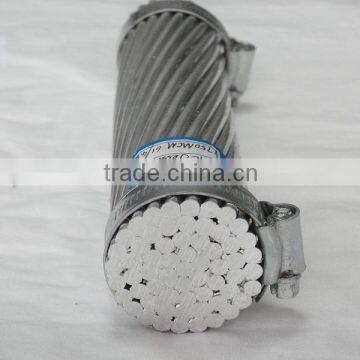

AAC Conductor following DIN48201
AAC (All Aluminum Conductors)
ASC (Aluminum Stranded Conductors)
APPLICATION:
AAC used in overhead electric power transmission and distribution lines with various grade voltages. Mainly used in urban areas for electricity transfer where the spacing is short and the supports are closer together. Apart from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties.
CONSTRUCTION:
Aluminum 1350-H19 wires, concentrically stranded.
The most commonly used stranding consists of 7, 19, 37, 61 and 91 wires.
Bare concentric-lay-stranded aluminum wires constructed with a straight round central aluminum wire surrounded by one or more layers of helically laid aluminum wires.
In all constructions, the successive layers shall have opposite directions of lay, the outermost layer being right-handed.
STANDARDS:
IEC 61089, ASTM B231,BS 215 Part 1, EN 50182, DIN 48201 Part 5 etc.
We could producing according to the customers' requirements.Welcome your request for any quotations!
