Home > Products > New Products > Millng Machines 6VH-BC

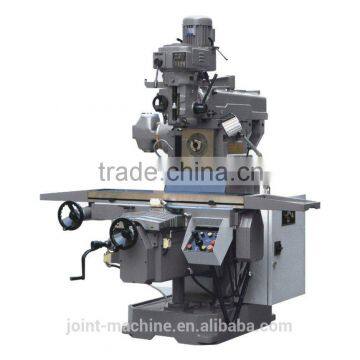

Millng Machines 6VH-BC
Negotiable
/ Set
1 Set(Min. Order)
- Shenzhen China
- T/T D/P D/A Credit Card PayPal
You May Like
-
Millng Machines 4VH
-
Look Here !100% Real Price&100% Warrantee CNC Rock Deep Hole Crawler Drilling Rig Machine
-
New electronic professional cnc mould die engraving and milling machine CM650B Made in China
-
High speed and high accuracy cnc mould die engraving and cutting machine CM650B Made in China
-
cnc mould die engraving and milling machine CM650B Made in China
-
High quality High speed cnc mould die graphite engraving and milling machine CM650B
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | OEM/JOINT | Model Number | 6VH-BC | |
| Type | Vertical | CNC or Not | Normal | |
| Dimension(L*W*H) | 2200*2060*2370MM | Weight | 2750KGS | |
| Certification | CE | Warranty | 1 year |
Product Description
Specifications
Fit for the semi-rough, precise pricessing.Taiwan milling head and ball screw.
Power feed or machanic feed is optional.
Specifications
1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.OEM Manufacturer;
4.CE.
Features:
1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.Head tilt angle ±45°/±90°;
4.OEM MANUFACTURER;
5.For electric parts, mould and hole, slot and frame processing;
6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm;
7.Spindle tolerance 0.002mm;
8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.
Specification:Milling machine 6VH-BC
| Model | 6VH-BC |
| Table size | 1300*300mm |
| Travel (Longitude) | 900mm |
| Travel (Cross ward) | 330mm |
| Travel (Vertical) | 350mm |
| Travel of spindle quill | 140mm |
| Max.Distance from the spindle nose to table | 450mm |
| Spindle (Rotation speed) | 60-820RPM/(9 grades) |
| Spindle (Taper) | NT40 |
| Spindle (Rated power) | 5HP |
| Tilt Angle (Forward and Backward) | ±45° |
| Tilt Angle (Left and Right) | ±90° |
| Dimension | 2200*2240*2370mm |
| Net weight | 2750kg |
Accessories:
1.Standard accessories:
Oil pump
Working light
Draw bar
Way cover
Operation manual
Tool and toolbox
2.Optional accessories:
NT40 Milling chuck
Clamping kits
6" vise
Coolant system
DRO
Power feed
Elevating motor
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photos:
