Home > Products > Plug-in Terminal Block > Pluggable Terminal Block 5.08mm
Pluggable Terminal Block 5.08mm
USD $0.01 - $1
/ Piece
1000 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Ningbo /Shanghai/Shenzhen
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JFF | |
| Model Number | JFF2EDGKB-5.0/5.08 |
Product Description
Product Description

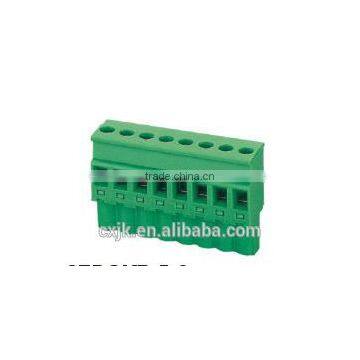

PCB Pluggable terminal block
| Rated voltage | 300V | 320V |
| Rated current | 15A | 20A |
| Wire range | 28-12AWG | 2.5mm2 |
| Withstanding voltage | 4.0KV | |
| Mechanical | ||
| Torque | 0.4Nm(3.5Lb-In.) | |
| Ambient temperature | -40°C~+105°C | |
| Strip length | 7mm | |
| Dimensions | ||
| Pitch | 5.0mm(.197"),5.08mm(.200") | |
| Poles | 2P-24P | |
| Material | ||
| Housing | PA66,UL94V-0 | |
| Screws | M2.5,steel,Cr3+ Zn plated | |
| Contact | Phosphor bronze | |
| Cage | Brass,Ni plated | |
Drawing
Our Services
1.Material and color can be customized.
2.Holes can be added or modified as per your request.
3.For modification, there will be surcharge.
4.Drawings from website is just for reference
