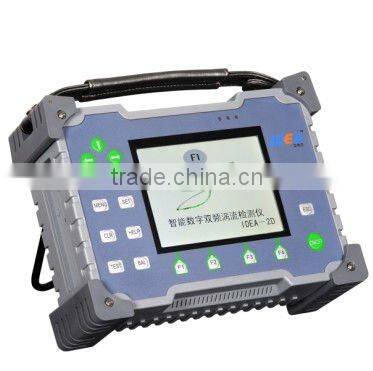

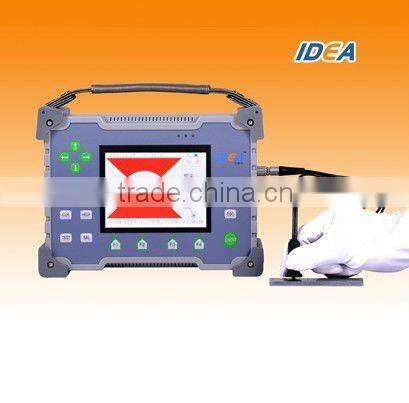

Multi-Function (Eddy Current+ Magnetic Memory)Test Machine

Model

IDEAP0401

Name

Multi-Function Test Machine

Type

Multi-function(Eddy current+ magnetic memory)

Description

Upgraded from IDEAP0101 and IDEAP0201, IDEAP0401 adopts the latest micro-devices and high-performance processors which makes it not only has the integrated functions and features of the former two one but also applicable to outdoor field testing.

Specification

Eddy current function+ magnetic memory function

Advanced processor to improve the testing speed.

Parameter

Eddy Current Technology Parameters:

1. Large screen, high-luminance 5.7 inch color TFT-LCD” to resolve the inadequacies of traditional monochrome screen

2. Testing range: 10 Hz~10 MHz, perfect adjustment function

3. Gain: 0 dB~99 dB, continuously adjustable

4. Phase: 0~359°, flexible phase rotation
5. Detection speed:> 100M/min, to meet the various testing requirements

6. Detect precision: up to 0.01mm, with a high-precision detection capabilities
7. lift-off height:> 3mm, no need for surface clearness

8. Fast digital electronic balance

9. phase / non-amplitude, box and fan box alarm modes to meet your testing needs

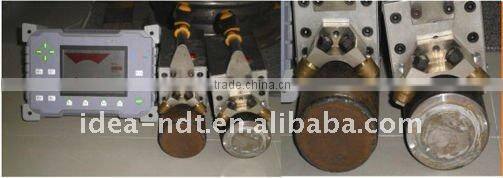

10. Probe Drive: 1 ~ 8, meet different probe structures requirements, thus to achieve multi-functional in the real sense

11. independent X and Y gain adjustment
12. Digital Filtering: High-pass frequency (0Hz ~ 2000Hz), low-pass frequency (0Hz ~ 2000Hz
13. USB 2.0 (Host) connection for output
14. eddy current testing signal playback, analysis, archiving, printing features

Magnetic memory technology parameters:
1. Detection channels: 4
2. Real-time trace memory of four signals
3. Gain range: 0 ~ 99dB continuously adjustable, 0.1dB step
4. A variety of display modes: waveform, numerical
5. Fast digital electronic balance

6. DSP digital filtering: low pass, high pass (0hz ~ 2000hz)
7. lift-off height: 150 mm
8. Minimum step: 1mm
9. Detection speed :10 - 30m / min

10. Minimum magnetic field resolution: 0.1GT
11. Multiple hardware alarm output port

12. Mass storage of a variety of testing procedures and test data
13. Optional professional magnetic memory data analysis Systems
14. Life evaluation and data query of different materials,
15. Real-time alarm modes of various levels

16. Can automatically increase or decrease the impact of the geomagnetic field
17. A variety of ways to query or make a comparison of the testing data
18. Optional Locator
19. Operating System: Linux 2.6
20. Center coordinates: X, Y adjustable
21. Operating Language: Chinese, English
22. Automatically display the calendar, time, battery capacity
23. Simple, real-time on-screen instructions
24. Charging power supply: 110V ~ 220V
25. On-line hot-key graphics, text, help.
26. ambient temperature: -20 ° ~ 50 ° C
27. Built-in rechargeable lithium battery 8000MAH
28. Instrument Size: 210 MM x 130 MM x 90 MM
29. Coordinate System: Cartesian coordinates, polar coordinates
30. Instrument Weight: 2.0KG

Application

1. Aerospace, aviation
2. Electric power, petrochemical
3. Metallurgical, mechanical
4. Nuclear energy, military
