Multi-frequency remote field eddy current detector/RFT

Specifications

1 multi-frequency remote field eddy current detector/RFT

2.Simple operation
3. high-luminance display

multi-frequency remote field eddy current detector

Description:

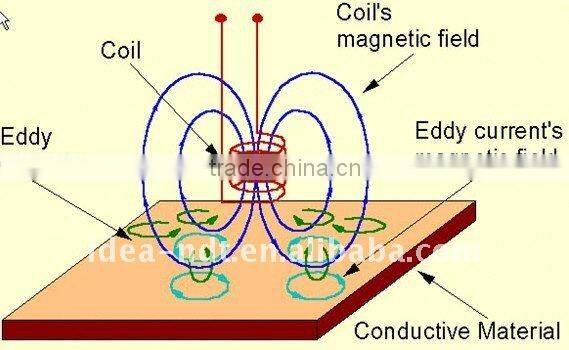

IDEA-ET/RFT intelligent all-digital multi-frequency, remote field eddy current detector is a new generation of eddy current non-destructive testing device. With the adoption of the most advanced digital electronic technology, multi-frequency eddy current technology, remote field eddy current technology, and microprocessor technology, it can achieve effective inner wall and outside wall cracks detection of the ferromagnetic and non- ferromagnetic metal pipes in real time.

IDEA-ET/RFT has a complete set of eddy current testing system. integrated with the conventional multi-frequency, multi-channel, far-field eddy current testing systems, it can also turns to be high-performance, multi-purpose, intelligent eddy current testing apparatus.

With four relatively independent testing channels, IDEA-ET/RFT can receive four absolute and four differential eddy current signals. via the soft swifching, the instrument can also be switched to be two dual-frequency eddy curent testing detectors with two simultaneous probe connections.The testing frequency is 50Hz to 10MHz with a variable frequency range for choices (far field:1HZ-10KHZ), and it has the function of weak testing signals amplification and strong anti-jamming capability. Applied to the tube cracks testing, with inner-through probe, it can easily detect the defects such as innder/outside wall surface crack, pits, corrosion, thinning, wall materials and internal defects. And it has the feature of computer-controlled auto-testing, digital display, high testing sensitivity, stable performance and so on.

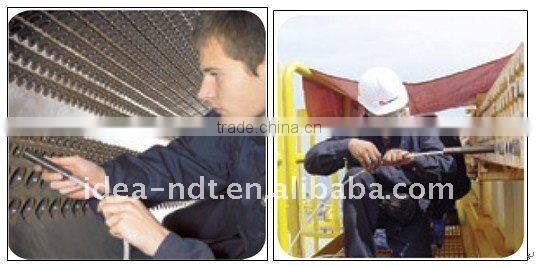

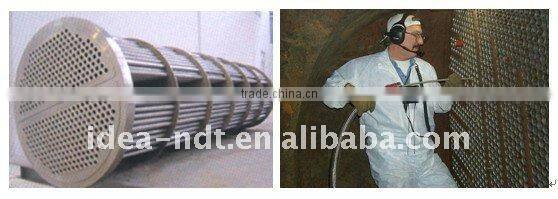

Therefore, IDEA-ET/RFT particularly suitable for various in service metal (copper, titanium, aluminum, zirconium and other metal material) tubes and metal parts flaw detection and wall thickness measurements and evaluation analysis in nuclear energy, electric power, petrochemical, aerospace, aviation and other departments. More detailed, such as the testing of before service or in service boiler tube, heat exchanger tubes, underground pipes and cast iron pipes,etc.

Specification:

Four independent selectable frequency

Three mixing units( automatic mixer)

Real-time trace memory, 8 eddy current signals

Fast digital / analog electronic balance

Frequency range: 50 Hz~10 MHz (remote field:1HZ~10KHZ)

Gain range: 0~99dB, continously adjustable, the work of each file 0.1dB step

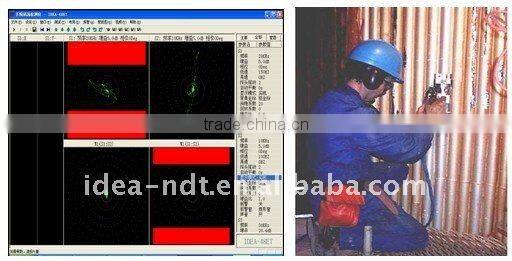

Phase Rotation: 0 ~ 359 °, continuously adjustable, precision 1 °. In the phase-setting process, the screen can display in real time the impedance phase plan and the eddy current signal amplitude and phase values after the phase change

adjustable probe stimulus, 1-8.

8 trace impedance plane and eight internal belt curve analysis showes and time-base scan shows

Delayed blanking of memory trajectory

Menu-driven man-machine dialogue (in English and Chinese versions, Chinese Traditional / Simplified fonts optional)

Operation systems: Win98,WinMe,Win2000,WinNT ,WinXp

Automatic signal amplitude, phase measurements, and eddy current signals slowly (adjustable) playback

Digital Filtering: Low-pass: 0hz ~ 2000hz, high-pass: 0hz ~ 2000h

Configuration analysis function

can be equipped with absolute, differential and self-comparison coils, including through type, interpolation type, flat type, point, rotary and other probe

 unique non-constant-amplitude phase / amplitude domain Alarm

multiple hardware alarm output

Real-time alarm output, delayed alarm output

mass storage of various test procedures and test data

C-scan display

Automatic Phase/ Defect depth curves show

Rectangular coordinate system and polar coordinates background for choices

One-screen display the cross-section diagram of in-service pipeline, the rank numbe of tested tubes,and the eddy current testing signals.

Classified marks of pipe cross-section diagram, to form eddy current testing overview map of in-service pipeline

Classified statistical test results (tables and histogram display), to facilitate the cumulative analysis of test results

Automatically display the calendar and time

Optional Data Analysis System

Special Note:

          IDEA-ET/RFT can be equipped with the following software systems

          IDEA-NDTS1 intelligent eddy current data analysis system (software)

          IDEA-NDTS2 tube map editing system (software)

the Intelligent network system compatible with non-destructive testing to achieve some latest functions such as remote field parameters control, data sharing and handling between senior analysts and field  personnel, which greatly reduces the workload of senior NDT engineers and improves the testing  efficiency.

Application areas:

power plants, testing companies, special equipment .boilers, pressure vessels, etc
