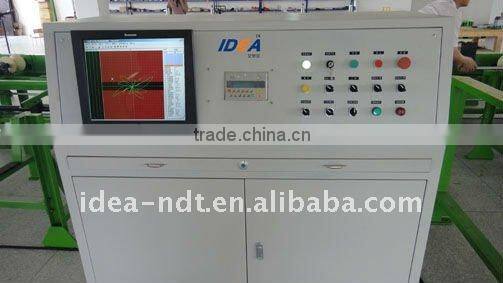

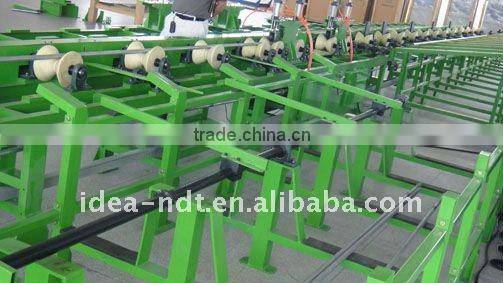

Automated On-line Eddy Current Testing System for Seamless Steel Tubes
- Xiamen
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | IDEA | |
| Model Number | IDEA-ET | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description
Specifications
Automated On-line Eddy Current Testing System for Seamless Steel Tubes1.High sensitivity
2.to match the production line
Automated On-line Eddy Current Testing System for Seamless Steel Tubes
1.High sensitivity
2.to match the production line
Advantage
1. Adopted with the most advanced digital electronic technology, remote field eddy current technology and microprocessor technology.
2. Digital display, high sensitivity, stable performance, strong anti-interference ability
3. The role of multi-frequency, effectively inhibit the interference signals from other parts.
4. With advanced performance of conventional multi-frequency, multi-channel eddy current testing systems.
5. Once passing through the pipe, it can be detect inner and outside wall surface cracks, pits, corrosion, wall thinning, and wall materials and internal defects.
6. Can switch into multiple single-frequency eddy current instruments via the switch
7. Equipped with professional data analysis software to improve the detecting efficiency of the detecting personnel.
Technical Parameter
Test Channel | 2,4,6,8,16 |
Detection Speed | 1~600m/min |
Frequency Range | 10 Hz -- 10 MHz |
Phase | 0 -- 359 °, continuously adjustable, precision 1° |
Gain Rage | 0 -- 99.0 dB, continuously adjustable, precision 0.1dB |
Display | Impedance, time-base |
Digital Filtering | Low-pass 0 Hz -- 2000Hz, High-pass 0 Hz -- 2000Hz |
Alarm | Multi-mode, non-constant-amplitude phase/amplitude domain Alarm, built in alarm |
Alarm Output | Real-time or delayed output, acousto-optic alarm output |
Marking | Delayed and Fixed-length marking , the accuracy is 0.001S/mm |
Record | Automatically record and display the defects and their positions |
Other | With the head and tail signal removal function, can store a variety of testing procedures and testing data |
Application
1. Steel parts, steel billet, round steel, bar, pipe, weld, cable and other products testing
2. In-service pipe, metal parts testing, analysis and evaluation of nuclear energy, electric power, petrochemical, aerospace, aviation and other departments
3. Boilers, petrochemical industry, pressure vessels, pipelines, oil storage equipment corrosion detectio
