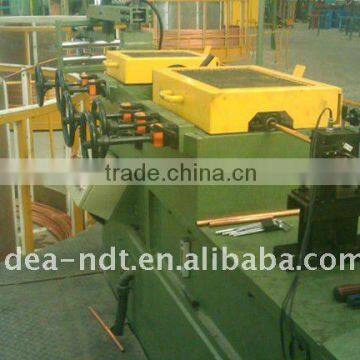

Wire materials on-line eddy current testing system

Specifications

1.Wire materials on-line eddy current testing system
2exchange,power phase controller
3.AC magnetization eddy current

IDEA company specially design and development of eddy current testing instruments and data processing system for linear material testing, can draw a real-time signal curve , reflect the testing results. Curves are given the real-time waveforms for the depth of the crack. No matter how to set the thresholds, it accurately described the specimen for the distribution of the crack.  Can storage, processing, statistics, searching , edit and print the testing reuslts, then form the test report .

Technical Parameter

1.Detection diameter : 0.1mm--20mm

2.Detection speed: 1—600m/min

3.Detection Accuracy: 5%OD

4.Display mode : A-type, B-type, Time base, Impedance

5.Real-time storage detection results, dynamic record

6.Database management, searching, editing, statistics

7.Can remote monitoring, visiting, managing

8.Automatically generate inspection reports (not only including batch NO., date, operator , equipment setup, but also the number of inspection, acceptance number and rejection number)

9.Automatically record and display the defects and their position and size.
