Factory diretly sale transformer car accessories 15W

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

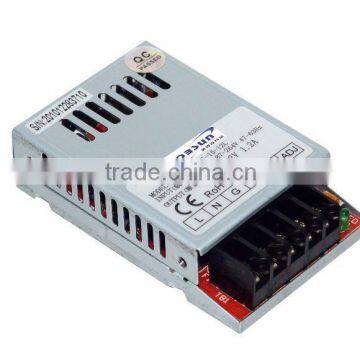

transformer car accessories
1.15WL Standard LED Power Supply
2.The most thiner structure
3.One year warranty
4.CE&ROHS

transformer car accessories

Product Electric Parameters
Input specification	Input voltage		AC90V---264V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Output voltage can be adjusted		±10%
	Start-up time		leq1S(input230V Io=100%)
	keep time		more than or equal to 20mS (input230V,Io=100%)
	Voltage regulation		(Full load) leq0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input---ground		1500VAC/1min
	Input---ground		500VAC/1min
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards	According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	leq2000M
Structure	Size (mm)	77(L)48(W)20(H)
Cooling method	Cooling method	Natural cooling air convection
Weight	0.045KG/PCS
Product Type Table
Product model	output specification		ripple, noise	efficiency
S-15-5L	5V	3A	50mV	76%
S-15-9L	9V	1.5A	70mV	78%
S-15-12L	12V	1.1A	100mV	80%
S-15-15L	15V	1A	100mV	80%
S-15-24L	24V	0.5A	100mV	80%
S-15-28L	28V	0.5A	100mV	80%
S-15-36L	36V	0.4A	100mV	80%
S-15-48L	48V	0.25A	100mV	82%
