medical power supply 40W with Multiple protections

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

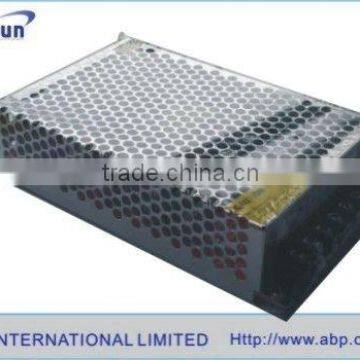

medical power supply
1.High power and low power consumption
2.full tested before shipping
3.Long cycle life

medical power supply

Product Electric Parameters
Input specification	Input voltage		AC90V---264V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Output voltage can be adjusted		±10%
	Start-up time		leq1S(input230V Io=100%)
	keep time		more than or equal to 20mS (input230V,Io=100%)
	Voltage regulation		(Full load) leq0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input---ground		1500VAC/1min
	Input---ground		500VAC/1min
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards	According with GB9254, EN55022 class A
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	leq2000M
Structure	Size (mm)	110(L)78(W)35(H)
Cooling method	Cooling method	Natural cooling air convection
Weight	0.248KG/PCS
Product Type Table
Product model	output specification		ripple, noise	efficiency
S-40-3.3	3.3V	8A	50mV	66%
S-40-5	5V	8A	50mV	76%
S-40-9	9V	4.5A	70mV	78%
S-40-12	12V	3.5A	100mV	80%
S-40-15	15V	2.7A	100mV	80%
S-40-24	24V	1.7A	100mV	80%
S-40-28	28V	1.5A	100mV	80%
S-40-36	36V	1.2A	200mV	80%
S-40-48	48V	0.85A	240mV	82%
