Foshan for 4-12 mm thick sheet metal coil Leveler and Cut to Length Line
- Shenzhen Guangzhou
- T/T Credit Card PayPal
You May Like
-
fast spped metal rolling plate leveling machine
-
silicon steel coil straighting and leveling cut to length line
-
Foshan Design for 0.2-2.0 Thick 1650 wide high precision Galvanized steel coil leveling and cut to length line
-
Carbon Steel Coil, Stainless Steel Coil Plate leveling and cross cutting production line
-
steel sheet roll strightening and leveling cutting machiner manufacturer in Guangzhou
-
High accuracy 1650mm width leveler and straightener cut to length line supplier in Foshan
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | HJ | Model Number | JLS | |
| Voltage | 220V or 380V or 415V | Rated Power | Kw | |
| Dimension(L*W*H) | Standard | Weight | Depend on customized | |
| Certification | CE ISO | Warranty | one-year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
steel coil cut to length machine | |
Inquiry details | |
Material: AL,GI, HR, SS, CR, HRC etc. | Thickness:0.2-2.0mm (max is 12mm) |
Coil ID: 508 or 610mm | Coil max width: 200~~2000MM |
Coil max weight: 8T~~30T | diagonal accuracy: ±1.0mm(based on 1000mm sheet) |
Monthly production: 500T~~4000T | Leveling accuracy: ±1.0mm/m2 |
Speed: 15~~60m/min | linear Tolerance:±0.5mm |
---introduction of steel coil cut to length machine
steel coil cut to length machine is widely used for auto parts, annealing, metal sheet, automobile parts, metal case, metal punching, package steel strips industries, Etc. Our steel coil cut to length machine has been exported more than 50 countries, also win good reputation from our customers, and we will be stronger and have a good team for design and development. We always win with our qualified quality, and to cooperate with you is our biggest honor.
Parameters of aluminum coil slitting machinery | ||||
Model type | Thickness(mm) | Max width(mm) | Speed(m/min) | Power(KW) |
650 | 0.2-1.5 | 200-600 | 60 | 70 |
| 1.0-4.0 | 200-600 | 50 | 85 |
| ≥4.0 | 200-600 | 45 | 100 |
850 | 0.2-1.5 | 300-800 | 60 | 85 |
| 1.0-4.0 | 300-800 | 50 | 100 |
| ≥4.0 | 300-800 | 45 | 120 |
1350 | 0.2-1.5 | 300-1300 | 45 | 120 |
| 1.0-4.0 | 300-1300 | 40 | 150 |
| ≥4.0 | 300-1300 | 30 | 180 |
1650 | 0.2-1.5 | 300-1600 | 40 | 170 |
| 1.0-4.0 | 300-1600 | 30 | 240 |
| ≥4.0 | 300-1600 | 30 | 280 |
2200 | 0.2-1.5 | 500-2000 | 30 | 280 |
| 1.0-4.0 | 500-2000 | 25 | 340 |
| ≥4.0 | 500-2000 | 20 | 380 |
Machine Composition
1 | Loading coil car with saddle |
2 | Decoiler |
3 | Hydro support arm |
4 | 4 Hi leveler |
5 | Loop pit |
6 | Guiding device |
7 | Pinching NC measuring device |
8 | Hydraulic shearer |
9 | Conveyor belt |
10 | Stacker |
11 | Hydraulic system |
12 | Lubricate, pneumatic system |
13 | Electric system |

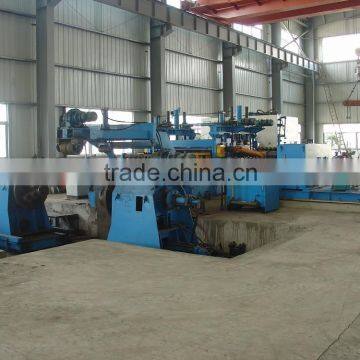

I. cutting into length line machine for the steel coil
Our automatic cut-to-length production line is high-speed and precise with workstations for uncoiling, straightening, measuring, cross-cutting to length and folding. The machine consists of feeding truck, assisting support, decoiler, hydraulic shear, leveler, stop block, encoder scale, plate shearing machine, conveying table, pneumatic stacker, output trolley, hydraulic system and so on. The whole line is controlled by PLC with computer display. We mainly apply computer-control system of brands Mitsubishi, Yaskawa, Siemens, Baumueller, Delta, and Schneider. The thickness for material can be from 0.2mm to 12mm, width from 300mm to 2000mm, load weight above 25T, cutting precision 0.5mm/m, line speed 60m/min.
---Daily application for this machine line
After-sale Services
1.All of the machinery have 1-year guarantee from the day installation.
2.After the guarantee, we just charge the basic cost for metal parts.
3.All of the specification and other details will be never reveal to any third companies.
Accuracy Show
1.You can touch the slit or cut place with your hands, it won't hurt your skin cause little burr on slit or cut area
2.We design slitting mechine line max speed can be reach 200m/min, in this industrial many company just offer 120m/min;
For cut to length machine, we max speed can be reach 80m/min, in this industrial many company just offer 60m/min.
3.For cot to length line to be sheet, the length and width tolerance is lower than international tolerance.
4.We company ,machinery had exported to over 50 countries, include India, Indonesia, Middle east, Africa, South east os Asia, and South America.
Foshan Hongjia Machinery Co.,LTD is one of the biggest supplier for steel coil slitting line and cut to length line which has years of experiences. We company established in 2003, we got many brand and quality certificate from ISO, Guangdong province and Foshan government, also include science and technology association.Our equipments has been exported to over 50 countries. We know deeply about the reputation from our quality and after-sale services, so for better quality and for on time after-sale services, we had a very strong design and after sale department team group. We grasp the quality from raw material, each step of processing, installation, debugging in our workshop, deliver the perfect machinery to customers' workshop. So we grow up quickly with our customer together.
Today you choose Hongjia, tomorrow enterprise more brilliant.
---Workshop view
---Certificates for our quality and reputation
---We are in the overseas
