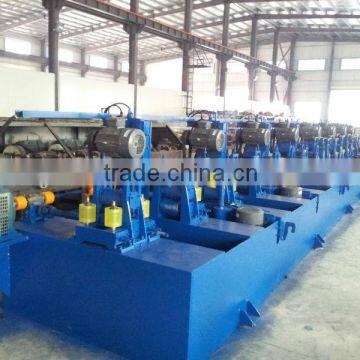

durable steel square tube polishing machine

Speed(about)

3-10m/min

2-8m/min

2-6m/min

1-4m/min

Pay Off/Coiler

Twin Head or single Head.
)

Double

Double

Double

List

Max.Coil Loading
Capacity in Kgs
)

2T

2T

2T

2T

Drum Expansion

Expandable & Collapsible type

Manual Back tension
breaks

Manual(With locking system.)

Turned positioning

Manual

Strip entry Gide roll Assembly

No.Of Horizontal entry guide)

2sets or 4 rolls(

No.Of vertical entry guide)

2sets or 4 rolls

Forming Section / Break down pass

No of Horizontalforming Stand

3

3

3

3

No of vertical forming stand(idle)

2

2

2

2

Cluster Roll set

No. Of Slides

3

3

3

3

Fin Section )

No. Of Horizontal stands)

3

3

3

3

No. of vertical stands
)

2

2

2

2

Details of Squeeze roll Section )

Type(

Vertical stand type 2 stands in each model

Roll shaft Diameter

25MM

30MM

35MM

45MM

No. Of Rolls

4 pcs

4 pcs

4 pcs

4 pcs

Details of welding roll assembly.

Tube cooling system
)

Included(

Inner blower device
)

Included

Welding torch holder
()

Included

Welding machine(Made in China)

Included

Out side bead remover assembly
In all four models there are three polishing & buffing stands with one vertical stand in between the exhaust system.

Ironing section
One horizontal stand immediately after the section.

Details of Sizing section

No. of horizontal
forming stand (Driven)
)

4

4

5

5

No. Of vertical forming
stands (Idle)

4

4

5

5

Driving motor / Out put
)

5.5KW

7.5KW

11KW

15KW

Details of Turkhead assembly )
2 turkhead assembly with all the for models which is capable of manufacturing square,rectangular & oval pipe
