PG 21 Nylon Cable Gland
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ETL or Empty Brand For Cable Gland | |
| Model Number | PG-13.5 | Protection Level | IP68 | |
| Material | Nylon |
Product Description
High Quality Wholesale IP68 Protection Grade nylon cable glands

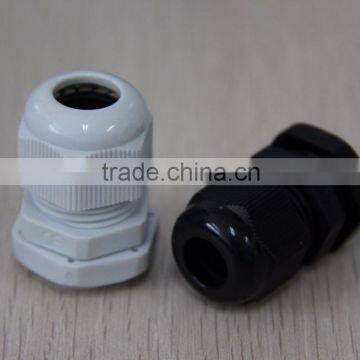

Product Pictures of m20 metal cable glands
Product Description of m20 metal cable glands
Item No : PG13.5
Cable Range : 6-12mm
Material of Body : Halogen Free Nylon 66
Material of Sealings : Neoprene
Color : White,RAL9005 Black,Grey
Protection Grade : IP68
Flammability: UL94V-2 , UL94V-0
Certification : UL (E363024), ROHS, IP68
Package : Polybag
Samples : Free of Charge
| Part No.: | D1 | D2 | L1 | L2 | L3 | L4 | B1 | Cable Range(mm) |
| PG-07 | 12.1 | 8.7 | 8.3 | 5 | 15 | 13.8 | 6.9 | 3.5-6 |
| PG-09 | 16.2 | 11.1 | 8.7 | 4.6 | 16.1 | 15.7 | 8.9 | 4-8 |
| PG-11 | 18.2 | 13.4 | 8.7 | 5.1 | 18.1 | 17.9 | 11.3 | 5-10 |
| PG-13.5 | 20.1 | 15.5 | 8.7 | 5 | 19.2 | 18.3 | 12.8 | 6-12 |
| PG-16 | 22.3 | 17.6 | 11.3 | 5.2 | 20.2 | 18.1 | 13.7 | 10-14 |
| PG-19 | 24.1 | 19.1 | 11.1 | 5.1 | 21.1 | 20.5 | 15.8 | 12-15 |
| PG-21 | 26.7 | 21.4 | 11.1 | 5.1 | 23 | 22 | 17.4 | 13-18 |
| PG-24 | 30.1 | 24.8 | 12.8 | 5.8 | 23.9 | 23.7 | 23.1 | 15.22 |
| PG-29 | 35.9 | 28.8 | 11.9 | 6.9 | 24.4 | 23.5 | 25.3 | 18-25 |
| PG-36 | 46.4 | 39.1 | 16 | 7.8 | 30.7 | 27.3 | 31.9 | 22-32 |
| PG-42 | 53.9 | 46.7 | 15.4 | 7.9 | 33.2 | 28.5 | 37.1 | 30-38 |
| PG-48 | 60.2 | 52.6 | 18 | 7.9 | 35.5 | 30.3 | 45.1 | 34-44 |
| PG-63 | 70.6 | 63.9 | 28.9 | 8.9 | 41.4 | 41.3 | 49.3 | 42-54 |
Diagrammatic Drawing of m20 metal cable glands
Application of m20 metal cable glands
More Products for You to Choose
About us
More than 10 years of export experience for cable & wire accessories. Main products: cable ties (nylon & stainless steel), cable glands, cable clips, terminals and terminal blocks, cable lugs, flexible conduit & connectors, wiring duct, other wiring accessories, Certificates: ISO9001 (SGS), BSCI, TUV, BV, VDE, UL, CE, IP68, RoHS and REACH We cordially welcome customers from all over the world to contact us and develop our markets together. We guarantee superior quality, competitive prices, and best after-sale services. |
Why Choose Us
♦ Certifications
Package of m20 metal cable glands
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery of m20 metal cable glands
| A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport |
| C.By Sea: 20-25 Working days at appointed port |
