Home > Products > AC Contactor > LC1-D Ac Contactor 15 years Professional manufacturer
LC1-D Ac Contactor 15 years Professional manufacturer
- 1000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Interline or Empty | |
| Model Number | LC1-D0910 LC1-D1210 | Electricity Type | AC |
Product Description
LC1-D & LC1-F Ac Contactor 15 years Professional manufacturer

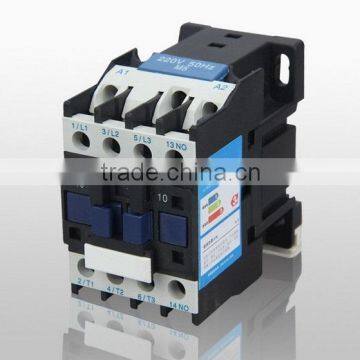

Product Pictures of AC Contactor:
CJX2(LC1-D)series AC contactors are suitable for AC 50/60Hz, Rated woking voltage up to/1000V, Rated operation current 9~330A under AC-3. It is mainly used for getting through/breaking circuits at along distance & for frequent starting/stopping & with thermal relay to compose a magenetic motor starter. The products according with GB14048.4 Standard.
Product Data Description of AC Contactor:
| Specification | |||||||||
| Model | Rated working current (A) | Rated heat current (A) | AC3 capacity of three-phase squirrel-cage motor AC3(KW) | ||||||
| 220/230V | 380/400V | 415V | 440V | 500V | 600/690V | ||||
| AC3 | AC4 | KW | KW | KW | KW | KW | KW | ||
| LC1-D09 | 9 | 3.5 | 20 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 |
| LC1-D12 | 12 | 5 | 20 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 |
| LC1-D18 | 18 | 7.7 | 32 | 4 | 7.5 | 9 | 9 | 10 | 10 |
| LC1-D25 | 25 | 8.5 | 40 | 5.5 | 11 | 11 | 11 | 15 | 15 |
| LC1-D32 | 32 | 12 | 50 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 |
| LC1-D40 | 40 | 18.5 | 60 | 11 | 18.5 | 22 | 22 | 22 | 30 |
| LC1-D50 | 50 | 24 | 80 | 15 | 22 | 25 | 30 | 30 | 33 |
| LC1-D65 | 65 | 28 | 80 | 18.5 | 30 | 37 | 37 | 37 | 37 |
| LC1-D80 | 80 | 37 | 125 | 22 | 37 | 45 | 45 | 55 | 45 |
| LC1-D95 | 95 | 44 | 125 | 25 | 45 | 45 | 45 | 55 | 45 |
| Number of the contact | 3P+NO | ||||||||
| 3P+NC | |||||||||
| 3P+(NO+NC) | |||||||||
| Matched auxiliry contactor | LA1-DN02(2NC),LA1-DN11(1NO+1NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC) | ||||||||
| LA1-DN40(4NO),LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC) | |||||||||
| Matched time delay auxiliary contact | Time delay after power on:LA2-DT0(0.1-3s),LA2-DT2(0.1-30s),LA2-DT4(10-180s) | ||||||||
| Time delay after power off:LA3-DR0(0.1-3s),LA3-DR2(0.1-30s),LA3-DR4(10-180s) | |||||||||
| External dimensions & Installation dimensions | |||||||||
| Type | Amax | Bmax | Cmax | a | b | φ | |||
| LC1-D09/12/18 | 45 | 74 | 80 | 35±0.50 | 50±0.50/60±0.60 | 4.5 | |||
| LC1-D25 | 56 | 84 | 93 | 40±0.50 | 50±0.50/60±0.60 | 4.5 | |||
| LC1-D32 | 98 | ||||||||
| LC1-D40/50/65 | 75 | 127 | 114 | 40±0.50 | 100±0.70/110±0.70 | 6.5 | |||
| LC1-D80/95 | 85 | 127 | 125 | 40±0.50 | 100±0.70/110±0.70 | 6.5 | |||
Inside Parts For Showing:
More Products for You to Choose:
About us
More than 10 years of export experience for cable & wire accessories. Main products: cable ties (nylon & stainless steel), cable glands, cable clips, terminals and terminal blocks, cable lugs, flexible conduit & connectors, wiring duct, other wiring accessories, Certificates: ISO9001 (SGS), BSCI, TUV, BV, VDE, UL, CE, IP68, RoHS and REACH We cordially welcome customers from all over the world to contact us and develop our markets together. We guarantee superior quality, competitive prices, and best after-sale services. |
Why Choose Us
♦ Certifications
♦ Advantages
Delivery of AC Contactor:
| A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport |
| C.By Sea: 20-25 Working days at appointed port |
