Home > Products > Cable & Wire Accessories > High Quality 2:1 Ratio 30MM Heat Shrinkable Tube
High Quality 2:1 Ratio 30MM Heat Shrinkable Tube
- Ningbo & Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Good Quality SC Model Full Size 100 Pcs Copper Tube Terminal
-
High Quality SM Series Red Color Low Voltage Standoff Busbar Insulator
-
High Quality Full Size 2:1 Ratio PE Material Colorful Heat Shrinkable Tube
-
High Quality Full Size 100% Nylon Material Expansion Anchor
-
High Quality Full Size 100% Nylon Material Hammer Drive Anchor
-
Flexible Corrugated Conduit,Made In China,ISO9001 Certificate
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Interline & Empty Brand | |
| Model Number | Diameter 1mm 3mm 6mm 8mm | Type | Insulation Sleeving | |
| Material | PE | Application | Low Voltage | |
| Rated Voltage | 220V |
Product Description
Description of Heat Shrinkable Tube & Sleeves:
Product name | PE colorized heat shrink tubes |
Material | PE |
Resistance temperature | 125°C |
Color | Black, yellow, green, blue, red and more |
Function | Detail as follows... |
Unit price | Based on the FOB Shanghai/Ningbo |
Size | Various sizes are available |
Payment terms | 30%T/T deposit, 70%T/T before the delivery |
Principle | Customer first, service foremost. Your satisfaction is our permanent pursuit |
Features for Rohs 2:1 Heat Shrinkable Tube:
1) Material: PVC
2)Shrink ratio: 2:1 (3: 1 and 4:1 available. )
3)Rated Voltage:600V
4)Temperature range:125°C
5)Application:low voltage
6)Type:Insulation Sleeving
7)Packing:we can do any packing according to client’s requirement
8)Standard colors: Black, red, blue, yellow, green, white. Other colors available on request.
9) Environment protection.
10) insulation or jacketing of wire harness, insulation of wire terminals, capsule of electronic components, identification or colorcoding of wires.
11) Special length available on request
Diagrammatic Drawing of shrinkable tube & sleeves:
Data sheet of shrinkable tube & sleeves:
| ltem No. | As Supplied | After Shrinkage | Packing | ||
| Inner Dia(mm) | Thickness | Inner Dia(mm) | Thickness | (Meter/Roll) | |
| Dia-1 | 1 | 0.2±0.05 | 0.5 | 0.4±0.05 | 400 |
| Dia-1.5 | 1.5 | 0.2±0.05 | 0.75 | 0.4±0.05 | 300 |
| Dia-2 | 2 | 0.25±0.05 | 1 | 0.45±0.1 | 200 |
| Dia-2.5 | 2.5 | 0.25±0.05 | 1.25 | 0.45±0.1 | |
| Dia-3 | 3 | 0.25±0.05 | 1.5 | 0.45±0.1 | 100 |
| Dia-3.5 | 3.5 | 0.25±0.05 | 1.75 | 0.45±0.1 | |
| Dia-4 | 4 | 0.25±0.05 | 2 | 0.45±0.1 | |
| Dia-5 | 5 | 0.35±0.05 | 2.5 | 0.55±0.1 | |
| Dia-6 | 6 | 0.35±0.05 | 3 | 0.55±0.1 | |
| Dia-7 | 7 | 0.35±0.05 | 3.5 | 0.55±0.1 | |
| Dia-8 | 8 | 0.35±0.05 | 4 | 0.55±0.1 | |
| Dia-9 | 9 | 0.35±0.05 | 4.5 | 0.55±0.1 | |
| Dia-10 | 10 | 0.35±0.05 | 5 | 0.60±0.1 | |
| Dia-11 | 11 | 0.35±0.05 | 5.5 | 0.60±0.1 | |
| Dia-12 | 12 | 0.35±0.05 | 6 | 0.70±0.1 | |
| Dia-13 | 13 | 0.35±0.1 | 6.5 | 0.70±0.1 | |
| Dia-14 | 14 | 0.35±0.1 | 7 | 0.70±0.1 | |
| Dia-15 | 15 | 0.35±0.1 | 7.5 | 0.70±0.1 | |
| Dia-16 | 16 | 0.35±0.1 | 8 | 0.70±0.1 | |

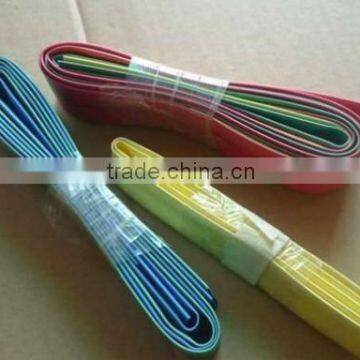

Package of shrinkable tube & sleeves:
