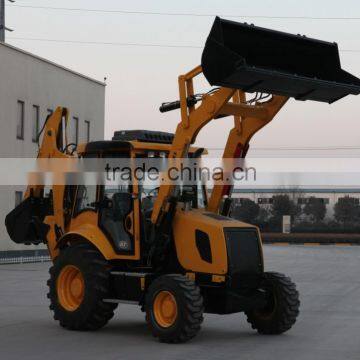

Low fuel consumption Backhoe Loader

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	KATTIER
Model Number	WZ30-25	Place of Origin	Jiangsu, China
Type	Backhoe Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	707723502700	Rated Load	25KN
Warranty	12 months or 2000 hours	After-sales Service Provided	Overseas third-party support available

Backhoe loader
Model:WZ30-25
DEUTZ:WP4G95E221
CARRARO Synchronization shift,electric-hydraulic control
CARRARO braking axle

Backhoe Loader
Model: WZ30-25
DEUTZ TD226B
CARRARO synchronization shift, electric-hydraulic control
CARRARO braking axle

Main Technical Parameters:

Item				Unit	Parameter
Backhoe bucket capacity				m³	0.3
Rated loading bucket capacity				m³	1
Rated Lifting Force				KN	25
Engines rated power/rated speed				KW/r/min	70/2200
Total operating weight				kg	7400
Backhoe turning angle		Left		º	90
		Right		º	90
Backhoe parameter	Max. digging radius			mm	5150
	Max. dump height			mm	3738
	Radius at the max. dump height			mm	1084
	Max. digging radius at ground level			mm	5105
	Digging buckets max. rotating angle			º	180
	Max. digging depth			mm	4340
	Max. digging force			KN	>50
Loading parameter	Max. dump height			mm	2612
	Dump reach at max. dump height			mm	727
	Bucket drawback angle		Transportation position	º	43
			Ground position	º	34
	Dump angle			º	43.5
	Digging depth			mm	191
	Max. breakout force			KN	>40
Max. grade ability				%	16.7
Max. traction power				KN	70
Gear and travel speed	Forward/Backward gear I			km/h	5.9/5.9
	Forward/Backward gear Ⅱ				9.8/9.8
	Forward/Backward gear Ⅲ				21.2/21.2
	Forward/Backward gear IV				39.8/39.8
Min. turning radius				mm	3795
Total length				mm	7077
Total height (Cab)				mm	2700
Max. height for transportation				mm	3424
Total Width				mm	2350
Bucket width				mm	2315

Loading Operation Parameter
Rated Bucket Capacity	1.0m³
Max. Dumping Clearance	2612 mm
Max. Dump reach	727 mm
Dig depth	191 mm
Bucket upward angle at max. working height	63°
Drawback angle at ground pos.	40°
Max. breakout force	>40KN
Rated Lifting Force	25KN
Rise Time	≤5.5s
Fall Time	≤4.5s
Tilting Time	≤1.5s

Excavating Operation Parameter
Rated Backhoe Bucket Capacity	0.3 m³
Max. Digging Depth	4340 mm
Max. Digging Force	>50KN
Max. Digging Radius	5150 mm
Max. Dump Height	3738 mm
Max. Outreach from mid. of Rear Axle	6583 mm
Max. Outreach at the max. dump height	1084 mm
Turning Angle	180°
